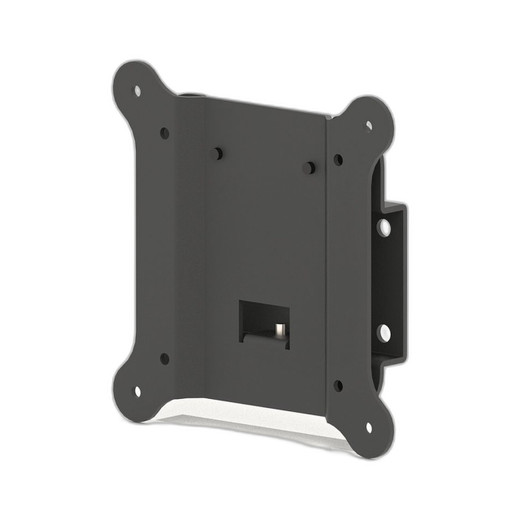

PioneerPOS 16W-M5-101 Wallmount VESA 75 Bracket
Overview
The PioneerPOS 16W-M5-101 is a fixed wall-mount bracket engineered for small-format displays and monitors requiring VESA 75 pattern attachment. The 16W-M5-101 supports both M5 and M7 threaded fasteners, accommodating a range of device mounting hole configurations. White powder-coated finish suits indoor retail, office, and command-center environments. This is a passive mechanical bracket — no power, no electronics — designed for permanent or semi-permanent wall installation where vertical display orientation is required.
Compatibility
The VESA 75 pattern (75 × 75 mm hole spacing) is the smallest standard mounting footprint for flat-panel displays and small industrial monitors. M5/M7 threading accommodates most compact display mounts in this class. Verify your device's VESA pattern and mounting-hole diameter before purchase — VESA 75 is distinct from VESA 100 (100 × 100 mm). The bracket is designed for displays up to approximately 10–24 inches depending on wall structure and load-bearing capacity of your wall anchors or studs.
Installation Notes
Wall mounting requires positive mechanical fastening — use appropriate wall anchors (toggle bolts, molly bolts, or direct stud attachment) rated for the combined weight of the bracket and display. Ensure wall surface is clean, level, and free of electrical wiring or plumbing. The M5 and M7 threaded inserts accept standard metric bolts; use appropriate washers and locking features to prevent vibration-induced loosening in high-traffic environments. Install the bracket before mounting the display for easier positioning and adjustment.
