Middle Atlantic Wall Rack - Steel - Black - Tool-free Quick-mount System FOR Easy - DWR-12-26

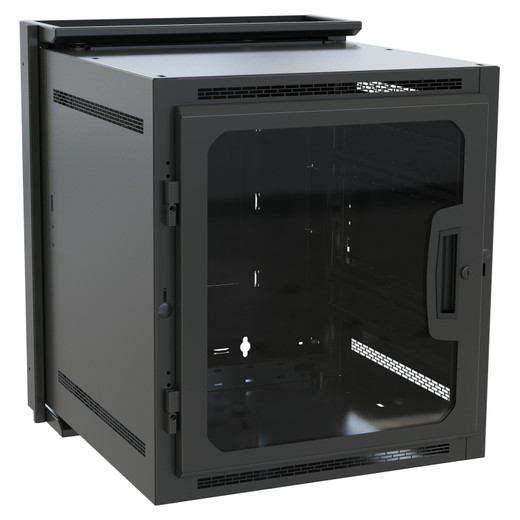

Middle Atlantic DWR-12-26 12U Pivoting Wall Mount Rack

Overview

The Middle Atlantic DWR-12-26 is a 12U steel wall rack built for AV and security equipment installations where floor space is unavailable and gear density is moderate. At 26 inches of total depth with 24 inches of usable depth, it accommodates full-depth NVRs, patch panels, and access control servers without the awkward cable bends you get in shallower swing-out enclosures. The pivoting mechanism is the key differentiator here — the entire rack swings away from the wall, giving a single technician clear rear-cable access without pulling equipment or calling in a second person. If you're specifying wall enclosures for IP camera head-end equipment rooms, server closets, or remote IDF locations, the DWR-12-26 is a practical answer to the "no floor space" constraint common in those environments.

Manufactured in the USA and TAA-compliant, the DWR-12-26 fits federal, state, and municipal procurement requirements without an exception request. The black wrinkle powder coat finish holds up in working technical environments and doesn't show scuffs the way gloss finishes do.

Key Features

• 12U Forward Rackrail Configuration: 12 rack units translates to enough space for an NVR, a managed PoE network switch, a patch panel, and a UPS in a single enclosure — the core of a compact surveillance head-end. Forward rackrail positioning keeps equipment accessible from the front without removing side panels.
• 24-Inch Usable Depth: Most enterprise NVRs and switches run 17–20 inches deep. The 24-inch usable depth (from 26 inches total) clears those without forcing the rack to protrude excessively from the wall. Measure your deepest unit before specifying — this is where shallow swing-outs get integrators in trouble.
• 200 lb UL-Listed Load Capacity: UL-rated for 200 lbs of equipment weight, which is meaningful when you're stacking a multi-drive NVR, a switch with copper cabling, and a battery backup in one enclosure. This isn't a marketing estimate — it's a UL-listed load figure (patent number listed on the UL listing).
• Pivoting Wall Mount Design: The rack swings away from the wall on its mount, enabling single-technician rear access without removing any installed equipment. For closet installs where rear clearance is otherwise zero, this is the difference between a 10-minute cable swap and a two-hour equipment pull.
• Seismic Rated: The DWR-12-26 carries seismic certification, making it suitable for deployments in earthquake zones (California, Pacific Northwest, parts of the Southeast) where jurisdictions require seismic compliance for wall-mounted equipment. Confirm local code requirements — seismic certification alone doesn't substitute for a structural engineer's sign-off on the wall anchor points.
• TAA Compliant, Made in USA: Built domestically and TAA-compliant from the source, which satisfies GSA Schedule procurement and most federal agency IT purchasing requirements without additional paperwork. Confirm with your contracting officer for agency-specific interpretations.
• Steel Construction with Black Wrinkle Powder Coat: Cold-rolled steel provides structural rigidity at the 200 lb load rating. The wrinkle powder coat is a practical finish for technical environments — minor contact marks don't show the way smooth gloss does, and the finish holds up to repeated access better than painted finishes on cheaper enclosures.
• Forward Compatible Design: Middle Atlantic's forward-compatible platform means accessories and mounting hardware from the current Middle Atlantic rack product line will continue to fit as the product line evolves — relevant when you're standardizing on a single rack family across a multi-site deployment and need to reorder accessories years down the road.

Integration & Compatibility

The DWR-12-26 accepts standard 19-inch rackmount equipment via its forward rackrail. With 24 inches of usable depth, it fits most 1U–2U NVRs, managed switches, access control servers, and patch panels from any manufacturer. The enclosure ships without a front door — if your installation requires a lockable front panel for compliance or physical security, source a compatible door accessory from the Middle Atlantic wall rack accessory line. The rack does not include a rear door; rear access is handled via the pivot-away mounting mechanism.

For security system head-ends, this enclosure pairs well with compact network video recorders and the associated switching infrastructure. The 12U height is sufficient for most small-to-mid-site surveillance equipment stacks when rack-mount power distribution is also included. For larger sites requiring 16U or more, evaluate the deeper or taller variants in the DWR family rather than stacking enclosures.

Wall anchor requirements depend on your wall construction type. The 61.5 lb empty rack plus up to 200 lbs of equipment means the mounting surface and fasteners must handle over 260 lbs. Concrete or steel stud mounting is strongly preferred. Consult a structural engineer for drywall-only installations or any jurisdiction requiring formal sign-off on wall-mounted equipment.

Frequently Asked Questions

Q: What is the usable rack depth of the DWR-12-26?

A: The DWR-12-26 has 24 inches (61 cm) of usable depth inside the enclosure. Total external depth is 26 inches. This accommodates most full-depth 1U–2U NVRs and managed switches without issue.

Q: Is the DWR-12-26 TAA compliant?

A: Yes. The DWR-12-26 is TAA compliant and manufactured in the USA, making it suitable for GSA Schedule procurement and federal, state, and municipal purchasing requirements that mandate TAA compliance.

Q: What is the load capacity of the DWR-12-26?

A: The DWR-12-26 is UL-listed for 200 lbs (90.7 kg) of equipment load. This is a UL-rated figure, not a manufacturer estimate.

Q: Is the DWR-12-26 seismic rated?

A: Yes, the DWR-12-26 carries seismic certification. However, seismic rating on the enclosure does not replace a structural engineer's assessment of your wall anchor points and mounting surface — confirm local code requirements for your jurisdiction.

Q: Does the DWR-12-26 come with a front door?

A: No. The DWR-12-26 ships without a front door. If your installation requires a lockable or secured front panel, source a compatible door accessory from the Middle Atlantic wall rack accessory line.

Q: Can one person install and service the DWR-12-26?

A: The pivoting wall mount design is specifically intended to allow one-person rear cable access — the rack swings away from the wall without requiring equipment removal. Initial mounting of the empty enclosure (61.5 lbs) is also manageable for a single installer, though two people are recommended for safe wall anchoring.

Jerry Tildsen

The spec I keep coming back to on the DWR-12-26 is the 200 lb UL-listed load rating paired with only 61.5 lbs of empty enclosure weight. That ratio tells you this is engineered for real equipment density — not a light-duty swing-arm bracket dressed up as a rack. I've specified this enclosure on multi-site security deployments where the head-end room is a converted closet and floor space is simply not available.

Technical Highlights:

• 24-Inch Usable Depth: Two inches of clearance lost to structure (26 in total, 24 in usable) is a reasonable trade-off. Most 1U NVRs and managed switches I see in the field run 16–19 inches — you have room to spare for cable management without compressing rear terminations.
• Seismic Certification: The DWR-12-26 carries seismic certification, which is a hard requirement in California and increasingly enforced in the Pacific Northwest. It won't get you past a structural engineer's wall-anchor review, but it checks the enclosure compliance box before you ever get to that conversation.
• TAA / Made in USA: Federal and state procurement on security projects frequently requires TAA and domestic manufacture. The DWR-12-26 satisfies both without a waiver — straightforward for GSA Schedule or cooperative purchasing contract orders.

Deployment Considerations:

• The pivot mechanism earns its keep in closet installs where rear wall clearance is 0–2 inches. Budget time for the initial wall anchor layout — with 200 lbs of potential equipment load on top of the 61.5 lb enclosure, your anchor pattern into the structural member matters. Concrete or steel stud is the correct substrate; drywall anchors are not appropriate for this load class.
• No front door is included. If the installation is in a shared space or requires physical access control to the gear, order the compatible door accessory separately before your first site visit — retrofitting after cable dressing is a frustration you can avoid.

The DWR-12-26 (often searched as DWR 12 26) is the right call for IDF closets, security head-end rooms, and remote equipment locations in school, municipal, or commercial office deployments where you need full-depth NVR and switching infrastructure on the wall, TAA compliance is mandatory, and single-technician service access is a real operational requirement — not a wish-list item.
