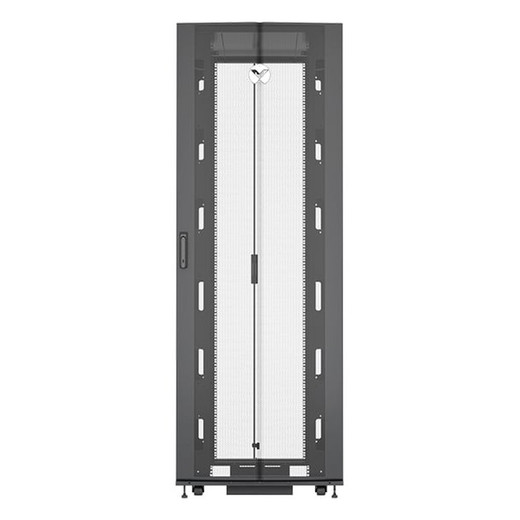

Vertiv VR3357-006 Rack Cabinet
Overview
The Vertiv VR3357-006 is a 48U, 800mm wide, 1200mm deep rack cabinet designed for high-density IT deployments. It provides a secure, organized, and thermally efficient environment for servers, network switches, and other rack-mount equipment. This cabinet is suitable for data centers, colocation facilities, and enterprise network rooms where space and thermal management are critical. The VR3357-006 model offers substantial vertical mounting space for extensive equipment configurations.
Compatibility
This rack cabinet is designed to accommodate standard 19-inch rack-mount equipment. It is compatible with a wide range of servers, network switches, UPS units, and other IT hardware from major manufacturers. The 1200mm depth is ideal for housing deeper server chassis and network appliances, ensuring adequate cable management and airflow behind the equipment. The 800mm width provides extra space for cable routing and airflow compared to standard 600mm cabinets.
Installation Notes
Ensure the floor can support the maximum load capacity of the cabinet when fully populated. The cabinet requires a minimum clearance of 1200mm behind it for door swing and cable access. Ensure proper grounding connections are made to all installed equipment and the cabinet frame for safety and EMI/RFI mitigation. The cabinet ships unassembled; assembly requires two technicians and basic hand tools. Torque specifications for mounting hardware should be followed as per the installation manual to ensure structural integrity.
What's in the Box
- 1x Vertiv VR3357-006 Rack Cabinet Frame
- 4x Vertical Rack Mounting Rails (pre-installed)
- 2x Side Panels (split, removable)
- 1x Front Door (perforated, reversible)
- 1x Rear Door (split, perforated, reversible)
- 1x Top Panel (with cable entry knockout)
- 4x Leveling Feet
- 4x Casters
- 1x Grounding Kit
- 1x Hardware Kit (cage nuts, M6 screws, washers)
