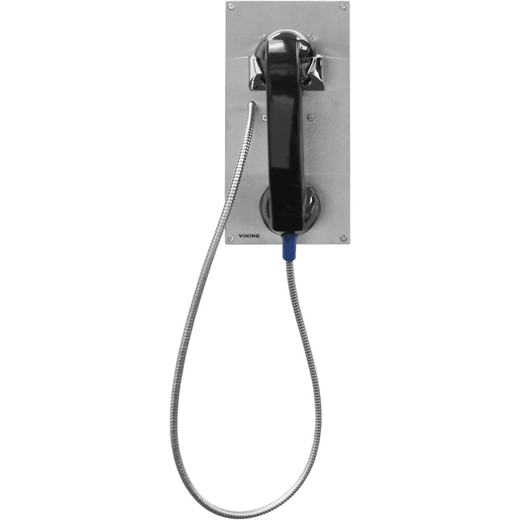

Viking K-1900-7-IP VoIP Panel Phone IP66 PoE Vandal Resistant

Viking Electronics K-1900-7-IP Vandal Resistant VoIP Panel Phone with Auto Dialer and Relay Control

The Viking Electronics K-1900-7-IP is a SIP-based panel phone engineered for high-abuse, all-weather installations — think correctional facility corridors, outdoor emergency call stations, parking structures, and industrial entry points where a standard intercom or consumer-grade phone would fail within a season. Built from 14-gauge 316 stainless steel with permanent laser-etched graphics, this unit is meant to stay readable and functional under conditions that destroy ordinary hardware.

Overview

The K-1900-7-IP auto-dials a programmable 1–20 digit number each time the handset is lifted, making it a hands-off emergency or access-point phone — no keypad to vandalize, no menu to navigate. It registers on any SIP 2.0 (RFC3261) compliant PBX or hosted VoIP platform, draws power over a standard 802.3af PoE port at under 4 watts, and connects via a single CAT5e/6 run. For integrators already deploying IP infrastructure, this is a one-cable install. Explore the broader Viking Electronics intercom and panel phone line if you need companion entry or paging hardware.

Key Features

• 14-Gauge 316 Stainless Steel Construction: Grade 316 (marine-grade) stainless resists chlorides and industrial solvents — the right call for coastal installations, food processing facilities, or any environment where 304 stainless would corrode prematurely. Laser-etched graphics won't peel or fade under UV or chemical cleaning.
• IP66 Ingress Protection: Rated for direct water jets and total dust exclusion. The EWP variant adds foam rubber gaskets, sealed connections, and gel-filled butt connectors for environments where condensation or wash-down is routine — up to 100% humidity vs. the standard unit's 5–95% non-condensing rating. Match the variant to your environment before ordering.
• PoE Class 1 Power (under 4W): Draws less than 4 watts from an 802.3af port — the lowest PoE class. A 48-port budget switch with a 185W PoE budget can power 46 of these simultaneously without breaking a sweat. No local power supply, no additional conduit run. Pair with a managed PoE switch for centralized power management.
• SIP 2.0 / G.711u / G.711a / G.722 Audio: Standard SIP registration means this drops into Cisco, Avaya, FreePBX, 3CX, or any hosted UCaaS platform without a proprietary gateway. G.722 wideband codec delivers noticeably cleaner audio in noisy industrial environments compared to narrowband G.711 — relevant when background machinery noise is an issue.
• Auto-Dial with Relay Control: Programmable 1–20 digit dial string fires on handset lift. Relay output enables door strike or gate control directly from the phone — one device handles both the voice call and the physical access event. Review access control integration options if you need multi-door or credential-based control alongside this unit.
• -40°F to 140°F Operating Range: Genuine cold-climate and high-heat tolerance. An unheated parking garage in Minnesota in January or a rooftop equipment room in Arizona in August both fall within spec. This is the rating to check first for any uncontrolled-environment installation.
• Armored Handset Cable (34–37 inches): Stainless-armored cable resists cut attempts and repeated mechanical abuse. The heavy-duty metal hook switch is rated for high-cycle use — appropriate for a public-access phone that may see hundreds of lifts per day.
• Heavy-Duty T-10 Security Torx Fasteners: Tamper-resistant hardware requires a T-10 Security Torx driver for access — keeps casual vandals and unauthorized personnel out of the enclosure without a padlock or secondary housing.

Integration and Compatibility

The K-1900-7-IP registers as a standard SIP endpoint. It supports 100BASE-Tx via a single RJ45 connection with three gel-filled butt connectors for field splices. FCC Part 15, ICES-003 Class A, and CE marks confirm regulatory compliance for US and Canadian deployments. For SIP trunk configuration, any RFC3261-compliant PBX handles registration without special provisioning. This unit does not include a built-in video element — pair with a dedicated IP intercom with video if visual verification at the door is required. See the VoIP panel phone category for related Viking models if coverage or form factor needs differ.

Frequently Asked Questions

Q: Does the K-1900-7-IP work with any SIP-based PBX or hosted VoIP platform?

A: Yes. The K-1900-7-IP complies with SIP 2.0 (RFC3261), so it registers on any standards-compliant platform — Cisco, Avaya, 3CX, FreePBX, and hosted UCaaS systems are all compatible without a proprietary gateway.

Q: What is the difference between the standard K-1900-7-IP and the EWP variant?

A: The EWP (Extreme Weather Protection) variant adds foam rubber gaskets, sealed connections, and gel-filled butt connectors, raising humidity tolerance from 5–95% non-condensing to up to 100%. Physical depth increases slightly from 4.97 inches to 5.1 inches. Choose EWP for wash-down environments, coastal exposure, or any location with condensation risk.

Q: How much PoE power does the K-1900-7-IP draw?

A: Under 4 watts — PoE Class 1, the lowest classification. A standard 802.3af port handles it easily, and the low draw means even modest switches can support multiple units without approaching their power budget limits.

Q: What audio codecs does the K-1900-7-IP support?

A: G.711u, G.711a, and G.722. G.722 is the wideband codec that delivers higher audio clarity — useful in noisy industrial or outdoor environments where G.711 narrowband can make speech hard to understand over background noise.

Q: Can the K-1900-7-IP control a door strike or gate directly?

A: Yes. The unit includes relay control output that can trigger a door strike or gate release, so a single device handles both the voice call and the physical access event without a separate relay module.

Q: What are the panel dimensions and mounting footprint?

A: The front panel measures 5.0 inches wide by 10.0 inches tall. Depth is 4.97 inches on the standard unit and 5.1 inches on the EWP variant. Shipping weight is 3.8 lbs.

Ted Perry

The K-1900-7-IP is one of those products that earns its keep specifically because of where you install it — the -40°F to 140°F operating range and IP66 rating aren't marketing numbers here, they're the engineering decisions that make this unit viable in uncontrolled environments where a softphone or consumer ATA would fail inside a year. I've specified it for correctional facilities, industrial entry points, and outdoor emergency call stations where the question isn't whether the phone will get abused, but whether it will still work after it does.

Technical Highlights:

• PoE Class 1 (<4W): Draws under 4 watts on a standard 802.3af port — you can run dozens of these on a mid-range switch without pressure on the power budget. No local transformer, no separate conduit for power.
• 316 Stainless / Laser-Etched Graphics: Marine-grade 316 stainless holds up to chlorides and industrial cleaners that attack 304. Laser etching means the labeling survives chemical wipe-downs and UV indefinitely — critical for a device expected to last 10+ years on a wall.
• G.722 Wideband Audio: The wideband codec is a real differentiator in high-noise environments — machinery, HVAC, traffic — where G.711 narrowband makes conversation difficult. Verify your PBX supports G.722 passthrough before provisioning.

Deployment Considerations:

• The standard and EWP variants share the same 5.0 x 10.0-inch panel footprint, so rough-in and backbox sizing is identical — but confirm which variant you're ordering before the backbox goes into concrete. The EWP adds 0.13 inches of depth (5.1 vs 4.97 inches) which matters in flush-mount applications.
• Relay control handles door strike or gate output directly, but this is a single-relay device — if you need multi-door sequencing, credential enrollment, or audit logging, you need a dedicated access control panel alongside it, not instead of it.

The K-1900-7-IP (often searched as K 1900 7 IP) is the right specification for outdoor or industrial emergency call stations, prison/detention facility corridors, parking structure entry columns, and any location where the phone must survive both the environment and intentional abuse without a housing or protective enclosure around it.
