Viking E-1600-03-IPEWP IP66 VoIP ADA Emergency Phone PoE

Viking Electronics E-1600-03-IPEWP VoIP ADA Emergency Phone with Enhanced Weather Protection

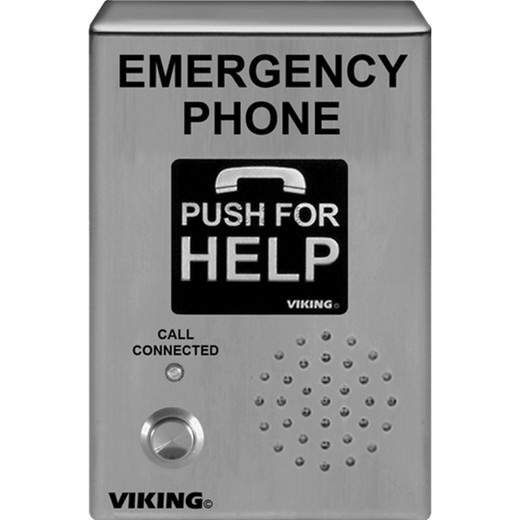

The Viking Electronics E-1600-03-IPEWP is a surface-mount, handsfree SIP VoIP emergency phone engineered for harsh outdoor and industrial environments where reliable one-touch communication is non-negotiable. Built to IP66 and rated from -40°F to 140°F, with Enhanced Weather Protection (EWP) that handles up to 100% humidity, this unit belongs in covered parking structures, loading docks, remote campus buildings, and any location where standard weatherproofing falls short. It runs entirely on PoE Class 1, drawing under 4 watts — no separate power supply, no conduit for 120V, just a single Cat5e run.

Why This Phone Fits Demanding Sites

Most emergency phones stop at IP54 or IP55. The Viking Electronics emergency phone lineup addresses environments where wind-driven rain, pressure washing, or condensation cycling would kill lesser enclosures. The EWP designation on the E-1600-03-IPEWP specifically extends humidity tolerance to 100% — meaningful in cold-storage vestibules, wash-down bays, and coastal installations where condensation is constant.

Key Features

• IP66 with EWP (up to 100% humidity): Standard IP66 blocks water jets but stops short of saturated-air environments. The EWP rating closes that gap — deploy in freezer entry corridors or covered outdoor walkways without worrying about internal condensation degrading PCB life.
• PoE Class 1 (<4W): Draws under 4 watts from a standard 802.3af port. A single 8-port 802.3af switch can drive this phone alongside seven other devices without exceeding the switch's power budget. No AC power run needed — simplifies conduit planning on retrofit installs.
• Operating range -40°F to 140°F: This covers unheated northern parking structures in January and rooftop equipment rooms in July. Most SIP endpoint specs stop at 14°F (-10°C); this unit handles a 180°F operational swing.
• 95 dB SPL @ 1m maximum output: Loud enough to cut through traffic noise, HVAC roar, or loading dock activity. In a noisy industrial environment, 95 dB at one meter means the speaker is still intelligible at several meters in ambient noise conditions typical of warehouses.
• G.711u, G.711a, G.722 audio codecs: G.722 delivers wideband audio (7kHz vs. 3.4kHz for G.711) — clearer voice quality when the SIP server supports it. Falls back to G.711 for compatibility with legacy systems, so you are not locked into a specific PBX generation.
• SIP 2.0 / RFC 3261 compliant: Integrates with any standards-based SIP PBX or call manager — Cisco, Avaya, FreePBX, 3CX, and equivalent platforms — without proprietary gateways. Pair with VoIP phone systems already deployed on site.
• ADA compliant: Meets ADA requirements for emergency communication — relevant for public-access facilities, universities, and any site subject to ADA enforcement. Removes a compliance checkbox from the project.
• Relay contacts (2A): Onboard relay output supports door strike, gate, or strobe trigger on call — useful in access-controlled vestibules where the emergency phone doubles as an entry request station.
• Vandal-resistant stainless steel housing: Surface-mount profile at 5.0 x 5.0 x 2.25 inches fits standard single-gang or custom backboxes. Stainless construction resists impact and corrosion in high-traffic or unsupervised locations. See the emergency phone category for housing comparisons.
• Three gel-filled butt connectors included: Gel-filled connections are the correct termination method for outdoor and damp-location Cat cable splices — prevents moisture wicking into the conductor bundle that degrades signal over time.

Integration and Compatibility

The E-1600-03-IPEWP connects via a single RJ-45 10/100Base-T port. SIP 2.0 RFC 3261 compliance means it registers as a standard SIP endpoint on any compliant call manager. IEEE 802.3af PoE eliminates separate power infrastructure. For sites deploying access control systems, the 2A relay output can trigger electric strikes or notification devices directly from the phone's call logic. Regulatory compliance covers CE, FCC Part 15, and Canada ICES-003 Class A — suitable for US and Canadian deployments without additional certification work.

Frequently Asked Questions

Q: Does the E-1600-03-IPEWP require a dedicated power supply?

A: No. It runs on IEEE 802.3af PoE Class 1, drawing under 4 watts. Any 802.3af-capable switch port or midspan injector will power it. No separate AC power supply or transformer is needed.

Q: What is the difference between the standard IP66 rating and the EWP designation?

A: IP66 covers solid particle exclusion and resistance to powerful water jets. The Enhanced Weather Protection (EWP) rating on the E-1600-03-IPEWP extends humidity tolerance to 100%, addressing saturated-air environments such as freezer entries, wash-down areas, and coastal outdoor installations where condensation cycling can penetrate standard IP66 enclosures over time.

Q: Is this phone ADA compliant?

A: Yes. The E-1600-03-IPEWP is ADA compliant, making it suitable for public-access facilities, university campuses, and commercial properties subject to ADA emergency communication requirements.

Q: What SIP platforms does the E-1600-03-IPEWP work with?

A: It complies with SIP 2.0 RFC 3261 and connects to any standards-based SIP call manager or PBX — including Cisco, Avaya, 3CX, FreePBX, and equivalent platforms — without proprietary gateways or licenses.

Q: Can the relay output trigger a door strike or gate?

A: Yes. The onboard relay contacts are rated at 2 amps and can be wired to electric strikes, electromagnetic locks, gates, or notification devices to trigger on call activity.

Q: What is the operating temperature range?

A: -40°F to 140°F (-40°C to 60°C), covering unheated northern parking structures in winter through rooftop equipment rooms in summer.

Ted Perry

The spec that drives most of my recommendations on the E-1600-03-IPEWP is the EWP humidity rating — up to 100% vs. the standard non-condensing 5–95% on typical IP66 enclosures. In cold-storage facilities and covered coastal structures, that gap is where phones fail silently over an 18-month period, not on day one. This unit is built to stay functional in those conditions.

Technical Highlights:

• EWP 100% humidity tolerance: Closes the gap standard IP66 leaves open in condensation-cycling environments — freezer vestibules, wash-down bays, and coastal covered installations where moisture migrates into sealed enclosures over time.
• PoE Class 1 (<4W): At under 4 watts, you can run this phone from any 802.3af port with budget left for cameras and access readers on the same switch. No separate power circuit, no junction box for AC — single Cat5e pull does everything.
• 95 dB SPL @ 1m: That output level cuts through industrial ambient noise. In a loading dock running forklifts and HVAC, 95 dB at one meter gives you intelligible audio at operating distances without shouting into the speaker.

Deployment Considerations:

• The E-1600-03-IPEWP is surface-mount only at 5.0 x 5.0 x 2.25 inches — confirm your backbox or surface conduit rough-in matches before ordering. Flush-mount installs require a different model in the series.
• G.722 wideband audio requires the SIP server to negotiate it — verify your call manager supports G.722 if audio clarity is a priority. Systems limited to G.711 will still function but at narrowband quality.

This unit is the correct choice for university blue-light stations, covered parking exit lanes, and cold-chain facility entry points where environmental durability and SIP interoperability both matter — not general indoor lobbies where a standard IP-rated phone does the job for less.
