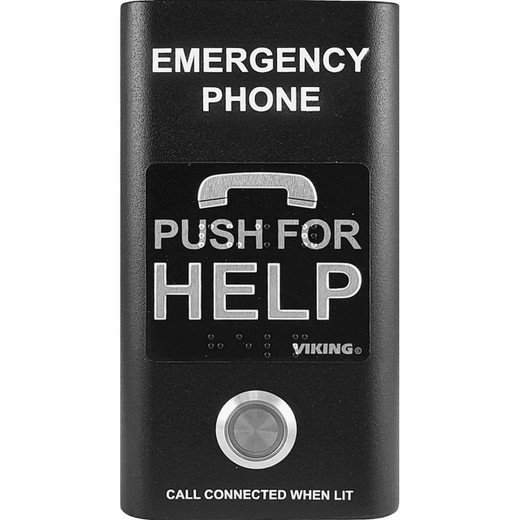

Viking E-1600-BK-IPEWP PoE VoIP Emergency Phone IP66 ADA

Viking Electronics E-1600-BK-IPEWP Compact ADA-Compliant VoIP Emergency Phone with Enhanced Weather Protection

Overview

The Viking Electronics E-1600-BK-IPEWP is a compact, handsfree SIP VoIP emergency phone engineered for outdoor and harsh-environment installations where reliable one-touch communication is non-negotiable. Built around IEEE 802.3af PoE Class 1 power delivery and a full SIP 2.0 (RFC3261) stack, it drops cleanly onto any modern IP infrastructure without a separate power supply or proprietary controller. The black finish and ADA-compliant form factor make it equally suited to public-facing entryways, parking structures, elevator lobbies, and industrial perimeters. If you're specifying an emergency VoIP phone for a location that sees rain, condensation, or temperature extremes, the E-1600-BK-IPEWP is the variant to reach for — the Enhanced Weather Protection (EWP) designation means it's rated to handle 100% humidity where the standard E-1600-BK-IP tops out at 95% non-condensing.

Key Features

• PoE Class 1 Power (<4W): Drawing under 4 watts via standard 802.3af, this phone won't stress your switch's per-port power budget. No dedicated power run, no transformer — just an RJ45 to an existing PoE port and you're done. On a 370W 24-port switch already loaded with PoE cameras, adding a handful of these phones barely registers.
• IP66 Ingress Protection: IP66 means the enclosure is fully sealed against dust and withstands direct high-pressure water jets — practical protection for building exteriors, covered parking, and loading docks. This isn't splash-resistant; it's designed for rain and hose-down environments. For full submersion you'd need IP67 or higher, but for surface-mounted outdoor emergency phones IP66 is the right call.
• Enhanced Weather Protection — Up to 100% Humidity: The EWP variant handles fully saturated air, making it the correct choice for coastal installations, car washes, cold-storage entry points, or anywhere that sees sustained condensation. The standard model's 95% non-condensing limit will cause problems in those environments; this one won't.
• Operating Range: -40°F to 140°F (-40°C to 60°C): That's a 180°F swing — broad enough to cover unheated northern outdoor structures in January and sun-baked equipment cabinets in the Southwest in August. Most VoIP endpoints fail below 32°F or above 122°F; this unit's rated range is a genuine differentiator for year-round outdoor deployment.
• 95 dB SPL Maximum Sound Output: At 1 meter, 95 dB is loud enough to cut through moderate ambient noise — a busy parking deck, a loading dock with forklifts idling nearby. It won't replace a PA system in a stadium, but for a one-to-one emergency call in a noisy exterior environment, the output level is adequate without requiring external speakers.
• Audio Codecs G.711u, G.711a, G.722: G.711 is the standard narrowband codec supported by virtually every SIP PBX and SIP trunk provider, so interoperability is a non-issue. G.722 adds wideband audio (7 kHz vs. 3.4 kHz) — cleaner voice intelligibility on newer Cisco, Avaya, or Asterisk deployments that support it. You don't have to configure anything special; the phone negotiates automatically.
• 2 Amp Relay Contacts: The onboard relay lets you wire a door strike, gate controller, or auxiliary alarm directly to the phone. In a staffed-lobby or parking-gate scenario, the operator answers the call and triggers the door release from the same SIP session — no secondary system required. At 2A, the relay handles most low-current strikes and magnetic locks directly.
• Three Gel-Filled Butt Connectors: The connection kit includes gel-filled butt connectors alongside the single RJ45, which matters for outdoor runs where wire terminations are exposed to moisture ingress. Gel fill prevents corrosion at the splice — a small spec item that prevents a lot of callbacks.
• SIP 2.0 RFC3261 Compliance: Native SIP means this unit registers directly on Cisco Unified Communications Manager, Avaya Aura, 3CX, Asterisk/FreePBX, Microsoft Teams (via SIP gateway), or any standards-compliant platform. No gateway adapters, no analog converters. For facilities consolidating to a single VoIP infrastructure, that's a clean integration path.
• Automatic Polling and Programming Software: Viking includes polling and programming software with the unit. For multi-site deployments this means you can configure and monitor phones remotely rather than walking every device — meaningful when you're commissioning dozens of emergency phones across a campus or managing a distributed portfolio of properties.
• CE, FCC Part 15, and Canada ICES-003 Class A Compliance: Covers US, Canadian, and European regulatory environments. If your project spans multiple jurisdictions or the AHJ requires documented RF compliance, these certifications are already in place.

Integration and Compatibility

The E-1600-BK-IPEWP connects via a single RJ45 (10/100 Base-T) to any PoE-capable switch port running 802.3af. SIP 2.0 RFC3261 registration works with the full range of enterprise and mid-market IP PBX platforms. The G.711u/G.711a/G.722 codec set covers standard SIP trunk interoperability. The 2A relay output integrates directly with door-strike controllers or access panels — pair it with an access control panel to give the security desk a single interface for answering calls and releasing doors. Automatic programming software supports bulk provisioning; consult Viking's documentation for TFTP/HTTP auto-provisioning parameters if you're pushing configs from a central server. The ADA-compliant design satisfies accessibility requirements for publicly accessible emergency communication points under applicable building codes.

Frequently Asked Questions

Q: What is the difference between the E-1600-BK-IPEWP and the E-1600-BK-IP?

A: The E-1600-BK-IPEWP is the Enhanced Weather Protection variant. The standard E-1600-BK-IP is rated to 95% non-condensing humidity. The EWP model handles up to 100% humidity and is the specified choice for outdoor installations exposed to precipitation, condensation, or sustained moisture. Both share the same IP66 rating, PoE Class 1 power, and SIP 2.0 feature set.

Q: Does the E-1600-BK-IPEWP require a separate power supply?

A: No. The unit draws power via IEEE 802.3af PoE Class 1 (under 4 watts) directly from the network switch. No separate transformer or power injector is needed as long as your switch port delivers 802.3af PoE — which is standard on virtually all modern managed PoE switches.

Q: Will the E-1600-BK-IPEWP work with my existing SIP PBX?

A: The phone is SIP 2.0 RFC3261 compliant and supports G.711u, G.711a, and G.722 codecs. It is compatible with any standards-compliant SIP platform, including Cisco Unified Communications Manager, Avaya Aura, Asterisk, FreePBX, and 3CX. Proprietary or non-SIP systems may require a gateway.

Q: What is the operating temperature range of the E-1600-BK-IPEWP?

A: The unit is rated from -40°F to 140°F (-40°C to 60°C), making it suitable for unheated outdoor enclosures in cold climates and direct sun exposure in hot climates without supplemental heating or cooling.

Q: Can the E-1600-BK-IPEWP control a door strike or gate?

A: Yes. The phone includes a 2 Amp relay contact output that can be wired directly to a door strike, magnetic lock, or gate controller. The relay is actuated during a call, allowing an operator to remotely release a door or gate from the SIP session without a separate access control integration.

Q: Is the E-1600-BK-IPEWP ADA compliant?

A: Yes. Viking Electronics specifies ADA compliance for the 1600-IP series, including the E-1600-BK-IPEWP. It is also CE and FCC Part 15 / Canada ICES-003 Class A certified.

Marty Allison

The spec that drives most of my E-1600-BK-IPEWP recommendations is the humidity ceiling: 100% versus the standard model's 95% non-condensing. That gap looks minor on paper but it's the difference between a phone that survives a coastal parking structure in November and one that starts dropping calls after the first foggy week. If you're in a reliably dry interior environment, the standard variant saves a few dollars. If there's any doubt, specify the EWP.

Technical Highlights:

• PoE Class 1 (<4W): At under 4 watts, you can power this unit from any 802.3af port — including the low-wattage budget ports on access-layer switches. No need to reserve a high-power port or add a mid-span injector.
• Operating Temperature -40°F to 140°F: Most of the competition bottoms out at 14°F or 23°F. The -40°F floor means this unit works in an unheated stairwell in Minnesota in February without a heater element — a real installation cost reduction on cold-climate campus projects.
• 2A Relay Contact: Pairing the relay to a door strike turns this into a basic video-intercom alternative for low-traffic entries — call comes in, operator confirms identity by voice, triggers the relay, done. No separate access control panel required for simple one-door scenarios.

Deployment Considerations:

• The gel-filled butt connectors supplied with the unit are the right termination method for direct-buried or conduit runs that see moisture. Do not substitute with standard crimp connectors on outdoor runs — water wicks into the splice and corrodes the connection within a season.
• The 100BASE-Tx network connection means you're capped at 100 Mbps — irrelevant for a VoIP endpoint, but flag it if your infrastructure team expects Gigabit continuity through the jack. Run a separate data port if needed; don't daisy-chain.

The E-1600-BK-IPEWP (often searched as E 1600 BK IPEWP) is the right specification for university blue-light emergency stations, parking structure call points, and industrial perimeter entry phones where the installation sees real weather year-round and the operator needs relay-based door control without a second system.
