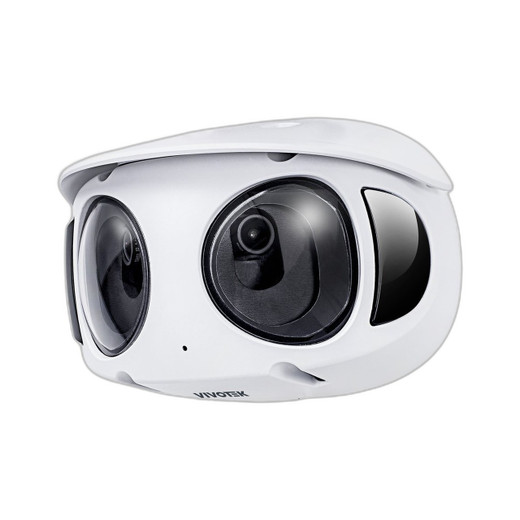

Vivotek Vortex MS930 EHV (8MP) Outdoor WDR Pro Fixed Microphone IP Camera

MSRP: $1,849.00

Add to Cart for Sale Price!

$1,299.99
Adding to cart… The item has been added
SKU: MS930-EHV
UPC: 4710470000000
Availability: Usually Ships Same Business Day
Warranty: 5 Year Warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Vivotek Vortex MS930 EHV (8MP) Outdoor WDR Pro Fixed Microphone IP Camera

MSRP: $1,849.00

Add to Cart for Sale Price!

$1,299.99

Vivotek Vortex MS930 EHV (8MP) Outdoor WDR Pro Fixed Microphone IP Camera

MSRP: $1,849.00

Add to Cart for Sale Price!

$1,299.99
Description

The Vivotek Vortex MS930 EHV is an advanced 8MP outdoor IP camera with exceptional surveillance capabilities in diverse environmental conditions. Equipped with WDR Pro technology, this camera captures highly detailed images in contrasting light conditions, ensuring clarity in bright and shaded areas. Its fixed microphone feature enhances the overall security system by providing audio capture alongside high-resolution video, critical for comprehensive scene analysis and incident verification. Ideal for securing perimeters, parking facilities, and expansive outdoor areas, the Vortex MS930 EHV stands out for its robust performance and reliability in harsh weather conditions.

Key Features

  • 8 Megapixel Resolution: Offers ultra-high-definition video for clear, detailed surveillance footage.
  • WDR Pro: Enhances image quality under varied lighting by balancing bright and dark segments.
  • Built-in Microphone: Captures audio for enhanced situational awareness and security.
  • Outdoor Durability: IP66-rated for water and dust resistance, suitable for all-weather usage.
  • H.265 Compression: Reduces storage and bandwidth requirements while maintaining top video quality.
  • PoE Support: Simplifies power and data connection with a single network cable, facilitating easier installation.
  • IR Night Vision: Provides clear imaging in low light conditions up to 30 meters.
  • Real-Time Alerts: Motion detection and tampering alerts to ensure proactive security measures.

Compatibility

  • Connectivity: Wired connectivity with PoE for reliable and continuous power supply and data transmission.
  • System Integration: ONVIF compliant for compatibility with a broad range of network video recorders and surveillance systems.
  • Storage Options: Includes an onboard MicroSD card slot to ensure data integrity and provide local storage solutions.

Package Contents

  • Vivotek Vortex MS930 EHV Camera
  • Mounting Kit
  • Waterproof Connector
  • Quick Installation Guide
  • Software CD
  • Warranty Card

Summary

The Vivotek Vortex MS930 EHV exemplifies cutting-edge outdoor surveillance technology with its 8MP high-resolution imaging and integrated audio recording. This camera is particularly suited for users seeking robust performance in outdoor settings, providing dependable surveillance that captures every detail necessary for comprehensive security management. With its advanced imaging technologies and environmental durability, the Vortex MS930 EHV is a standout choice for enhancing outdoor security infrastructures.

Specifications
Image Sensor: 1/2.7" Progressive CMOS
Resolution: HD 4864 x 1632 (8MP), SD 2432 x 816
Lens Type: Fixed focal
Focal Length: f= 2.8 mm
Aperture: F1.2
Iris: Fixed iris
Field of View: 180° (Horizontal)/ 50° (Vertical)/ 180° (Diagonal)
Camera Movement: Tilt: 20°
Shutter Speed: 1/30 sec. to 1/32,000 sec.
Day/Night: Yes
IR Cut Filter: Yes
IR Range: 20 meters
Minimum Illumination: 0.018 lux @ F1.2 (Color), 30IRE
Onboard Storage: MicroSD/SDHC/SDXC card slot (Bulit in 512GB industrial SDCard)
Frame Rate: 15FPS
Video Streaming Settings: HD 4864 x 1632 (8MP)@15fps 3Mbps upload, SD 2432x 816@15fps 400Kbps upload
Audio: One way Audio
Interface: Built in microphone
Effective Range: 5 meters
Audio detection: Yes
Tampering detection: Yes
People Analytics: Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re Search
Vehicle Analytics: Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re Search
Object Analytics: Unattended object detection, Missing object detection
Power input: IEEE 802.3at PoE Class 4
Power Consumption: Max: 20W / 13.5W (IR on/ IR off)
Connectivity: RJ 45 cable connector for 10/100 Mbps PoE network connection
RTSP: WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users: Up to 6 clients, *Live viewing for 6 clients, *live viewing up to 4 clients and playback 2 clients)
Security: Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption
Interface: 10 Base T/100 Base TX Ethernet (RJ 45)
Operating Temperature: Starting Temperature: 30°C ~ 55°C ( 22°F ~ 131°F), Working Temperature: 40°C ~ 50°C ( 40°F ~ 122°F) (IR on)
Humidity: 90% RH (non condensing)
Certifications: EMC: CE (EN 55032, EN 55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI CISPR 32 Class A); UKCA (BS EN 55032: 2015 +Q71: 2020, BS EN 55035: 2017 +Q71: 2020); Safety: UL (UL 62368 1), CB (IEC/EN 62368 1
Warranty: 60 month
Included Accessories: Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield
Weight: 1.2kg
Dimensions: 165 x 112 x 97 mm (w/o sunshield), 165 x 100 x 119 mm (w/ sunshield)
Body: Metal
