Model:

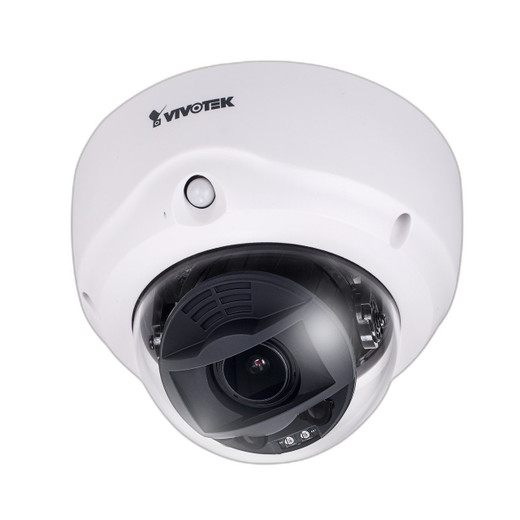

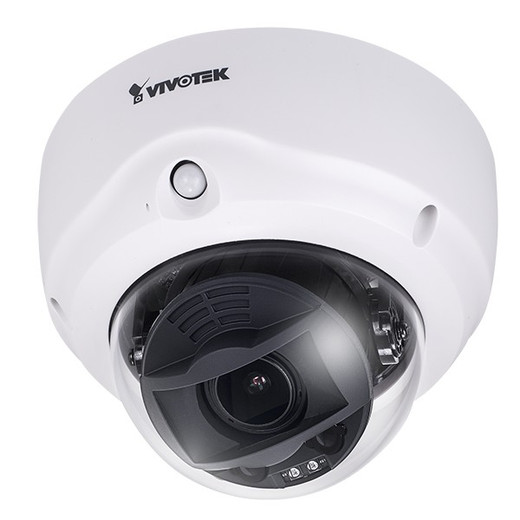

FD9165-HT-A
CPU:
Multimedia SoC (System-on-Chip)
Flash:
256 MB
RAM:
1B
Image Sensor:
1/2" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
f = 4 ~ 9 mm; (f = 2.8 ~ 11.4 mm, equivalent focal length @ 1/2.8")
Aperture:
F1.3 ~ F2.2
Iris Type:
P-iris
Field of View:
120° ~ 46° (Horizontal); 60° ~ 26° (Vertical); 152° ~ 53° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination:
0.015 lux @ F1.3 (Color);
Pan Range:
350°
Tilt Range:
60°
Rotation Range:
±175°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom, CVBS
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
60 fps @ 1920x1080
Maximum Streams:
3 simultaneous streams
S/N Ratio:
68 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
Two-way Audio (full duplex)
Audio Compression:
G.711,.726
Audio Interface:
Built-in microphone; External microphone input; External line output
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S supported, specification available at www.onvif.org
Smart Motion Detection:
Five-window video motion detection, people detection, time filter
Smart VCA:
Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
VADP Package:
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, PIR detection, recording notification, SD card lif
Event Action:
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio line input; Audio line output; AC 24V power input; DC 12V power input; Digital input *2; Digital output *2; TV out
LED Indicator:
System power and status indicator
Power Input:
IEEE 802.3af Class 0 PoE, DC 12V, AC 24V; (Simultaneous Power Redundancy Supported)
Power Consumption:
PoE: Max. 11 W; DC 12V: Max. 8 W; AC 24V: Max. 9.5 W
Dimensions:
Ø 139 x 103 mm
Weight:
538 g
Certifications:
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471); IA: BIS (IS 13252)
Operating Temperature:
Starting Temperature: 0°C ~ 45°C (32°F ~ 113°F); Working Temperature: -10°C ~ 45°C (14°F ~ 113°F) (IR off); -10°C ~ 40°C (14°F ~ 104°F) (IR on)
Humidity:
90%
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, alignment sticker, screw pack
