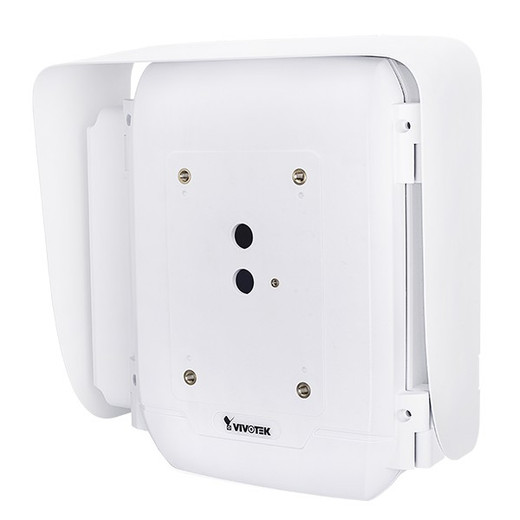

Vivotek AT-CAS-001 Speed Dome Weatherproof Cabinet

Vivotek AT-CAS-001 Speed Dome Weatherproof Cabinet

The Vivotek AT-CAS-001 is a professional-grade protective cabinet engineered to shield network cameras and surveillance equipment in demanding outdoor environments. Built with IP66 weatherproof and IK10 vandal-proof ratings, this cabinet delivers reliable protection against harsh weather conditions, environmental extremes, and physical tampering—making it ideal for city surveillance, industrial monitoring, transportation hubs, and commercial outdoor installations.

Key Features

• Universal Compatibility: Supports all Vivotek network cameras, including speed domes, bullet, and fixed dome models
• Dual Protection Standard: IP66-rated weatherproof housing combined with IK10-rated vandal-proof construction
• Extreme Temperature Tolerance: Operates reliably from -40°C to 75°C, ensuring year-round performance in polar and desert climates
• High Humidity Resistance: Rated for 90% humidity environments, ideal for coastal and tropical deployments
• Integrated Surge Protection: Built-in AC and PoE surge protection safeguards equipment from lightning strikes and power surges
• Flexible Configuration: Accommodates integrated power supplies, industrial PoE devices, and fiber media converters for comprehensive network setups
• Professional Installation Support: Includes stainless steel wall-mount bracket and quick installation guide for rapid deployment

Technical Specifications

• Housing Rating: IP66 weatherproof; IK10 vandal-proof
• Operating Temperature Range: -40°C to 75°C (-40°F to 167°F)
• Humidity Rating: 90%
• Weight: 3.5 kg
• Dimensions: 289 x 280 x 132 mm (expandable to 349 x 280 x 132 mm with AT-CAB-002 extension)
• Installation Hardware: Stainless steel wall-mount bracket included

Applications

The AT-CAS-001 is engineered for demanding surveillance scenarios including:

• Urban and municipal traffic monitoring systems
• Industrial facility perimeter security
• Transportation infrastructure (airports, ports, rail)
• Outdoor retail and commercial properties
• Critical infrastructure protection requiring weatherproof and vandal-resistant enclosures

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AT-CAS-001 addresses a critical gap in outdoor surveillance deployments where standard camera housings prove insufficient. The combination of IP66 and IK10 ratings provides dual-layer defense: IP66 protects against saltwater spray, heavy rain, and ice accumulation; IK10 withstands impacts up to 20 joules, effectively defeating deliberate vandalism. The -40°C to 75°C operating range is exceptional for global deployments, covering everything from arctic monitoring stations to Middle Eastern industrial sites.

The inclusion of surge protection kits eliminates the need for separate hardware, reducing bill-of-materials costs and installation complexity. The expandable modular design via the AT-CAB-002 extension allows incremental buildouts as surveillance requirements grow. For integrators managing multi-site deployments, this cabinet's universal Vivotek compatibility and turnkey architecture significantly accelerate time-to-deployment while ensuring standardized equipment across installations.
