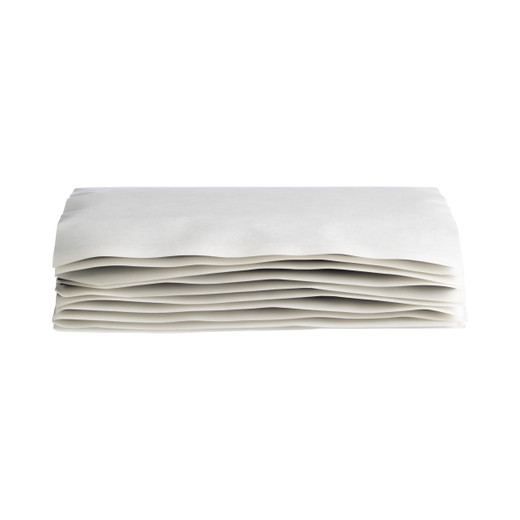

Panduit ST2200-650-400P StrongHold™ Vinyl Sealing Putty Pad
Panduit's ST2200-650-400P delivers a dual-function sealing solution for electrical and low-voltage installations where moisture intrusion threatens connection integrity. This self-vulcanizing putty tape combines a conformable PVC compound with a weather-resistant vinyl backing, creating a permanent waterproof seal around cable entries, splice enclosures, and termination points rated to 600V. The 6.5" × 3.75" pad format provides enough material for multiple small connections or one large cable gland, eliminating the need to stock separate insulation tape and mastic products.
Key Features
- Self-vulcanizing PVC compound fuses to itself without heat or adhesive activation
- Weather-resistant vinyl backing layer provides structural support and UV protection
- Rated for electrical insulation and moisture sealing on connections up to 600V
- Indoor and outdoor approved with full UV, moisture, and chemical resistance
- 6.5" × 3.75" (165mm × 95mm) pad cuts to size for custom applications
- Black finish maintains professional appearance on exposed installations
- RoHS and REACH compliant, lead-free formulation for global deployments
- Single-pad packaging prevents premature curing in multi-connection projects
The self-vulcanizing chemistry at the core of the ST2200-650-400P eliminates the overlap and tension variables that compromise traditional vinyl tape seals. When stretched and wrapped around a cable entry or splice, the putty compound cold-flows into surface irregularities and fuses into a homogeneous mass within hours—no heat gun or primer required. The vinyl backing layer maintains dimensional stability during application and provides a secondary moisture barrier, particularly critical on outdoor pedestal boxes and building penetrations where driven rain can bypass thread-only seals. The 600V insulation rating qualifies the product for Class 1 and Class 2 circuit protection under NEC Article 725, covering the majority of access control, surveillance camera, and fire alarm homerun connections in commercial installations. UV stabilizers embedded in both the putty and backing layers prevent the chalking and cracking that degrades non-stabilized PVC products in 18–24 months of sun exposure, extending service life to 10+ years on rooftop camera mounts and outdoor intercom stations.
Field applications span cable gland waterproofing on outdoor enclosures, splice protection inside pull boxes, and conduit seal-off in wet or classified locations. For IP camera installers, a half-pad typically suffices to seal the cable bundle entry on a junction box back plate, with the putty conforming around individual Cat6 and power leads before the backing layer beds against the gasket surface. In fiber termination cabinets, the compound seals around breakout boots and furcation tubes where standard grommets leave gaps. The product also serves as a moisture block inside direct-burial handholes, wrapped around splice connectors before backfill to prevent groundwater wicking along cable jackets. The 6.5" width accommodates up to 2" conduit hubs or four bundled Cat6 cables; larger penetrations require overlapping multiple pads with 50% coverage. Chemical resistance to oils, salts, and mild acids makes the material suitable for parking garage and industrial environments where traditional rubber sealants degrade on contact with hydraulic fluid or de-icing runoff.
Each pad ships individually wrapped to prevent shelf curing, with 100-pad bulk containers available for high-volume projects. RoHS and REACH compliance ensures the product meets EU and California material restrictions without requiring separate part numbers for international branches of multi-site deployments. The lead-free formulation satisfies drinking water system proximity requirements under NSF/ANSI 61, relevant when sealing cable entries on pump control panels or tank level sensor conduits. For professional integrators managing moisture-prone installations—coastal camera arrays, below-grade access readers, rooftop wireless backhaul—the ST2200-650-400P provides engineered sealing performance without the guesswork and re-work endemic to hardware-store putty sticks and generic electrical tape wraps.
