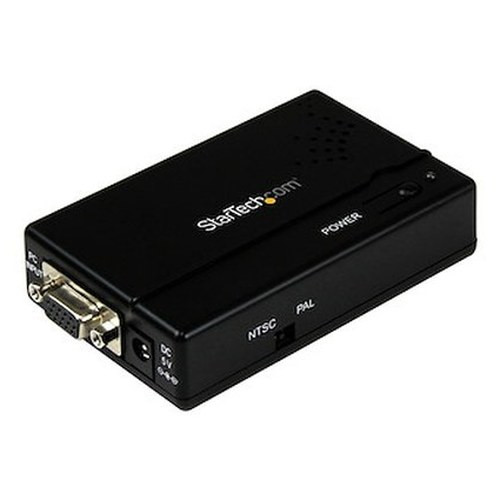

StarTech VGA2VID VGA to Composite and S-Video Converter
Overview
The StarTech VGA2VID bridges the gap between modern PC graphics outputs and legacy analog display equipment — converting a standard VGA signal into either composite or S-Video output without replacing the display hardware. If you're running a presentation system, a security control room monitor, or any workflow where a VGA source needs to feed an older analog television or projector, the VGA2VID handles that translation in a compact, self-contained unit that draws just 13 watts.
At 3.9 x 2.5 x 0.7 inches and 3.6 oz, this is a device that sits at the back of a rack shelf or on a credenza without demanding attention. The universal 100–240V AC input means it deploys in any region without a step-down transformer, which matters if you're supporting multi-site installations or traveling AV kits.
Key Features
- VGA Input up to 1600x1200 at 60Hz: Accepts high-resolution VGA signals — UXGA at 60Hz — so you're not artificially throttled to lower resolutions on the source side. That said, the analog output format (composite or S-Video) is the practical resolution ceiling; the VGA input ceiling simply ensures the converter isn't the bottleneck for any source you're likely to connect.
- Dual Analog Outputs — Composite RCA and 4-Pin S-Video Mini-DIN: Two output connector types on one unit means you can adapt to whichever legacy standard your display uses without an additional adapter. S-Video separates luminance and chrominance for a cleaner picture than composite when the display supports it; composite covers virtually everything else.
- Universal AC Input (100–240V, 0.6A): Single power supply works globally without a voltage converter. Useful for AV rental inventories, multi-site enterprise deployments, or any environment where equipment moves between facilities internationally.
- 5V DC / 2.6A Output, 13W Total Consumption: The internal power stage runs the converter circuitry cleanly at 5V DC. At 13W total draw, this unit won't meaningfully affect outlet or UPS capacity planning — relevant when you're budgeting power for a dense AV rack or control room.
- Compact Form Factor (3.9 x 2.5 x 0.7 in, 3.6 oz): Small enough to mount behind a display, tuck into a rack shelf corner, or include in a portable AV kit. The low profile (0.7 in height) is specifically useful in tight cable trays or under-desk installations.
- 0°C to 70°C Operating Temperature: Covers standard commercial indoor environments — control rooms, conference rooms, server rooms with ambient cooling. Not rated for outdoor or industrial temperature extremes, so plan accordingly if the installation space isn't climate-controlled.
- 2-Year Manufacturer Warranty: Two years of coverage provides a reasonable lifecycle assurance for a conversion device that's typically set-and-forget in a fixed installation.
Integration and Compatibility
The VGA2VID is a passive-signal-conversion device with no software driver stack, no network interface, and no VMS dependency. It connects inline between any VGA-capable source — a desktop workstation, laptop with VGA out, NVR with VGA monitor output, or dedicated presentation PC — and any composite or S-Video analog display. No configuration is required beyond plugging in the appropriate output cable.
In security contexts, this converter is most relevant when an older analog monitor (CCTV-grade CRT or early flat panel with only composite/S-Video inputs) needs to display output from a modern NVR or PC that only provides VGA. It also suits conference room setups where a legacy projector or display panel lacks HDMI or DisplayPort but still serves the room adequately.
The 15-pin High Density D-Sub VGA connector on the input side is the standard VGA specification, compatible with graphics cards, integrated graphics, and NVR monitor outputs across virtually all PC platforms produced in the last two decades. The S-Video output uses the standard 4-pin Mini-DIN format supported by televisions, projectors, and video equipment from the late 1990s through the mid-2000s.
For installations requiring signal distribution to multiple displays rather than a single legacy monitor, consider pairing the VGA2VID with a VGA distribution amplifier upstream to split the VGA signal before conversion. For more current display integration needs, review the broader AV signal converters category for HDMI and DisplayPort solutions.
Frequently Asked Questions
Q: What is the maximum input resolution the VGA2VID supports?
A: The VGA2VID accepts VGA signals up to 1600x1200 at 60Hz (UXGA). Note that the output quality is limited by the analog composite or S-Video format, not the VGA input resolution ceiling.
Q: Does the VGA2VID support both composite and S-Video output simultaneously?
A: The unit provides both a composite RCA output and a 4-pin Mini-DIN S-Video output. Check the product documentation for simultaneous output support; in many converters of this type, only one output is active at a time.
Q: What power supply does the VGA2VID require?
A: The VGA2VID includes a universal AC power supply rated 100–240V AC at 0.6A input, delivering 5V DC at 2.6A to the converter. Total power consumption is 13 watts. No additional power adapter or voltage converter is needed for North American or international use.
Q: What is the operating temperature range of the VGA2VID?
A: The VGA2VID is rated for operation from 0°C to 70°C (32°F to 158°F), suitable for standard commercial indoor environments. It is not designed for outdoor or uncontrolled-temperature installations.
Q: What warranty does the VGA2VID carry?
A: The VGA2VID carries a 2-year manufacturer warranty.
Q: Is any software or driver installation required to use the VGA2VID?
A: No. The VGA2VID is a hardware-only signal converter with no driver installation or software configuration required. Connect the VGA source, attach the composite or S-Video display cable, and power the unit.
The use case I see most often for the VGA2VID is a security control room or operations center that has one aging composite-input monitor they haven't replaced yet — maybe a 17-inch CRT at a guard station or a legacy quad-display panel — and a new NVR or workstation that only outputs VGA. At 3.9 x 2.5 x 0.7 inches and 3.6 oz, the VGA2VID sits behind the monitor base or tucks into a shelf lip without any bracket required. That 13W power draw is genuinely negligible on any outlet or UPS circuit you're already running the station from.
Technical Highlights:
- 1600x1200 VGA Input Ceiling: Accepting UXGA at 60Hz means the source side of this converter won't be a constraint for any standard workstation or NVR monitor output. The real resolution limit is downstream in the composite or S-Video signal itself — manage expectations with end users accordingly.
- Universal 100–240V AC Input: At 0.6A input draw, this unit works on any standard outlet worldwide. For organizations running AV or security equipment across multiple international sites, that eliminates the voltage-mismatch risk entirely without adding a separate adapter to the kit.
- Dual Output Connectors: Having both a 4-pin S-Video Mini-DIN and a composite RCA on one unit covers both legacy display standards without a secondary adapter. S-Video will produce a visibly cleaner image where supported — worth specifying when the destination monitor has both inputs.
Deployment Considerations:
- The 0°C to 70°C operating range covers every standard indoor commercial space, but if you're dropping this into a utility closet or equipment room that routinely exceeds 70°C ambient, you need to address the thermal environment first — the converter itself gives no warning when it hits its thermal ceiling.
- There is no digital output path on the VGA2VID. If the end goal is to eventually transition the display to HDMI or DisplayPort, this converter is a bridge device, not a long-term architecture — plan the display refresh cycle accordingly rather than treating this as a permanent infrastructure solve.
The VGA2VID is well-matched to fixed security operations stations, conference rooms with a legacy projector that isn't being replaced this budget cycle, or portable AV kits that need to feed older event venue displays from a modern laptop. It's not the answer for any deployment moving toward all-digital display infrastructure.
