Compulocks 111W VESA Fixed 45-Degree Counter Stand
Overview
The Compulocks 111W is a fixed 45-degree VESA-mount stand designed to deploy tablet enclosures face-on at counter height. The 45-degree angle positions the screen for direct operator viewing from a standing position — critical in retail, warehouse, and point-of-service environments where users need clear sightlines without bending or reaching. The 111W mounts directly to counter surfaces via M6 threaded holes (72.5mm spacing pattern), eliminating wall installation and freeing up vertical space for other fixtures.
Compatibility

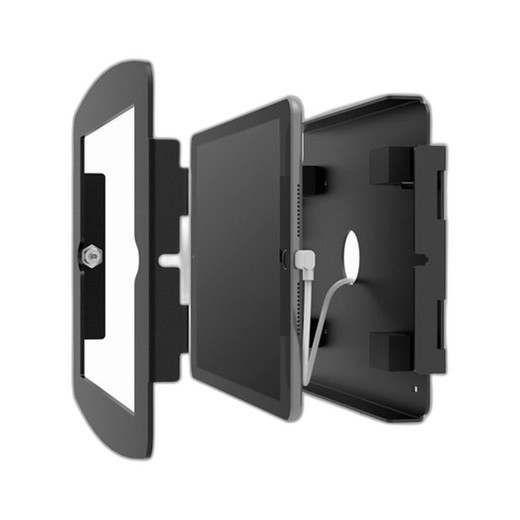

Works with Compulocks Core tablet enclosures (SKU 111B and 111W variants) and any VESA-standard tablet housing with compatible mounting holes. The stand uses M4 Phillips screws (provided) to secure the enclosure to the baseplate. Verify that your tablet enclosure uses standard VESA mounting holes before ordering — this mount is rigid and does not adjust for angle or height once installed. Do not attempt to use this stand with non-VESA or proprietary mounting interfaces.
Installation Notes
Counter mounting requires M6 screws (not provided in this kit) anchored through the 72.5mm-spaced holes drilled into the baseplate. Use existing threaded holes in your counter if available, or drill new holes aligned to the provided template (2.86 inches / 72.5mm spacing). Wire inlets are pre-drilled into the stand base for routing power, data, or network cables up through the enclosure. A plastic cover slides over the mounting posts to conceal fasteners after installation. No wall brackets or additional hardware required.
What's in the Box
- 1x Fixed 45-degree stand base (plastic)
- 1x Plastic cover for mounting posts
- M4 x 8mm Phillips screws for enclosure attachment (quantity per fixture specification)
