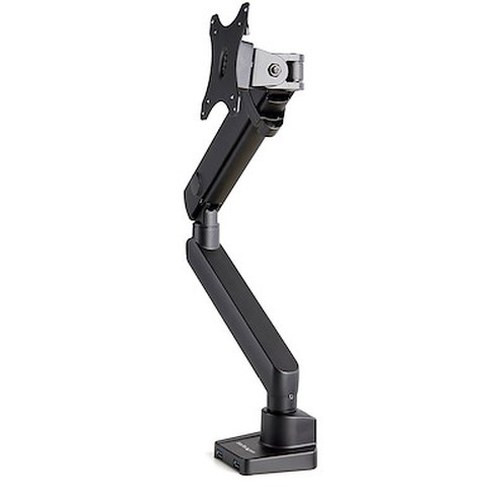

StarTech ARMSLIM2USB3 Heavy Duty Single Monitor Arm

Overview

The StarTech ARMSLIM2USB3 is a heavy-duty, single-monitor arm designed for ergonomic positioning and desk space optimization. It supports monitors from 17" up to 34" and accommodates VESA 75x75mm and 100x100mm mounting patterns. Integrated USB 3.2 Gen 1 ports provide convenient peripheral connectivity directly from the arm. This unit is ideal for workstations requiring flexible monitor placement, such as security monitoring stations or multi-purpose control rooms where desk space is at a premium.

Compatibility

This monitor arm supports single displays with VESA mounting patterns of 75x75mm and 100x100mm. It accommodates displays ranging from 17 inches up to 34 inches, provided the display's weight does not exceed 17.6 lb (8 kg). The mounting mechanism is compatible with desk thicknesses from 0.39 to 1.97 inches (10 to 50 mm) for clamp mounting, or requires a grommet hole of the same diameter range.

Installation Notes

Installation requires a desk edge or a grommet hole with a diameter between 0.39 and 1.97 inches (10 to 50 mm). The arm provides +90°/-90° tilt and swivel, and 90° rotation for precise display orientation. Ensure the mounting surface can support the weight of the arm and the display, up to a combined maximum of 17.6 lb (8 kg).

What's in the Box

  • 1x ARMSLIM2USB3 Monitor Arm
  • 1x Desk Clamp Mount
  • 1x Grommet Mount
  • 1x Hardware Mounting Kit
  • 1x Instruction Manual
Specifications
VESA Hole Pattern: 75x75 mm, 100x100 mm
Maximum Weight Capacity: 17.6 lb [8 kg]
Minimum Display Size: 17"
Maximum Display Size: 34"
Maximum Height: 17.5 in [445 mm]
Display Tilt: +90 / - 90
Display Swivel: +90 / - 90
Display Rotation: 90
Number of Displays Supported: 1
Mounting Options: Desk & Grommet Clamp
Table Thickness: 0.39 - 1.97 in. (10 - 50 mm)
Grommet Mount Hole Size: 0.39 - 1.97 in. (10 - 50 mm)
USB Ports: 2x USB-A 3.2 Gen 1 5Gbps
Color: Black
Construction Material: Aluminum
Product Length: 21.5 in [54.7 cm]
Product Width: 4.5 in [11.5 cm]
Product Height: 17.5 in [44.5 cm]
Weight of Product: 6.3 lb [2.8 kg]
Warranty: 2 Years
Brand: StarTech
MPN: ARMSLIM2USB3
Type: Mounting Bracket
