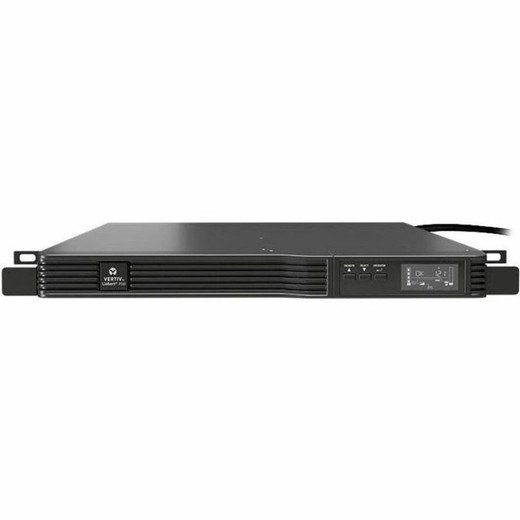

Vertiv PSI5-1500RM1201UN 1500VA 1U Line Interactive Rack UPS
Overview
The Vertiv Liebert PSI5-1500RM1201UN is a 1500VA/1350W line interactive UPS built for IT and security equipment that cannot tolerate power anomalies in production environments. Fitting in a single 1U rack slot, this unit ships with the IS-UNITY-SNMP communication card already installed — you're not ordering a bare UPS and hunting for a separate management card after the fact. It delivers pure sine wave output on battery, which matters if you're protecting variable-speed drives, active PFC power supplies, or any load that rejects the stepped approximation output common in cheaper line interactive units. For rack-mount UPS systems at this capacity tier, the PSI5-1500RM1201UN occupies a pragmatic middle ground: enough runtime for an orderly shutdown or generator handoff without the cost and complexity of a full double-conversion topology.
Key Features
- 1500VA / 1350W at 0.9 Power Factor: The 0.9 power factor rating closes the common gap between VA and real watts — you get 1350W of usable capacity rather than the 750–900W you'd see from a 1500VA unit with a 0.5–0.6 PF. That translates directly into more servers or network gear you can put on a single UPS without derating.
- Pure Sine Wave Output on Battery: When utility power drops and the unit switches to battery, the output waveform is a clean sine — not a simulated stepped wave. Active PFC power supplies in rack servers and managed network switches are designed for sine input; feeding them a square or stepped wave can cause the supply to reject the signal or draw excess current. This spec eliminates that failure mode.
- Line Interactive AVR Topology: Automatic voltage regulation corrects undervoltage and overvoltage sags without switching to battery. For sites with chronic voltage fluctuations — common in older commercial buildings or facilities sharing a utility feed with heavy loads — AVR extends battery life by reserving battery for actual outages rather than every brownout.
- 1U Rack Form Factor: A single rack unit keeps the UPS footprint minimal in dense deployments. In a 42U cabinet supporting surveillance NVRs, switches, and edge compute, the difference between 1U and 2U matters when you're counting slots.
- Included IS-UNITY-SNMP Communication Card: The bundled SNMP card provides network-based monitoring and shutdown management out of the box. You can integrate the PSI5-1500RM1201UN into your existing NMS, receive SNMP traps on power events, and configure automated graceful shutdowns without an additional hardware purchase or a second installation visit.
- 5 Outlets with 2 Programmable: Two outlets support programmable load shedding, letting you configure controlled sequencing — for example, dropping non-critical loads first during an extended outage to extend runtime for priority equipment. The remaining three outlets provide standard protected power.
- 120V Input/Output: Matched to standard North American single-phase circuits. No step-down transformer required in a typical US data closet or IDF room.
Integration & Compatibility
The IS-UNITY-SNMP card included with the PSI5-1500RM1201UN supports integration with Vertiv's Liebert IntelliSlot ecosystem and is compatible with standard SNMP-based network management systems. The card enables remote monitoring of UPS status, load levels, battery health, and runtime estimates — the data points a NOC or facilities team needs to manage power infrastructure proactively rather than reactively. For NVR and video management server deployments where unplanned shutdowns corrupt active recordings, automated graceful shutdown scripting via SNMP is a real operational safeguard. The pure sine wave output ensures compatibility with the broadest range of load types, including active PFC servers and network hardware from all major vendors. Verify your specific load's VA and watt draw against the 1350W capacity ceiling before deployment — this is particularly relevant in dense surveillance environments where multiple PoE switches and storage arrays share a single UPS.
The PSI5-1500RM1201UN (often searched as PSI5 1500RM1201UN) is a direct fit for IDF closets, small server rooms, and security equipment rooms where a compact 1U profile and network management capability are both required. Pair it with an appropriate rack PDU if your load count exceeds the five built-in outlets.
Frequently Asked Questions
Q: What is the real watt capacity of the PSI5-1500RM1201UN, and how does the power factor affect it?
A: The PSI5-1500RM1201UN is rated 1500VA with a 0.9 power factor, giving 1350W of real power capacity. Most comparable line interactive units in this VA class carry a 0.5–0.6 power factor, which limits usable watts to 750–900W. The 0.9 PF rating means you can load this unit closer to its nameplate capacity without derating.
Q: Does the PSI5-1500RM1201UN output pure sine wave during a power outage?
A: Yes. On battery, the PSI5-1500RM1201UN delivers pure sine wave output. This is important for servers and network equipment with active PFC power supplies, which can malfunction or shut down when fed a stepped or simulated sine wave from cheaper UPS units.
Q: Is an SNMP card included, or does it need to be purchased separately?
A: The IS-UNITY-SNMP communication card is included with the PSI5-1500RM1201UN. No separate card purchase is required for network monitoring and management integration.
Q: What is the form factor, and how much rack space does the PSI5-1500RM1201UN require?
A: It occupies 1U of rack space. This is the most compact footprint available in a rackmount UPS at this capacity, making it well-suited for dense IDF rooms and equipment closets where vertical space is limited.
Q: What is the difference between the programmable and standard outlets on this UPS?
A: The unit has 5 total output outlets. Two are programmable, supporting load-shedding sequences that allow you to drop non-priority loads during an extended outage to extend runtime for critical equipment. The remaining three outlets provide standard battery-backed protected power.
Q: Is the PSI5-1500RM1201UN a double-conversion (online) UPS?
A: No. It is a line interactive UPS with automatic voltage regulation (AVR). Line interactive topology corrects voltage sags and surges without switching to battery, but does not provide the continuous online conversion of a true double-conversion unit. For applications requiring zero transfer time and complete isolation from utility power anomalies, a double-conversion UPS is the appropriate choice.
What stands out most about the PSI5-1500RM1201UN is the combination of the 0.9 power factor and the bundled IS-UNITY-SNMP card — that pairing is meaningfully better than the typical 1500VA line interactive unit, which ships without management hardware and forces a separate card purchase to get SNMP visibility. At 1350W real capacity and 1U height, this Vertiv unit fits a specific deployment profile cleanly.
Technical Highlights:
- 0.9 Power Factor: At 1350W real watts on a 1500VA frame, you have roughly 40–80% more usable capacity than a comparable unit with a 0.5–0.6 PF — the difference between fitting a full NVR stack or being forced to split across two circuits.
- Pure Sine Wave on Battery: Critical if any load in the rack uses an active PFC supply, which is standard on enterprise servers and managed switches since roughly 2010. Stepped-wave output from cheaper line interactive units causes active PFC supplies to either shut down or run hot — neither is acceptable in a production surveillance head-end.
- Included SNMP Card: Network management integration is live from day one. No return trip to install a card, no slot hunting. For multi-site deployments managed centrally, this is a real labor savings — SNMP trap configuration can be templated and pushed remotely rather than requiring hands-on per-unit setup.
Deployment Considerations:
- AVR corrects voltage without switching to battery, which extends battery life in facilities with chronic undervoltage — but if your site has frequent deep sags (below AVR correction range) or requires zero transfer time, step up to a double-conversion topology rather than expecting line interactive AVR to fully substitute.
- Five outlets is tight for a fully loaded rack segment. If you're protecting more than five discrete loads, plan a short-run rack PDU on the UPS output rather than daisy-chaining power strips, which can void UPS ratings and create airflow problems in 1U-dense stacks.
The PSI5-1500RM1201UN is the right call for IDF closets and small security head-ends running a managed switch, one or two NVRs, and edge compute — where 1U matters, active PFC loads are present, and the facility team needs SNMP visibility without a second line item on the purchase order.
