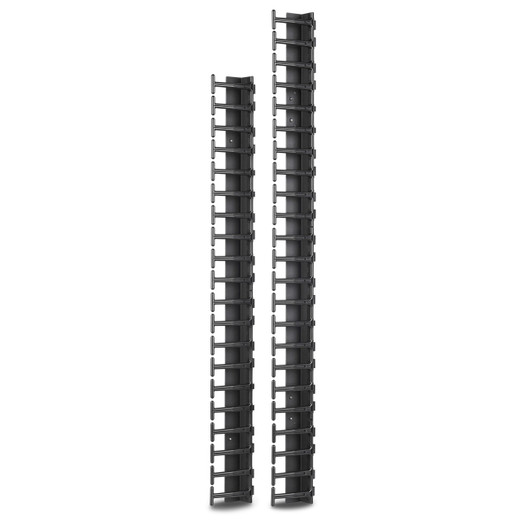

APC by Schneider Electric AR7722 Vertical Cable Manager

Overview

The APC by Schneider Electric AR7722 is a vertical cable tray designed for 600mm wide NetShelter SX enclosures. It addresses the challenge of managing and organizing network and server cabling within a rack, preventing interference with airflow and equipment access. This black, RoHS-certified manager installs vertically, providing a clean pathway for patch cords and cable bundles, especially critical in high-density deployments where cable congestion can impact thermal performance and maintenance.

Compatibility

This vertical cable manager is specifically designed for APC NetShelter SX enclosures with a 600mm (23.6 inch) width. It integrates directly into the rack structure of these specific enclosure models, ensuring proper alignment and support for cabling pathways. It is not compatible with other rack brands or different NetShelter series without modification.

Installation Notes

Installation involves mounting the AR7722 vertically within the designated channels of a 600mm wide NetShelter SX rack. The unit's 107mm width is optimized to fit within the rack's internal dimensions without consuming excessive rack units. Its net weight of 2.27 kg ensures it is manageable during installation. Ensure all mounting points are secured to prevent sagging under the load of cables. The black finish blends with standard rack aesthetics.
