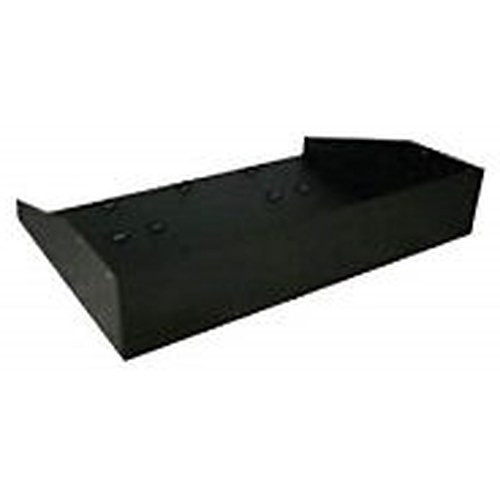

Valcom VP-9202 19-Inch Rack Power Supply Shelf

Overview

The Valcom VP-9202 is a dedicated 19-inch power supply shelf designed for mounting two VP-6124 power supplies in a standard equipment rack. This rack-mount form factor provides a clean, organized method for centralizing power delivery in multi-unit Valcom installations. The VP-9202 (often searched as VP 9202) consolidates power management while maintaining accessibility for service and maintenance within standard 19-inch server rack environments.

Key Features

• Dual Power Supply Capacity: Designed to accommodate two VP-6124 power supplies, each delivering 165 watts
• 19-Inch Rack Mount: Direct integration into standard 19-inch equipment racks with proper spacing and support for dual units
• Compact Footprint: Optimized depth and width dimensions for non-intrusive placement alongside other rack-mounted components
• Secure Mounting: Stable platform engineered to support the combined weight of dual power supplies without flex or movement
• Accessibility: Rack position allows straightforward access to power supply connectors and status indicators
• Standard Compliance: Compatible with EIA standard 19-inch rack widths and depth profiles common in enterprise installations

Physical Specifications

The VP-9202 weighs 5.40 pounds (2.30 kilograms) and is constructed to handle the load requirements of dual power supplies while maintaining structural integrity in vertical rack environments. The shelf provides a rigid platform that prevents sagging or deflection under load, ensuring that both VP-6124 units remain properly aligned and accessible throughout their operational life.

Integration & Compatibility

The VP-9202 is engineered specifically for use with Valcom VP-6124 power supplies, which are 165-watt AC-to-DC conversion units rated at 120 volts AC input with 47–63 Hz frequency tolerance. This shelf is the recommended mounting solution for installations requiring redundancy or split power sourcing across multiple Valcom system components. It integrates seamlessly into existing Valcom system architectures where centralized power management and rack-based organization are priorities.

Installers working with multi-unit Valcom deployments benefit from the VP-9202's ability to consolidate power infrastructure within a single rack space. This approach simplifies cable management, reduces point-of-failure risk across distributed power sources, and provides a clear visual and functional hierarchy in equipment rooms where space efficiency is essential.

The shelf design accommodates standard rack rail mounting systems and does not require specialized hardware beyond standard 19-inch rack installation tools and fasteners. This compatibility ensures that the VP-9202 can be integrated into existing infrastructure without additional modifications or adapters.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During planning for a multi-site Valcom deployment, the VP-9202 proved essential for organizing dual power supplies in space-constrained server rooms. This shelf simplifies the physical installation and creates a professional, maintainable infrastructure layout. The VP-9202 eliminates ad-hoc mounting solutions and ensures both power supplies remain accessible for status checks and field service.

Technical Highlights:

• Dual VP-6124 Support: Engineered to securely mount two 165-watt power supplies in a single 19-inch rack unit footprint
• Load Capacity: Constructed to handle combined weight of dual power supplies without deflection or alignment issues

Deployment Considerations:

• Position the shelf at a vertical location that allows comfortable access to power connector terminals and status indicators
• Ensure that cable routing from the shelf to system components maintains strain relief and does not create sharp bends or tension points
• Verify that adjacent rack-mounted equipment does not interfere with airflow around the dual power supplies once installed on the VP-9202

For integrators managing multi-building or multi-floor Valcom installations, the VP-9202 is the foundation for clean power management. Specifying this shelf from the outset prevents costly rework and improves system maintainability over the installation lifecycle.
