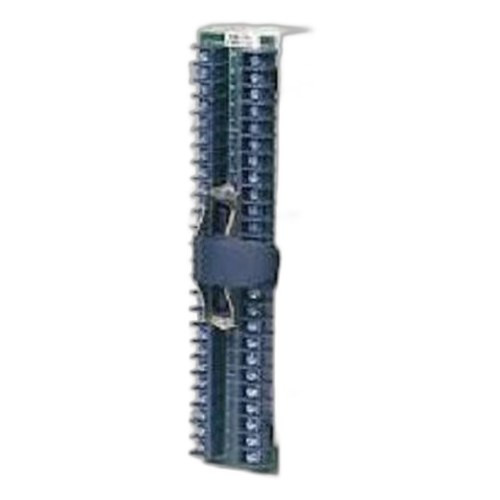

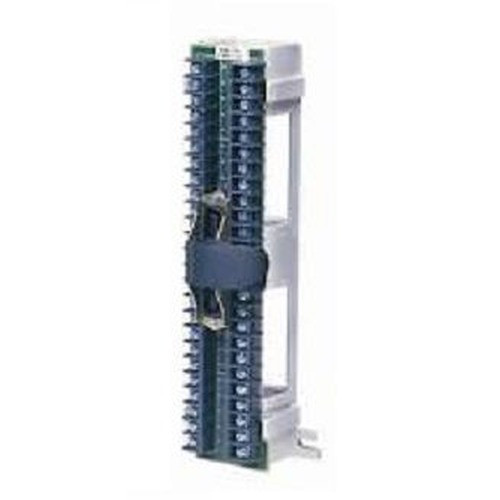

Valcom VM-150 Screw Terminal Connection Block

Overview

The Valcom VM-150 is a screw terminal connection block engineered for professional intercom system installations. Designed to facilitate reliable connections between heavy gauge speaker wire and Amphenol-terminated intercom circuit cards, the VM-150 serves as a critical interface component in Valcom distributed audio and intercom deployments. This terminal block is purpose-built for security integrators and system installers who require dependable, field-serviceable audio connectivity in multi-zone communication systems.

Key Features

• Heavy Gauge Wire Compatibility: Screw terminal design accommodates heavy gauge speaker wire for robust audio signal transmission
• Amphenol Interface: Direct compatibility with Amphenol-terminated intercom circuit cards for standardized system integration
• Microphone Support: Audio input capability for microphone integration in intercom systems
• Field-Serviceable Design: Screw terminal construction allows for straightforward installation, maintenance, and reconfiguration without specialized tools
• Professional Installation Grade: Built to withstand commercial intercom deployment environments
• Reliable Audio Connectivity: Ensures secure mechanical and electrical contact for consistent audio signal fidelity

Integration & Compatibility

The VM-150 terminal block connects directly to Amphenol-terminated intercom circuit cards, making it compatible with Valcom intercom systems that utilize this standard connector configuration. The screw terminal interface accepts heavy gauge speaker wire, allowing flexible cable routing and connection strategies in complex installation scenarios. This compatibility makes the VM-150 an essential accessory for expanding or maintaining existing Valcom intercom deployments.

Installation Considerations

The screw terminal construction of the VM-150 requires proper wire preparation and torque specification during installation. Security integrators should reference the installation manual for detailed guidance on wire gauge compatibility, terminal connection procedures, and system integration best practices. The terminal block supports both microphone input and speaker wire connections, enabling flexible audio routing configurations in multi-zone intercom systems.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Valcom VM-150 during planning for several multi-zone intercom system upgrades. This terminal block is straightforward hardware—it's the interface that translates between Amphenol-terminated circuit cards and the field-installed speaker wire that actually carries audio through the building. In my experience, having a reliable, field-serviceable connector point is critical when you're managing audio distribution across multiple zones or integrating microphone inputs into existing systems.

Technical Highlights:

• Heavy Gauge Wire Acceptance: The screw terminal design on the VM-150 handles thicker wire gauges, which is important for longer cable runs where signal loss becomes a real concern
• Microphone Support: Built-in audio input capability means you can integrate external mics without additional adapters or signal conditioning

Deployment Considerations:

• Ensure proper wire gauge selection and preparation before installation—undersized wire can create intermittent connection issues in intercom systems
• Verify screw terminal torque specifications during initial setup to avoid both loose connections and wire damage from over-tightening
• The terminal block is most cost-effective when deployed as part of a larger Valcom system; for single-point replacements, confirm Amphenol compatibility with your existing circuit cards

For integrators managing Valcom intercom infrastructure, the VM-150 is a practical, field-proven component. It does one job well: it provides a secure, serviceable connection point between your system cards and your installed audio wiring. Keep a few spares on hand for service calls—the cost is minimal, and they're a reliable fix for connector issues in the field.
