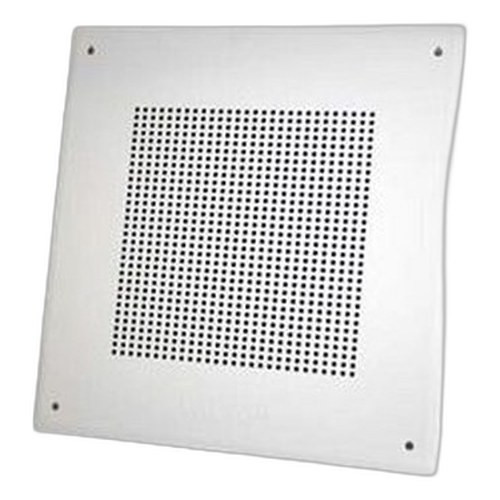

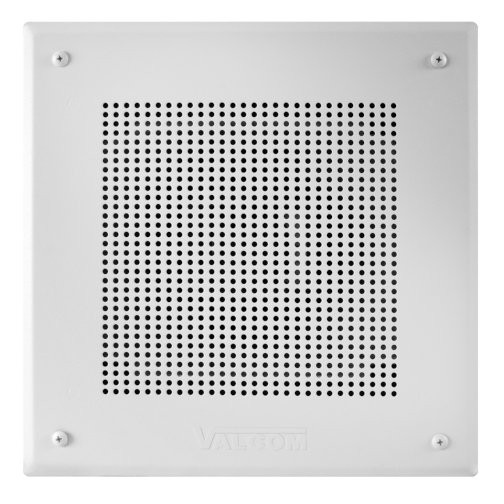

Valcom VIP-428A-SA IP Square Speaker
The Valcom VIP-428A-SA is a networked IP speaker engineered for distributed audio in commercial and institutional environments. Powered by standard PoE (802.3af), this 8-inch square faceplate speaker operates as a one-way or talkback-capable device, making it suitable for voice paging, emergency messaging, and background music distribution. The unit integrates with the Intrado Revolution® control platform, enabling centralized audio management across multi-location deployments.
Key Features
- PoE Power Delivery: Operates on single PoE (802.3af) supply; no dedicated electrical circuit required, simplifying installation and reducing infrastructure costs
- Square Hole Pattern Mounting: Engineered for integration into standard suspended ceiling grids and wall cavities; supports recessed, wall, and ceiling mounting orientations
- One-Way and Talkback Modes: Programmable switching between announcement-only and two-way communication to support diverse operational workflows
- Intrado Revolution® Control Integration: Native compatibility with Valcom's IP audio platform for synchronized multi-speaker control, scheduling, and remote management
- Wide Sound Dispersion: 8-inch speaker delivers uniform voice reproduction and music clarity across typical classroom, office, and retail spaces
- Compact Form Factor: Square design (8-inch) minimizes visual footprint while maintaining acoustic output for overhead and wall-mounted installations
- Voice Paging: Optimized frequency response and clarity for announcement systems and emergency communication protocols
- Background Music Support: Full-spectrum audio reproduction suitable for ambient music and continuous audio feeds
- Lightweight Construction: 4.25 lbs (1.91 kg) reduces ceiling load and simplifies field mounting without reinforcement
- Programmable Behavior: Configuration flexibility to assign speaker zones, priority levels, and audio routing within Intrado Revolution® platform
Integration & Compatibility
The VIP-428A-SA (often searched as VIP 428A SA) integrates seamlessly with Valcom's Intrado Revolution® IP audio management system. Network deployment via standard PoE infrastructure allows technicians to use existing Ethernet plant without provisioning dedicated audio circuits. The speaker is addressable within the Intrado platform, supporting zone-based routing, scheduled announcements, emergency override logic, and multi-speaker synchronization. Typical deployments include K-12 schools, higher education facilities, corporate campuses, hospitals, retail locations, and government buildings requiring distributed paging coverage.
Mounting and Deployment
Installation flexibility supports three mounting modes: recessed ceiling (integrated into drop-ceiling grids), surface wall mounting (bracket-secured to drywall or masonry), and standard ceiling mounting (hanging applications). The square hole pattern aligns with industry-standard ceiling tile frames, minimizing retrofit complexity. PoE power delivery via a single CAT5e/CAT6 cable eliminates parallel runs and reduces installation labor. Weight of 4.25 lbs ensures compatibility with standard suspended ceiling systems without additional bracing.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Valcom VIP-428A-SA in large-scale paging and intercom deployments. This speaker handles the core requirements: PoE simplicity, straightforward mounting, and reliable integration with Intrado Revolution® control platforms. For integrators planning distributed audio systems, the square form factor and standard hole pattern reduce installation variance and site survey complexity.
Technical Highlights:
- PoE Efficiency: 802.3af operation means you can leverage existing switch infrastructure; no aux power supplies or dedicated circuits to manage
- Programmable Dual-Mode Audio: One-way paging or talkback capability gives you flexibility to support everything from emergency announcements to nurse-call systems
- Intrado Revolution® Native Support: Direct platform compatibility eliminates gateway devices and third-party middleware, reducing failure points in mission-critical audio chains
Deployment Considerations:
- Verify PoE switch capacity before committing speaker count; 802.3af budgeting at scale requires careful load modeling
- Square hole pattern is non-standard outside Valcom ecosystems; confirm mounting compatibility before specifying alternatives
- Talkback mode depends on network latency and jitter control; implement QoS rules on upstream switches to maintain audio quality
The VIP-428A-SA is a solid workhorse for integrators building Valcom-centric audio systems. Straightforward specs, minimal power overhead, and proven Intrado integration make it a low-risk choice for schools, campuses, and healthcare facilities where reliability and ease of management matter.
