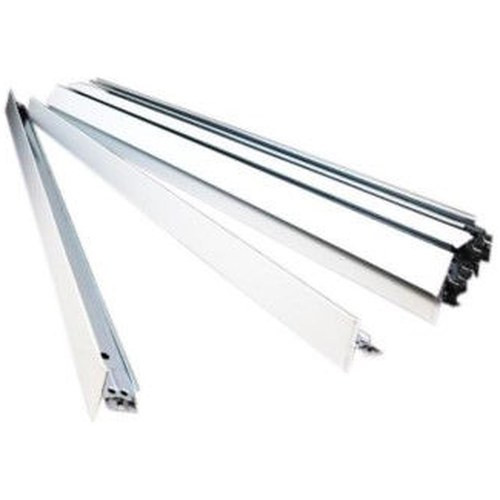

Valcom V-TBAR Ceiling Speaker T-Bar Mount

Valcom V-TBAR Ceiling Speaker T-Bar Mount

Overview

The Valcom V-TBAR is a purpose-built T-bar mounting bracket engineered to secure lay-in ceiling speakers within suspended ceiling tile grids. This accessory addresses a straightforward but critical installation problem: keeping speakers positioned correctly and safely aligned within standard 2' × 4' ceiling tile frames. The V-TBAR eliminates the need for improvised mounting solutions and works with both 1×2 and 2×2 format lay-in speakers across analog voice/paging systems and modern IP-based audio deployments.

Key Compatibility & Installation Features

• Dual Format Support (1×2 and 2×2 lay-in speakers): The bracket accepts both common lay-in form factors, so you can deploy Valcom models such as the S-521B (1×2 analog), S-422A-2 (2×2 analog), V-9021 (1×2 with backbox), and IP-based speakers like the VE4002A and VE4002A-V4 (2×2 IP) without separate hardware kits. This standardization cuts procurement overhead on multi-floor or multi-building deployments.
• Suspended Ceiling Integration: The bracket mounts directly into standard suspended ceiling grid infrastructure. This means no drywall anchors, no special bracing, and no structural assessment required—installation is typically a two-person job lasting minutes per unit rather than hours.
• Secure Positioning During Install: The bracket prevents speaker sag and misalignment during rough-in and final positioning. On projects with dozens of speakers, this prevents the frustration of repeated trim-out adjustments and ensures consistent vertical alignment across the ceiling plane.
• Support for Integral Microphone Inputs: If your speaker model includes a built-in microphone for two-way paging or intercom, the V-TBAR's platform accommodates the speaker body without blocking access to microphone openings. This is relevant for applications requiring emergency notifications or staff coordination in offices, schools, and healthcare facilities.
• Analog and IP System Compatibility: Works equally well with traditional 25/70 Volt audio distribution (common in older and retrofit installations) and modern IP-networked audio systems. No firmware, no power management concerns—it's a purely passive mechanical mount.
• Commercial-Grade Materials: Engineered for institutional environments where durability and code compliance matter. Suitable for offices, educational facilities, healthcare networks, warehouses, and industrial plants.

Integration & Deployment Context

The V-TBAR integrates into the full Valcom lay-in speaker line and works within standard voice/paging and background music systems. It's particularly valuable in retrofit scenarios where ceilings are already in place and drilling into structure is not an option. On new construction, standardizing on the V-TBAR across multiple zones ensures consistent appearance and installation quality.

Typical deployment settings include multi-floor office buildings (background music and desk paging), school campuses (classroom announcements and emergency alerts), hospital networks (patient notifications and staff coordination), retail spaces (promotional audio), and industrial facilities (safety announcements). The bracket ensures speakers remain properly aligned within the ceiling grid throughout their operational life—no sagging, no rattling, no misalignment that forces aesthetically awkward trim-out work later.

When to Choose a Different Approach

If your ceiling is drywall or plaster rather than a suspended tile grid, you'll need wall or pendant mounting instead. If you require a speaker with integral LED indicators, call buttons, or other active components, verify that your chosen speaker model is fully compatible with the V-TBAR's mounting platform before purchasing. Contact the speaker manufacturer or your systems integrator if you're uncertain.

Frequently Asked Questions

Q: Does the V-TBAR work with any lay-in ceiling speaker, or only Valcom models?

A: The V-TBAR is optimized for Valcom lay-in speakers and has been tested with Valcom form factors. If you're mounting a third-party speaker, consult the speaker's mounting instructions and verify dimensional compatibility before committing to this bracket.

Q: Can the V-TBAR be retrofitted into existing suspended ceilings?

A: Yes. The bracket requires no modification to the ceiling structure itself—it simply integrates into the existing grid. This makes it ideal for retrofit installations and renovations where minimal ceiling disruption is required.

Q: Does the V-TBAR require any tools or special installation knowledge?

A: No. The bracket uses standard ceiling grid attachment methods. Any installer familiar with suspended ceiling systems can mount it. No special certifications, electrical work, or power management is needed.

Q: Will the V-TBAR work with IP-based speakers like the VE4002A?

A: Yes. The V-TBAR is compatible with both analog and IP-networked lay-in speakers. It's a passive mechanical mount and places no constraints on the speaker's audio or network functionality.

Q: What's the maximum speaker weight the V-TBAR can support?

A: Lay-in ceiling speakers typically weigh between 5 and 8 pounds. The V-TBAR is designed to securely support speakers in this range within standard suspended ceiling grids. If you have an unusually heavy speaker, consult the bracket's mounting instructions or contact the manufacturer.

Q: Can I use the V-TBAR in a non-suspended ceiling environment?

A: No. The V-TBAR is specifically engineered for suspended ceiling tile grids. For drywall, plaster, or open structure ceilings, you'll need a different mounting solution.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

On multi-zone audio deployments—particularly retrofits where aesthetics and installation speed matter—the Valcom V-TBAR (often searched as V TBAR) is one of those unglamorous components that saves weeks of project time. I've specified this bracket on office renovations, school campus upgrades, and healthcare network rolls where the goal was zero disruption to existing ceilings and predictable labor costs.

Technical Highlights:

• Dual Format Support (1×2 and 2×2): Single SKU eliminates the need to stock multiple variants. On a 50-speaker installation, this means one purchase order instead of two, and simpler site inventory management.
• Passive Mechanical Design: No power, no firmware, no network integration required. The bracket works identically in 25/70 Volt analog systems and modern IP audio networks. Zero compatibility surprises.
• Suspended Grid Integration: Attaches directly to standard 2' × 4' ceiling grid using existing infrastructure. No structural assessment, no drywall anchors, no engineer sign-off. Installation footprint is minimal—typically 15–20 minutes per speaker including rough positioning.

Deployment Considerations:

• Verify speaker form factor (1×2 vs. 2×2) before purchasing. The V-TBAR accommodates both, but mixing them on the same bracket is not advised.
• This bracket is for suspended tile ceilings only. If your venue has drywall, open joists, or plenum-only space, you'll need wall or pendant mounting instead. Don't force fit it.
• Speaker weight typically ranges 5–8 pounds per unit. The bracket is rated for this load range. Heavier or custom speakers require explicit compatibility confirmation from the manufacturer.

The V-TBAR is the right choice for facilities managers and integrators rolling out standardized voice/paging systems across multiple buildings where ceiling consistency is a priority. It's not glamorous, but it works reliably and cuts installation labor significantly compared to custom mounting.
