Valcom V-DCH Digital Clock Head End Driver
The Valcom V-DCH is a complete 2-wire digital clock head end driver package designed for enterprise-scale synchronized clock systems. This integrated solution combines a V-VCU 6 Amp 2-wire clock driver and a V-DCPI Digital Clock Protocol Interface in a compact 2U rack-mountable form factor, making it suitable for facilities requiring precise time distribution across multiple zones and remote clock displays.
Overview
The V-DCH addresses the core infrastructure need for synchronized timekeeping in large buildings, campuses, and multi-zone facilities. By integrating both the power driver and protocol interface into a single chassis, the system reduces wiring complexity and simplifies head-end configuration. The 6 Amp capacity on the 2-wire circuit provides sufficient current for typical mid-range deployments while maintaining standard 2-wire loop architecture for cost efficiency and installation simplicity.
Key Features
- Integrated 2-Wire Clock Driver: V-VCU 6 Amp rated driver eliminates the need for separate power conversion equipment

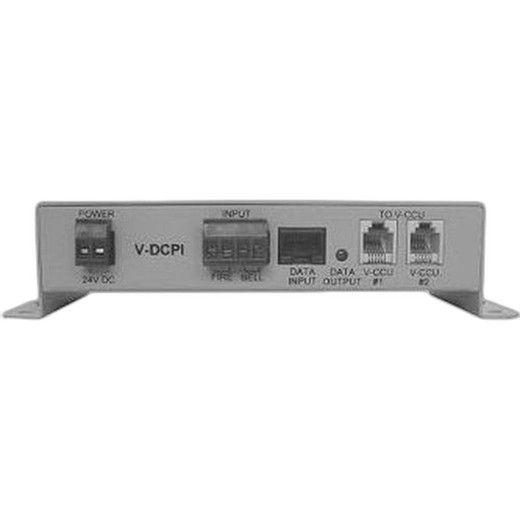

- Digital Clock Protocol Interface: V-DCPI module built into the V-DCH for direct protocol handling without external interfaces
- 2U Rack Mount Form Factor: Designed for standard 19-inch rack installation in telecommunications or IT closets
- 2-Wire Architecture: Standard 2-wire loop topology reduces conductor count compared to multi-wire systems
- Microphone Support: Audio input capability enables announcement and time-synchronized messaging functionality
- Compact Packaging: Single 2U chassis consolidates multiple functions to reduce rack space requirements
Integration and Operational Considerations

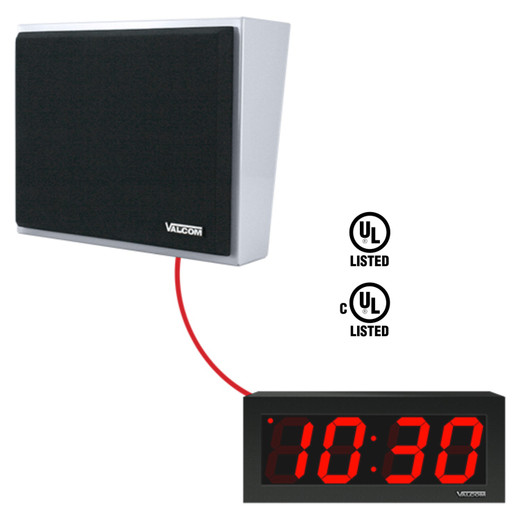

The V-DCH operates as a head-end device within a distributed clock system architecture. It receives protocol inputs from a master clock or control system, processes digital time signals through the integrated V-DCPI module, and distributes synchronized timing over standard 2-wire circuits to remote clock displays and endpoints. The microphone input allows for audio integration with time-synchronized announcements or PA system integration where messaging needs to correlate with time-of-day events.
Installation integrators should plan for adequate UPS backing if time synchronization criticality requires continued operation during power events. The 2U mounting height accommodates standard vertical spacing in most rack enclosures. 2-wire circuit runs should follow standard twisted-pair practices to maintain signal integrity over the full circuit distance supported by the 6 Amp driver capacity.
The V-DCH (also searched as V DCH) functions as a platform component within the broader Valcom clock ecosystem, accepting inputs from compatible control modules and interfacing with Valcom's extensive clock display product line. Technicians should verify protocol compatibility with their master time source—whether NTP-based, GPS-synchronized, or traditional analog inputs—to ensure proper signal handoff to the V-DCPI interface module.
Typical Deployment Environments
This head-end driver is commonly deployed in corporate offices, educational institutions, healthcare facilities, transportation hubs, and multi-tenant buildings where synchronized time displays support operational coordination, scheduling compliance, and visitor wayfinding. Rack-mount placement in secure equipment rooms protects the electronics while centralizing time distribution infrastructure.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems integration perspective, the Valcom V-DCH brings valuable consolidation to distributed clock infrastructure. In facilities I've planned, combining the 6 Amp 2-wire driver and Digital Clock Protocol Interface into one 2U chassis eliminates intermediate conversion steps and reduces the overall component count in the head-end rack. This directly simplifies troubleshooting and reduces potential single points of failure in the protocol layer.
Technical Highlights:
- Integrated Architecture: V-VCU 6 Amp driver and V-DCPI protocol interface eliminate need for separate external modules
- Microphone Input Capability: Enables audio-synchronized messaging where time-of-day announcements or PA integration is required
Deployment Considerations:
- Plan 2-wire circuit runs with twisted pair best practices to maintain full 6 Amp capacity over distance; calculate voltage drop for extended runs exceeding typical building loop distances
- Verify master time source compatibility with the V-DCPI module before purchasing; confirm whether your control system sends compatible digital protocol signals
- Position the V-DCH in a secure, climate-controlled equipment room; ensure adequate UPS backing if continuous time synchronization is operationally critical
The V-DCH is a practical, space-efficient choice for mid-sized to large facilities standardizing on Valcom's clock platform. Its 2U form factor and integrated design make it well-suited to retrofit and new-build scenarios where rack space and head-end consolidation matter. Confirm compatibility with your existing or planned clock display product line before finalizing procurement.
