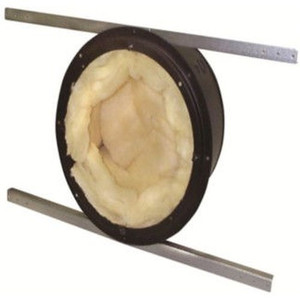

Valcom V-9916M Metal Bridge/Backbox Combo
Overview
The Valcom V-9916M is a metal bridge and backbox combination unit engineered for straightforward installation of 8-inch round ceiling speakers. This mounting solution combines structural support with protective housing in a single integrated assembly, reducing the component count installers must manage in the field. The V-9916M is purpose-built for commercial, institutional, and industrial environments where distributed audio systems require repeatable, secure mechanical mounting without custom fabrication or field modifications.
Key Features
- Integrated Bridge/Backbox Design: Combines mounting bridge and protective backbox in one unit, eliminating the need for separate components. This reduces assembly steps in the field and lowers the risk of misalignment or missing fasteners that can plague multi-part installations.
- Metal Construction: Durable metal materials provide structural integrity and long-term reliability in standard indoor environments. Metal resists vibration and building movement, keeping speaker mounting points stable over time.
- 8-Inch Speaker Compatibility: Purpose-built for 8-inch round ceiling speaker mounting. Precise fit ensures speakers sit flush with the backbox, eliminating gaps that would otherwise require spacers or shims.
- Ceiling Flush-Mount Configuration: Designed for direct installation into standard ceiling cavities, delivering a clean, professional appearance without visible brackets or offset hardware.
- Mechanical Speaker Protection: Backbox element shields mounting points and speaker terminals from dust, debris, and incidental contact. This extends the operational life of electrical connections and mechanical components, particularly important in high-traffic or maintenance-intensive facilities.
- Secure Fastening Points: Engineered mounting points ensure speakers remain mechanically stable under normal operating conditions and building vibration.
Installation and Compatibility
The V-9916M mounts directly to standard ceiling structures and accommodates both new construction and retrofit applications. The integrated design eliminates compatibility gaps between bridge and backbox components, streamlining deployment across multi-speaker distributed audio installations. Integration with Valcom's 8-inch ceiling speaker line is direct and requires no additional adapters or modifications. Before installation, verify that ceiling framing can support the combined weight of the fixture and speaker, and inspect electrical connections independently of the mounting hardware.
Material and Durability
Metal construction provides resistance to physical stress and vibration—critical attributes for ceiling-mounted audio equipment subject to building movement or maintenance activity. The backbox shields mounting cavities from dust accumulation and contact damage, extending component lifespan in facilities with frequent ceiling access or renovation activity. The V-9916M is rated for standard indoor deployment environments with typical temperature and humidity ranges. It is not suitable for outdoor, wet, or corrosive environments without additional protective measures.
Frequently Asked Questions
Q: Is the V-9916M compatible with speakers other than Valcom 8-inch models?
A: The V-9916M is engineered specifically for Valcom 8-inch round ceiling speakers. Compatibility with third-party speakers is not supported without verification of mechanical fit and mounting hole alignment.
Q: Can the V-9916M be installed in both new construction and retrofit applications?
A: Yes. The unit mounts directly to standard ceiling structures in both scenarios. Confirm adequate framing support and ceiling cavity dimensions before installation.
Q: What additional hardware or adapters are needed for installation?
A: The V-9916M combines bridge and backbox in a single assembly, eliminating the need for separate mounting components. Standard fasteners and electrical connections for the speaker itself are handled independently of the fixture.
Q: Is the V-9916M rated for outdoor or wet environments?
A: No. The V-9916M is designed for standard indoor deployment only. Outdoor or corrosive environments require alternative solutions or additional protective measures.
Q: What is the weight and physical footprint of the V-9916M?
A: Specific weight and dimensional data is not provided in the available documentation. Contact the manufacturer for detailed physical specifications before finalizing ceiling layout or structural planning.
Q: Does the V-9916M provide any acoustic benefit or damping?
A: The backbox provides mechanical protection and dust shielding. Acoustic characteristics depend on the speaker itself and the ceiling cavity environment. Acoustic performance is not specified for the mounting hardware.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems integration perspective, the Valcom V-9916M addresses a fundamental requirement in ceiling speaker deployment: secure, repeatable mechanical support without unnecessary component proliferation. During planning for distributed audio systems—especially large-scale deployments across warehouses, educational facilities, or commercial campuses—the choice of mounting hardware directly impacts installation time, field assembly errors, and long-term reliability. The V-9916M's integrated bridge/backbox design reduces the number of separate components installers must manage in the field, which translates to fewer assembly errors and faster completion cycles compared to systems requiring separate bridge and backbox procurement.
Technical Highlights:
- Integrated Design Reduces Components: Combines bridge mounting and protective backbox in a single assembly. This lowers part count, reduces inventory management overhead, and eliminates compatibility mismatches between separate components.
- 8-Inch Speaker Purpose-Build: Engineered specifically for Valcom's 8-inch ceiling speaker line. Precise fit eliminates gaps, shims, and field modifications—critical when deploying dozens or hundreds of units across a facility and aiming for consistency.
- Mechanical Protection Via Backbox: Shields mounting cavities and electrical connection points from dust and incidental contact. In high-traffic facilities or those subject to frequent maintenance, this extends the lifespan of speaker terminals and reduces troubleshooting time related to connection degradation.
Deployment Considerations:
- Ceiling Framing Must Be Verified: The V-9916M itself is robust, but its reliability depends entirely on adequate ceiling structural capacity. Always confirm joist location and load limits before installation, particularly in retrofit applications where ceiling modifications may have weakened surrounding framing.
- Indoor Environments Only: Do not deploy this fixture in outdoor, wet, or corrosive environments. Metal construction will corrode without protective coatings, rendering the mechanical support unreliable.
- Integration Scope: The V-9916M handles only the mounting and protection function. Electrical planning, audio conditioning, amplifier selection, and wiring topology remain separate engineering tasks. Confirm speaker electrical specifications independently.
The V-9916M is the right choice for large-scale ceiling speaker deployments in commercial or institutional facilities where consistency, speed, and long-term reliability matter more than minimal cost. It's particularly valuable in retrofit scenarios where multiple speakers must be installed on existing ceiling structures, because the integrated design reduces field assembly complexity and the risk of mixing incompatible bridge and backbox components from different suppliers.
