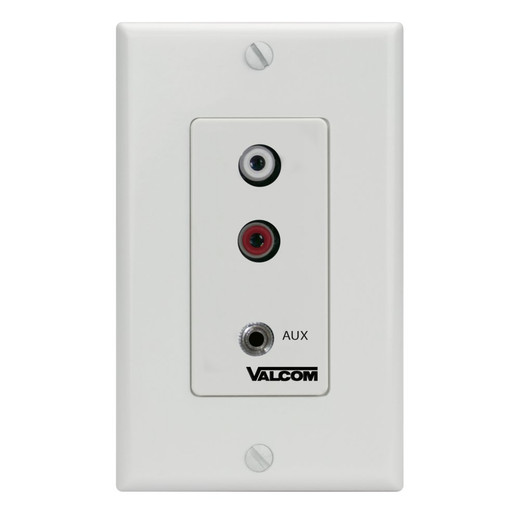

Valcom V-9130-W Remote Input Module
The Valcom V-9130-W is a wall-mounted remote input module engineered to process line-level audio sources and integrate them into Valcom public address and background music systems. This compact device handles the conversion of stereo audio sources to mono format — a practical requirement when audio equipment must be located away from the main system rack but still needs to feed a centralized PA network. At 1.00 lb and drawing no external power, the V-9130-W is deployed as an extension point in distributed audio installations across commercial facilities, educational campuses, and industrial sites.
Key Features
- Passive Stereo-to-Mono Conversion: Converts incoming stereo line-level signals to mono without active amplification. This matters because it eliminates latency concerns and removes the need for power management at remote input locations — a real advantage in buildings with unreliable or restricted power outlets.
- Dual Input Connectors (RCA + 3.5mm): Supports both RCA and 3.5mm stereo headphone jack connections. This flexibility avoids the cost and installation complexity of external adapters when connecting different source equipment — mixing consoles, broadcast players, or portable devices can all connect directly.
- Line-Level Audio Support: Accepts standard line-level inputs from broadcast-quality sources, mixing consoles, and media players. Line-level operation (typically –10 dBV to +4 dBu) means the module integrates cleanly with professional audio equipment without requiring preamp buffering.
- Wall-Mount Form Factor: Designed for direct mounting to wall surfaces in equipment rooms, control areas, or remote zones. Compact, fixed orientation installation eliminates the need for rack space and enables flexible placement relative to the audio source.
- No External Power Required: Operates passively with zero power draw. This simplifies installation in locations where adding electrical infrastructure is impractical or prohibited, and removes the V-9130-W from the facility's power monitoring and UPS planning.
- Lightweight Construction (1.00 lb / 0.45 kg): Low weight simplifies wall mounting on standard drywall and bracket hardware. Relocation or reconfiguration requires no structural reinforcement or additional support planning.
Integration & Compatibility
The V-9130-W integrates into the Valcom catalog of audio distribution products as a remote signal conditioning point. Its passive stereo-to-mono conversion ensures audio signals conform to the format expected by Valcom distribution amplifiers and speaker systems. When deploying a campus-wide PA network or integrating legacy audio equipment into a new centralized system, the V-9130-W allows audio source locations to be separated from the main equipment rack — a common topology in larger facilities where running balanced audio cable over long distances or placing equipment near the audio source is more practical than centralizing everything.
The module's dual connectors (RCA and 3.5mm) accommodate a broad range of audio equipment: portable media players, mixing consoles, broadcast-quality interfaces, and consumer audio devices. This removes the need to inventory multiple adapter types or plan cable runs around incompatible connectors.
Installation Considerations
Installation is straightforward: mount the V-9130-W to a wall near the audio source using standard wall anchors or fasteners appropriate to your wall type (drywall, concrete, etc.). Connect the source equipment via RCA or 3.5mm, run the output cable to your Valcom distribution network, and the module is live. Because the device is passive and draws no power, there is no thermal management concern and no requirement to plan electrical distribution or UPS backup at the remote location.
Typical deployment locations include conference room audio control areas, broadcast stations feeding PA systems, background music distribution hubs, emergency notification system input points, and multi-zone audio distribution centers in healthcare or educational facilities.
When to Choose a Different Model
If your audio source is already in mono format or if active amplification or equalization is required at the remote location, consult the broader audio distribution systems catalog for amplified remote input options. The V-9130-W is strictly a passive signal conditioner — it does not amplify weak signals or provide tone shaping.
Frequently Asked Questions
Q: Does the V-9130-W require power or batteries?
A: No. The V-9130-W operates passively with zero power draw. It requires no external power supply, batteries, or UPS support.
Q: Can I connect both RCA and 3.5mm sources at the same time?
A: The V-9130-W provides dual connector options for flexibility, but it is designed as a single-input module. Connect one source at a time. Parallel connection of both input types simultaneously is not supported and may result in signal mixing or impedance issues.
Q: What is the maximum cable run length from the V-9130-W to the Valcom distribution system?
A: Line-level audio cable runs are typically 50–100 feet without significant signal degradation, depending on cable shielding and quality. For runs longer than 100 feet, consult your system integrator or Valcom technical support to confirm cable specifications and output impedance compatibility.
Q: Is the V-9130-W suitable for outdoor mounting?
A: The V-9130-W is designed for indoor, controlled-environment deployment. It lacks environmental sealing (IP rating) for outdoor exposure. Use only indoors or in weather-protected enclosures.
Q: Can the V-9130-W be wall-mounted vertically, or must it be horizontal?
A: The module is compact and can be mounted in either orientation. Orientation does not affect passive audio conversion performance.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In my experience deploying Valcom audio systems across multi-building facilities, the V-9130-W remote input module solves a real topology problem: the audio source (broadcast equipment, mixing console, media player) is often nowhere near the main PA rack. The V-9130-W lets you locate the source close to where it's operated, then send a clean mono signal back to the central distribution network. That separation is a practical win on larger campuses or industrial sites.
Technical Highlights:
- Passive Operation (No Power Draw): The V-9130-W draws zero watts. This means no power outlet hunting at remote locations, no UPS sizing headaches, and no concern about backup power during facility outages — the audio input stays available as long as the source equipment is running.
- Dual Input Connectors (RCA + 3.5mm): Most integrators carry cable and adapters for both standards, but having both connectors on the module itself eliminates that logistics step. Connect a mixing console via RCA, swap to a portable media device via 3.5mm — no adapters, no installation delay.
- Compact Wall-Mount Form Factor (1.00 lb): At just one pound, the module mounts on standard drywall without needing reinforcement or additional brackets. Installation time is minutes, not hours. Relocation is equally simple if system topology changes.
Deployment Considerations:
- Single Input, Not Parallel: The V-9130-W is designed for one audio source at a time. If you need to switch between multiple sources at a single location, plan for manual cable swapping or consider a selector switch upstream of the module — the V-9130-W itself does not handle source selection.
- Passive Conversion Only: This module does not amplify, equalize, or condition weak signals. If your audio source is already degraded or low-level by the time it reaches the V-9130-W, passive conversion won't fix it — you'll need active preprocessing at the source. Verify signal quality at installation.
- Indoor Only: No IP rating means no outdoor or damp-environment mounting. Keep it behind a wall in climate-controlled space.
The V-9130-W is the right choice for campus-wide PA systems, multi-zone background music distribution, and emergency notification networks where the audio source needs to live in a control room or broadcast station miles from the main speaker rack. It's not a mixer or amplifier — it's a signal format bridge, and it does that job without power, heat, or fuss.
