Valcom S-520B-BK Pendant Speaker 25W Multi-Voltage
Overview
The Valcom S-520B-BK is a low-profile cylinder-style pendant speaker engineered for high-ceiling installations in commercial environments where consistent audio distribution and clean aesthetics matter equally. The critical feature here is the multi-voltage transformer—this single unit handles 8 Ohm, 25V, 70V, and 100V operation without requiring separate transformers or amplification zones. That flexibility eliminates a real integration headache: you can deploy the S-520B-BK across mixed-voltage infrastructure without reworking your audio backbone. Aluminum construction with high-gloss black finish resists corrosion in demanding commercial spaces including atriums, lobbies, restaurants, and open-plan offices. The speaker delivers 25 watts of full-range output, sufficient for clear paging and background music in medium to large open areas—roughly 75–85 dB SPL at normal listening distance depending on room acoustics.
Key Features
- Multi-Voltage Transformer (8 Ohm, 25V, 70V, 100V): Field-selectable via rotary tap switch. Eliminates the need to purchase separate transformers when scaling or migrating voltage domains. A single unit adapts to your infrastructure rather than forcing you to standardize everything at once—particularly valuable in phased rollouts or brownfield integrations where you're working around legacy constant-voltage systems.
- 25-Watt Full-Range Audio Output: Delivers sufficient SPL for intelligible speech (critical for emergency paging and commercial announcements) and balanced music reproduction (1 kHz to 4 kHz for speech clarity, with extended low and high ends for background music). No separate tweeter or woofer means fewer moving parts to fail and simpler installation logistics.
- Rotary Tap Switch (12-Position Selector): Provides field-level gain adjustment without returning to the amplifier rack. Allows fine-tuning of per-zone volume in response to changing occupancy or ambient noise levels—useful for restaurants or retail where background music levels shift through the day.
- Aluminum Housing with High-Gloss Black Finish: Corrosion-resistant construction suitable for high-humidity commercial environments. White finish option (S-520B-W) available for alternating décor schemes. Compact cylinder profile (5.80 inches diameter × 8.80 inches height) integrates into contemporary architectural sightlines without dominating the visual field.
- Suspended Mounting with Included 6-Foot Black Steel Chain: Allows pendant installation from standard T-bar grid or direct structural mounting. Chain length hangs the speaker 6 feet below the mounting point; 6-foot extension chains (model V-1093-BK) available separately for deeper ceiling drops in high atriums or warehouse environments.
- Full-Range Single-Driver Design: Optimized for both speech intelligibility and music clarity across commercial audio bandwidth. No crossovers or separate frequency components—simpler deployment and maintenance compared to multi-way speakers.
- Indoor-Rated Installation: Suitable for climate-controlled interior spaces only. Not rated for outdoor, wet-location, or moisture-heavy deployments (kitchens with direct steam, bathhouses, etc.). Verify environment before specifying.
Integration and Compatibility
The S-520B-BK integrates directly into any standard distributed audio system using constant-voltage amplification. Connect speaker leads to your amplifier output terminals corresponding to your selected voltage domain (25V, 70V, or 100V)—no external transformers, impedance matching devices, or interface equipment required. The rotary tap switch allows you to match the speaker's input sensitivity to your amplifier's output level, accommodating system-level gain variance without returning to the amp rack. This speaker is a passive load—it requires no separate power supply, Ethernet, or control input. If you're running a mixed-voltage infrastructure (some zones at 70V, others at 100V), the S-520B-BK handles both without reconfiguration, reducing cable runs and amplifier channel count.
When to Choose a Different Model
If you require outdoor or wet-location deployment, the S-520B-BK is not rated for that environment—specify an IP67-rated variant from the Valcom catalog. If your installation demands higher output (above 25W) or specialized audio characteristics (horn reinforcement, low-frequency extension), consider a larger or multi-driver model in the same family. For very short ceiling drops (under 6 feet) or direct wall mounting, pendant suspension may not be ideal—explore flush-mount or bracket-mounted alternatives.
Frequently Asked Questions
Q: Can I use the S-520B-BK on both 70V and 100V circuits simultaneously?
A: No. The rotary tap switch selects a single voltage domain for operation. Once set, the speaker operates on that voltage line only. If you need both voltage zones, deploy separate S-520B-BK units on each circuit, each set to its respective voltage.
Q: What happens if I set the rotary tap switch incorrectly?
A: Mismatched tap settings can result in distortion or insufficient output. Always verify the selected tap position matches your amplifier's output voltage before commissioning. Refer to the speaker's input label or installation guide for tap-to-voltage mapping.
Q: Is the included 6-foot chain strong enough for a loaded pendant installation?
A: The black steel chain is rated for typical commercial ceiling loads. The S-520B-BK weighs 3.2 lbs—well within standard T-bar grid and structural attachment capacity. Verify your ceiling structure can support the combined weight (speaker + chain) and use appropriate anchors for your mounting surface.
Q: Can I extend the pendant beyond 6 feet with the extension chains?
A: Yes. Optional 6-foot extension chains (model V-1093-BK) stack with the included chain to lower the speaker further in high-ceiling spaces. Confirm structural load capacity and secure attachment points at the top.
Q: Does the S-520B-BK work with standard commercial audio amplifiers?
A: Yes, provided your amplifier has constant-voltage (70V or 100V) output taps. Connect the speaker leads directly to the tap corresponding to your selected voltage. No separate interface or transformer required.
Q: What's the difference between the S-520B-BK and the white version (S-520B-W)?

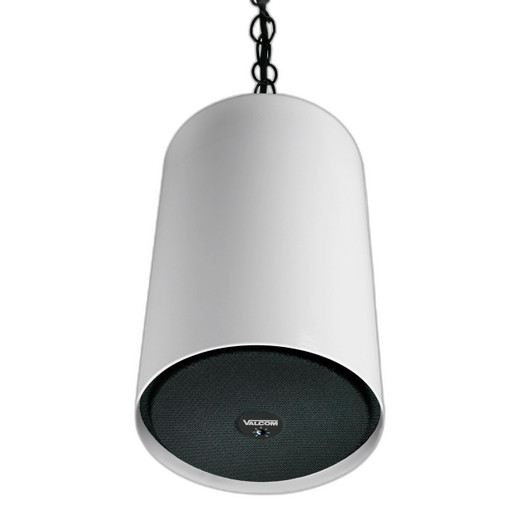

A: Only the finish differs. Both units have identical electrical specifications (25W output, multi-voltage transformer, 12-position tap switch) and mounting hardware. Choose black for dark ceilings or modern interiors, white for light ceilings or clinical/institutional spaces.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The S-520B-BK solves a real problem on mixed-voltage audio systems: you buy one unit and configure it for your voltage domain via a rotary switch, no transformer swap-out required. That flexibility matters when you're integrating into brownfield installations where 70V and 100V zones coexist, and you can't justify separate SKUs for each. The 25-watt output and aluminum construction make this a sensible choice for commercial spaces (restaurants, atriums, retail) where aesthetics and durability must balance budget.
Technical Highlights:
- Multi-Voltage Transformer (25V, 70V, 100V, 8 Ohm): Field-selectable eliminates the need for separate units or external transformers when scaling across voltage domains—a significant cost and installation logistics advantage in phased deployments or retrofits.
- 25-Watt Full-Range Output (75–85 dB SPL typical): Sufficient for intelligible speech paging and balanced background music in medium-to-large open areas. Speech intelligibility peaks in the 1–4 kHz band; the full-range driver handles both speech and music without crossover gaps.
- 12-Position Rotary Tap Switch: Field-level gain control without returning to the amplifier rack—useful for per-zone balancing in spaces with varying ambient noise or occupancy throughout the day.
- Compact Cylinder (5.8" diameter × 8.8" height, 3.2 lbs): Low visual footprint in contemporary interiors; suspended from a 6-foot steel chain integrated into the design, eliminating separate bracket procurement for many installations.
Deployment Considerations:
- Indoor-Only Rating: Not suitable for wet-location, outdoor, or high-humidity environments (kitchens with steam, bathhouses, etc.). Verify your space is climate-controlled before specifying. If you're anywhere near moisture or temperature swings, step up to a weatherproof model.
- Rotary Tap Configuration is Not Dynamic: You must physically rotate the switch to change voltage domains or tap level. This is manual adjustment, not remote control. In installations where you need remote gain balancing across zones, you'll need an external attenuator or zone-specific amplifier outputs.
- Passive Load—No Ethernet or Control Input: The S-520B-BK draws audio only; it requires no power supply, no network connection, no firmware updates. That simplicity is an asset for small installations but a constraint if you want centralized monitoring or zone-wide muting from a control system.
Position the S-520B-BK in restaurant or retail background-music zones where you need clean aesthetics, minimal installation overhead, and the flexibility to adapt to existing 70V or 100V infrastructure without rip-and-replace. The rotary tap switch and multi-voltage transformer make this a practical workhorse for integrators managing mixed-voltage estates.
