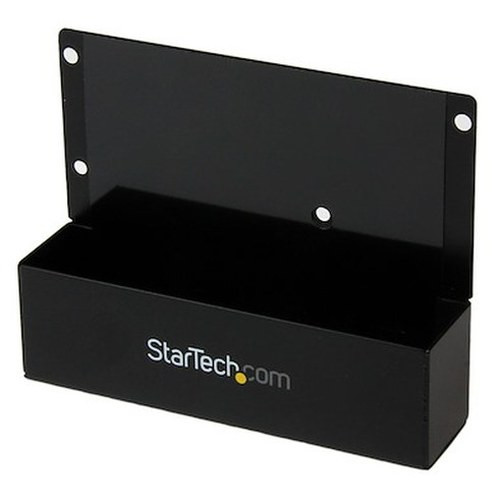

The StarTech SAT2IDEADP allows you to integrate older 2.5-inch or 3.5-inch IDE (PATA) hard drives into modern SATA systems. This adapter is essential when you need to access data from legacy drives or reuse them in a SATA HDD docking station, enclosure, or directly connect to a SATA controller. It bridges the interface gap, enabling compatibility without requiring a new drive purchase. The SAT2IDEADP is designed for straightforward integration into surveillance systems where older storage media might need to be accessed or migrated.
This adapter is compatible with both 2.5-inch (44-pin IDE) and 3.5-inch (40-pin IDE) drives. It connects to standard SATA data (7-pin) and SATA power (15-pin) ports on the host system. The adapter also accepts both 5V DC and 12V DC power inputs via its integrated SP4 (4-pin small drive power) and LP4 (4-pin large drive power) connectors, ensuring it can be powered from most standard power supplies found in PCs and docking stations.
The adapter supports 48-bit LBA, allowing access to drives larger than 137GB. It is rated for data transfer rates up to 133 MBps, aligning with the Ultra ATA/133 standard. The operating temperature range is 5°C to 80°C (41°F to 176°F), suitable for most internal system environments. Storage temperatures range from -40°C to 70°C (-40°F to 158°F).
