StarTech ST121HDBTDK HDMI HDBaseT Extender Kit

Overview

The StarTech ST121HDBTDK is a USB-powered HDBaseT extender kit designed to transmit HDMI video and audio signals over a single Cat5e or Cat6 Ethernet cable. This kit is ideal for extending high-resolution video from a source device, such as a PC or media player, to a remote display in scenarios where running a long HDMI cable is impractical. Its compact form factor and USB power source simplify installation in environments like digital signage, conference rooms, or surveillance monitoring stations. The ST121HDBTDK model supports 4K resolution at 30 Hz and 7.1 surround sound audio.

Compatibility

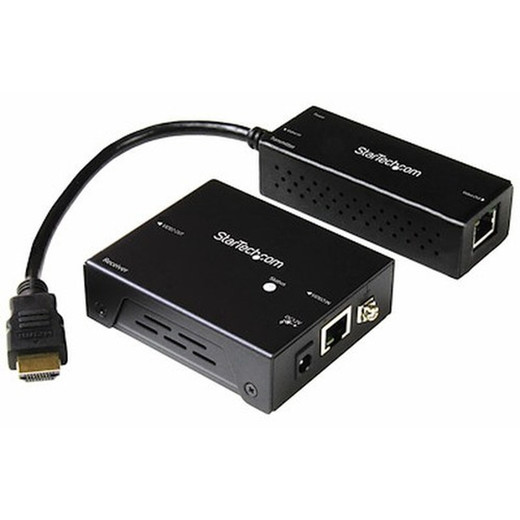

This HDBaseT extender kit is compatible with any HDMI source device and display. It requires one Cat5e or Cat6 Ethernet cable for signal transmission, with a maximum supported distance of 70 meters (230 feet) for 4K@30Hz signals. The kit includes both a transmitter (local) and receiver (remote) unit, each featuring an HDMI input/output and an RJ45 HDBaseT port. It is designed for standard HDMI 1.4 specifications.

Installation Notes

The extender operates on standard 100-240V AC input power, with the included power adapter providing 12V DC at 1.5A to the units. Each unit consumes up to 18 Watts. The operating temperature range is 0°C to 40°C (32°F to 104°F), and humidity should be kept below 80% RH. For optimal performance, use solid-core Cat5e or Cat6 Ethernet cables. The USB power option allows for simpler deployment without needing a separate power outlet at the source device, provided the USB port delivers sufficient power.
