StarTech SV565DUTPU Dual VGA USB KVM Extender over Cat5/Cat6

Overview

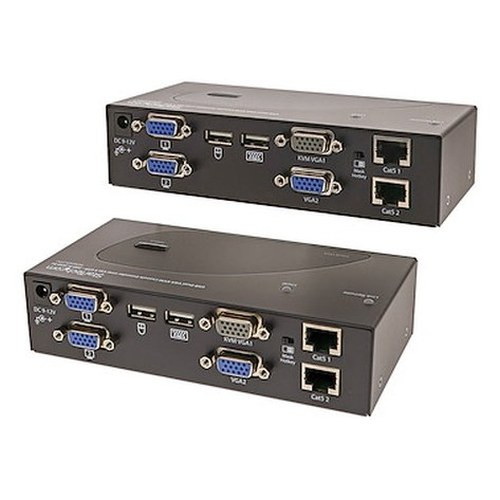

The StarTech SV565DUTPU extends a dual-monitor VGA workstation with full USB keyboard and mouse control up to 200 meters (656 feet) over standard Cat5e or Cat6 structured cabling. If you're running a control room, NOC, or broadcast environment where the operator console needs to sit well away from the host hardware — rack, server room, or utility closet — this extender handles two independent VGA displays simultaneously at resolutions up to 1920x1200, without running separate video cables across the building. The compact transmitter and receiver units measure 6.1 x 3.1 x 1.6 inches and weigh just under 1.2 lbs combined, so they fit cleanly into tight console furniture or shallow rackmount shelving.

Key Features

• 200m (656ft) extension over Cat5/Cat6: Reaches the full length of most enterprise floor plans on existing structured cabling — no new conduit runs, no proprietary cable. If your IT closet is already wired with Cat5e, you can provision this without a facilities ticket.
• Dual VGA output at 1920x1200: Both displays run at full WUXGA resolution. That matters in control room and monitoring scenarios where operators need a wide desktop across two screens — 1920x1200 keeps pixel density high enough for detailed map overlays, video grids, or multi-pane dashboards without downscaling.
• USB 2.0 console interface: Keyboard and mouse connect via USB 2.0 at the remote end, so there's no need for legacy PS/2 peripherals. USB HID devices are handled natively — swap peripherals without re-pairing.
• 5.4W total power consumption: Drawing only 5.4W from a 100–240V AC supply (auto-ranging, so it works internationally), this unit won't create measurable load on a UPS or power strip. The 12V DC / 1.5A power brick is included and handles global mains without an adapter.
• 0°C to 40°C (32°F to 104°F) operating range: Covers standard indoor environments — control rooms, operations centers, office server rooms. Not rated for outdoor or unheated plant environments, so plan accordingly for industrial installs with ambient temperature swings.
• Universal AC input (100–240V, 0.2A): Auto-switching power supply means the same unit deploys in North America, Europe, or Asia without a step-down transformer. Useful for global enterprise rollouts where standardizing on one SKU matters.
• 3-year manufacturer warranty: StarTech backs the SV565DUTPU with a 3-year warranty — a longer coverage window than most KVM accessories in this class, which is relevant when budgeting refresh cycles for long-term control room installations.

Integration and Compatibility

The SV565DUTPU is designed for any host system with a VGA video output and USB ports — covering the wide installed base of legacy workstations, industrial PCs, and embedded control systems that still ship with analog video. The Cat5/Cat6 runs between transmitter and receiver must be point-to-point (no patch panels in the signal path at full distance). For deployments where you need to share one host across multiple remote locations, or switch between multiple hosts from one console, a KVM switch upstream of the transmitter handles that topology. The USB 2.0 console interface supports standard HID keyboard and mouse devices; non-HID USB devices (mass storage, webcams) are not passed through.

Frequently Asked Questions

Q: What cable type does the SV565DUTPU require between transmitter and receiver?

A: The SV565DUTPU runs over Cat5, Cat5e, or Cat6 structured cabling. The connection must be a direct point-to-point run — avoid patch panels or keystone jacks in the signal path if you need to reach the full 200m distance, as additional terminations can degrade signal quality at longer runs.

Q: Can the SV565DUTPU extend two different video sources to the two monitors, or does it mirror one source?

A: The SV565DUTPU extends the dual-VGA output of a single host — both displays are driven from one computer, as a dual-monitor desktop. It does not function as a two-input switch; both outputs originate from the same host machine.

Q: What is the maximum resolution supported at the full 200m distance?

A: The SV565DUTPU supports up to 1920x1200 at 200m (656ft). Resolution does not degrade progressively with distance on this unit — the rated max is achievable at the full extension range on quality Cat5e or Cat6 cable.

Q: Does the SV565DUTPU pass through USB devices other than keyboard and mouse?

A: The USB 2.0 console interface on the SV565DUTPU is designed for HID peripherals — keyboard and mouse. Non-HID USB devices such as mass storage drives or USB webcams are not supported over the extension link.

Q: What is the warranty on the SV565DUTPU?

A: StarTech provides a 3-year manufacturer warranty on the SV565DUTPU.

Q: Is the SV565DUTPU compatible with international mains power?

A: Yes. The included power supply is auto-ranging, accepting 100–240V AC at 0.2A, making it compatible with mains power in North America, Europe, and most of Asia without a voltage converter.

Ted Perry

The spec that determines whether the SV565DUTPU fits your project is the 200m Cat5 extension distance paired with dual 1920x1200 VGA — that combination covers the majority of legacy control room separation requirements without pulling new coax or fiber. I've seen this unit specified for utility NOCs and broadcast control suites where the operator desk is physically separated from the server rack by a fire-rated wall or a long cable tray run, and the existing Cat5e horizontal run is already in place.

Technical Highlights:

• 1920x1200 at 656ft: Full WUXGA on both displays at the rated maximum distance — no resolution compromise at range, which matters when operators are reading multi-column dashboards or video grids that need every pixel.
• 5.4W power draw: At 5.4W total, this unit adds essentially nothing to a UPS load calculation. On a 1500VA UPS supporting a control console, the SV565DUTPU is a rounding error — practical in dense console deployments where every watt counts.
• 100–240V auto-ranging input: The onboard PSU handles global mains at 0.2A draw, which simplifies procurement for enterprise customers standardizing on a single SKU across international sites.

Deployment Considerations:

• Plan your Cat5e/Cat6 runs as direct home-runs from transmitter to receiver. Every patch panel or keystone junction in the path introduces signal degradation — at 200m you have no margin to spare. Verify cable continuity and crosstalk before commissioning.
• The 0°C to 40°C operating range is firm. If the transmitter unit is located in an equipment room that exceeds 40°C during summer load — common in under-cooled server closets — thermal throttling or instability is a real risk. Verify ambient temperature at the transmitter location before install.

The SV565DUTPU is a practical fit for control room builds and NOC console separations where VGA-based workstations are still in service and the infrastructure team wants to reuse existing Cat5e horizontal runs rather than pull new cabling. It's not the answer for IP-based KVM, HDMI, or DisplayPort environments — but for legacy dual-VGA over structured cabling at distance, the specs are solid and the 3-year warranty provides reasonable lifecycle coverage for a fixed installation.
