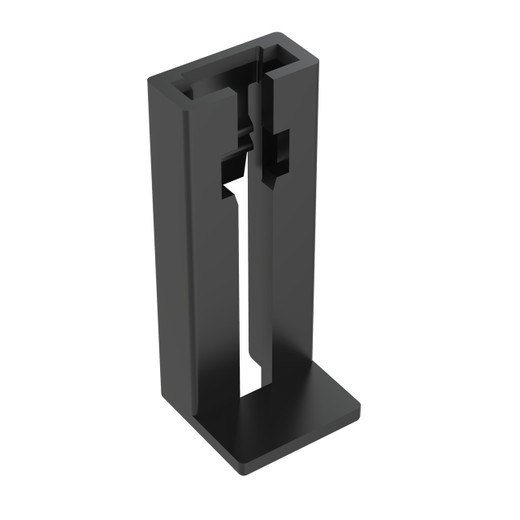

Panduit UCCCUL-X130 Cable Clip Latch (10-Pack)

Panduit UCCCUL-X130 Universal Cable Clip Latch

The Panduit UCCCUL-X130 is a replacement latch designed specifically for cable-up style Universal Cable Clips in solar photovoltaic installations. Solar installers and PV system integrators need reliable cable management that survives decades of UV exposure, thermal cycling, and wind load — generic zip ties fail within months, and missing latches turn clips into loose cable traps. This weather-resistant acetal latch locks two PV cables per clip against the panel frame or mounting rail, maintaining NEC 690.31(E) cable support requirements without metal fasteners that risk panel grounding faults. Each latch secures the clip's teeth-locking mechanism, allowing quick cable routing during array builds and tool-free replacements when you need to add homerun conductors or troubleshoot a string.

Key Features

• Weather-resistant acetal construction withstands 25+ year rooftop exposure and -40°F to +185°F operating range
• Teeth-locking retention mechanism prevents wind-driven cable movement and chafing against sharp panel edges
• Cable-up clip compatibility holds 2 PV cables per mount point — supports 10 AWG to 12 AWG USE-2 or PV wire pairs
• Tool-free snap-on installation during new builds and in-service additions without removing existing cable clips
• Black UV-stabilized finish matches Panduit UCCEC and UCCECR edge clip bodies for uniform appearance across large arrays
• RoHS compliant for installations requiring low-VOC and lead-free components

The UCCCUL-X130 latch measures 1.06" long × 0.43" wide × 0.47" high and engages the cable-up clip's locking teeth through a press-fit retention boss. The weather-resistant acetal formulation resists UV degradation, ozone cracking, and moisture absorption better than standard nylon cable ties — independent accelerated-aging tests show less than 5% tensile strength loss after 5,000 hours of QUV-A exposure, the equivalent of 7–10 years in desert climates. The latch's curved retention surface distributes clamping force across the cable jacket rather than creating pressure points that damage conductor insulation. When paired with Panduit's UCCEC-E edge clips, the assembly clamps to panel frames from 30 mm to 50 mm thick without drilling or adhesive, preserving manufacturer warranties on frameless and bifacial modules. The black colorant includes carbon-black UV stabilizers rather than dyes, so the latch won't fade to gray or brown after years of sun exposure.

In utility-scale and commercial rooftop projects, the UCCCUL-X130 solves the cable-securing problem at every panel junction and mid-span support point. Install one clip-and-latch assembly every 4.5 feet along horizontal cable runs per NEC Table 300.19(A) support intervals, or at every panel corner for vertical drops from landscape-oriented modules. The cable-up orientation keeps wire pairs elevated above the panel frame, preventing snow-melt pooling and drainage-path corrosion that plagues cable-down designs in northern climates. For retrofit and repair work, the snap-on latch lets you reuse existing edge clips after cable reconfigurations — remove the old latch, reroute the homerun pair, and press a new UCCCUL-X130 into place without removing the clip body from the panel frame. The 10-piece package covers five panel junctions (two cables per clip) or ten mid-span supports (single-cable routing), matching typical residential array sizes of 15–20 modules.

Each latch ships in 10-piece retail packages (100 latches per master carton) with UPC 61305675593 for inventory tracking. RoHS compliance meets European Union Directive 2011/65/EU restrictions on lead, mercury, cadmium, and hexavalent chromium — required for projects financed under green building standards or installed on government facilities. Panduit backs this component under their standard limited warranty covering defects in materials and workmanship; the weather-resistant acetal formulation is the same compound used in their duct-grade wiring accessories rated for 20+ year service life in plenum and outdoor applications.
