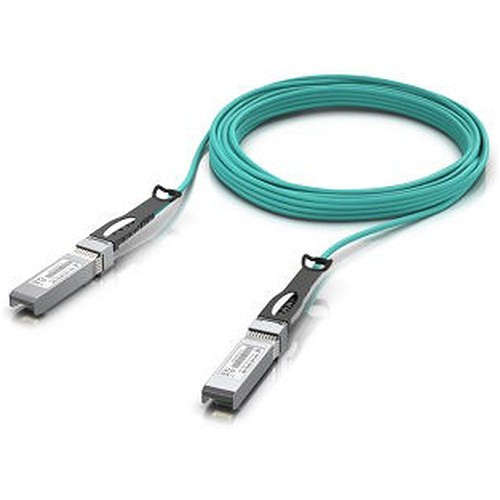

Ubiquiti UACC-AOC-SFP10-30M 10 Gbps Direct Attach Cable
Overview
The Ubiquiti UACC-AOC-SFP10-30M is a 10GBase active optical cable (AOC) engineered for high-speed interconnects between SFP+-enabled network equipment. With a 30-meter reach, this cable delivers sustained 10 Gbps throughput over fiber without the cost of separate transceiver pairs — a meaningful saving when bridging distances in data centers, enterprise backbones, or distributed network installations where copper would either fall short or demand expensive active electronics. Direct fiber also eliminates electromagnetic interference, which matters in RF-dense or electrically noisy environments.
Key Specifications & Deployment Benefits
- 10 Gbps throughput: Sustains line-rate performance for bulk data transfers, video ingest from multiple camera systems, or NVR replication without bottlenecking. No speed step-down across longer runs.
- 30-meter maximum distance: Spans most data center racks, cross-building backbone links, and warehouse camera network segments without intermediate regeneration. Longer than standard copper SFP+ direct attach (typically capped at 10 m), yet shorter than multi-mode fiber with separate optics — choose this when 30 m fits your topology exactly.
- Dual SFP+ connectors: Plugs directly into any SFP+ port on Ubiquiti UniFi switches, enterprise routers, or third-party equipment certified for 10GBase-AOC — no additional adapters or optics required. Each end terminates identically, so installation direction doesn't matter.
- Active optical design: Built-in signal conditioning means no passive transceiver negotiations to troubleshoot. Cable either passes traffic at full 10 Gbps or it doesn't — diagnostics are straightforward.
- Fiber-based transmission: Immunity to EMI and RFI eliminates a class of environmental issues that plague long copper runs in industrial settings, broadcast facilities, or sites with high-power RF transmission.
- Standards-compliant: 10GBase-AOC compliance ensures interoperability across vendor equipment that supports this standard, avoiding proprietary lock-in for this critical link.
Integration & Compatibility
Install the UACC-AOC-SFP10-30M between any two SFP+ ports without configuration. It pairs seamlessly with Ubiquiti UniFi switching infrastructure and third-party network equipment—routers, aggregation switches, NVRs, and media converters—that conform to the 10GBase-AOC specification. No firmware updates, no console access required; the cable operates at the physical layer.
When to Choose a Different Model
If you need longer distances (50–100 m+), investigate active optical cables with longer reach ratings or multi-mode LC fiber with separate SFP+ transceivers. If your switch lacks SFP+ ports, you'll need a managed switch with SFP+ uplink support first. For shorter runs (under 10 m), standard copper SFP+ DAC cables cost less and eliminate the fiber-handling concern, though they offer no EMI advantage.
Frequently Asked Questions
Q: Is the UACC-AOC-SFP10-30M compatible with my UniFi Dream Machine Pro?
A: Yes, if your specific model has SFP+ ports. Verify your device's port layout in its datasheet; most enterprise UniFi gateways and aggregation switches do. Standard RJ-45 Ethernet ports require a different type of connection.
Q: Can I run this cable outdoors?
A: The cable itself is rated for indoor and controlled outdoor environments. For direct sun exposure, UV-rated conduit or innerduct is recommended to protect the jacket over time.
Q: Does the UACC-AOC-SFP10-30M require power?
A: The cable's active electronics draw minimal power supplied by the host SFP+ ports via the connector pins. No separate 12V supply or PoE injection needed.
Q: What happens if I exceed 30 meters?
A: Signal loss increases beyond 30 m; you risk packet errors, link flapping, or complete link failure. Measure your run carefully before ordering. If you're near the limit, a longer-reach AOC or separate transceivers are safer choices.
Q: Can I use this cable in a high-EMI environment like a broadcast or RF facility?
A: Yes. Fiber is inherently immune to electromagnetic interference, making AOC cables ideal for RFI-dense sites where copper SFP+ DAC would require additional shielding or ferrite filtering.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UACC-AOC-SFP10-30M solves a specific networking problem: you need 10 Gbps throughput across a distance (30 m) that rules out passive copper DAC and justifies fiber, but you don't want the transceiver complexity or cost of a full fiber pair. The active optical design is the key — it carries the signal conditioning inside the cable jacket, so your switches see a plug-and-play 10 Gbps link with no configuration.
Technical Highlights:
- 10GBase-AOC standard compliance: Guarantees interoperability across equipment from Ubiquiti, Cisco, Arista, and others — you're not locked into a vendor's proprietary format.
- 30-meter distance: Bridges multiple rack rows in a data center or connects buildings in a campus network without intermediate regeneration. Fiber signal doesn't degrade the way copper does over long runs.
- Embedded active electronics: The signal conditioning is factory-tuned; no field calibration or link negotiation delays. When you plug it in, either it works at line rate or there's a physical break to diagnose.
Deployment Considerations:
- Verify SFP+ port availability on both ends — RJ-45 ports require a different media type entirely. UniFi switches with SFP+ uplinks are a natural fit; enterprise routers, aggregation switches, and NVRs with 10 GbE ports are equally compatible if they expose SFP+.
- Watch the 30-meter limit carefully in long-distance backbone designs. Signal loss at 35–40 m is unpredictable; if you're uncertain about your cable run, measure it twice and leave margin. A longer-reach AOC or LC multi-mode with separate transceivers is the safer upgrade path.
- Fiber requires gentler handling than copper — no sharp bends, no crushing or kinking. If this cable is going into a patch panel or under floor tile, route it with cable trays and avoid tight loops.
Deploy the UACC-AOC-SFP10-30M when you're bridging a data center backbone, connecting a remote NVR cluster, or feeding a aggregation point that's beyond copper DAC range but doesn't justify the cost and complexity of full LC fiber with separate optics. It's a straightforward, standards-compliant middle ground.
