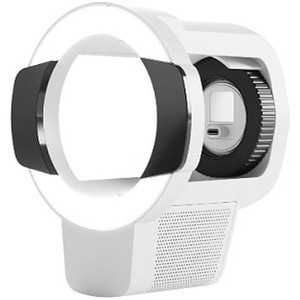

Ubiquiti UACC-AI-PRO-ENHANCER IR LED, Floodlight & Radar Accessory
Overview
The UACC-AI-PRO-ENHANCER is a modular accessory that extends Ubiquiti AI Pro cameras with three distinct sensing and illumination capabilities: long-range infrared illumination, white-light floodlight, and radar-based motion detection. This accessory is designed for integrators and facility managers who need to augment AI-based video analytics with thermal reach and non-visual motion triggers — particularly useful in scenarios where lighting conditions vary or where you need independent motion detection that doesn't rely on image processing.
Key Features
- 40 m infrared range: Extends night-vision capability far beyond the camera's native low-light performance. This translates to usable detail on perimeter fences, parking areas, and access points in total darkness — eliminating reliance on ambient light.
- 600 lumen 5700K floodlight: Provides active white-light illumination at daylight color temperature. At 600 lumens, this is sufficient for medium-range area lighting (typical for 2–5 m mounting heights) without washing out facial features or creating harsh shadows that degrade AI recognition.
- Radar motion detection to 35 m (vehicles) and 20 m (persons): Independent of image-based analytics. Radar triggers are useful as a redundant motion source, a backup alert mechanism, or a low-compute alternative to AI when you need simple presence/motion confirmation. The 110° horizontal field of view aligns with typical camera coverage angles.
- Radar distance accuracy to 0.5 m: Precise enough to filter out wind-blown debris or animals near the camera while still triggering on human or vehicle movement at meaningful range.
- Direct integration to AI Pro via 5V DC: Powers entirely through the camera's existing connection — no additional wiring or PoE injector needed. The 15W consumption (3A @ 5V) is modest enough that most AI Pro installations will not require camera PoE upgrades.
- Aluminum alloy and polycarbonate enclosure: Robust outdoor housing that resists UV degradation and corrosion. The mix of materials balances thermal dissipation (from the IR LED array and floodlight) with UV resistance.
- NDAA compliant; FCC, IC, CE certified: Meets U.S. federal procurement standards for sensitive facilities and international regulatory requirements. Eliminates certification risk for government and enterprise deployments.
- Operating range −30 to 50°C in up to 90% noncondensing humidity: Suitable for temperate to cold outdoor climates. The upper temperature limit is typical for outdoor accessories in moderate climates; in extreme heat (hot rooftops, southern exposures), ensure 0–30° mounting tilt to avoid thermal stress to optics and LED arrays.
- Managed through UniFi Protect web and mobile applications: Radar and illumination settings integrate into the existing UniFi Protect dashboard — no separate management console. Integrators can enable/disable radar motion, adjust sensitivity, and monitor LED health from the same interface as the camera.
Integration & Compatibility
The UACC-AI-PRO-ENHANCER mounts directly to the AI Pro camera body using integrated hardware. The accessory ships paired and ready for firmware control via UniFi Protect. Recommended mounting height is 2–5 m at tilt angles between 0–30° for optimal radar and floodlight coverage. If you are deploying outdoor IP cameras with UniFi Protect, ensure your NVR or cloud controller is running a recent firmware version that recognizes radar sensor inputs — this is a newer feature and may require a software update on legacy installations.
When to Choose This Accessory vs. Alternatives
The UACC-AI-PRO-ENHANCER is a good fit if you already own or are purchasing AI Pro cameras and need to extend coverage into low-light areas, add independent motion detection, or light dark zones. If you are building a net-new deployment and need integrated floodlight + radar from the start, consider whether a purpose-built turret or dome camera with built-in illumination might reduce accessory overhead. However, if you have existing AI Pro cameras and want to retrofit them selectively, this accessory avoids camera replacement.
Frequently Asked Questions
Q: Does the UACC-AI-PRO-ENHANCER work with other Ubiquiti camera models?
A: No. This accessory is designed exclusively for the AI Pro camera. It mounts directly to the AI Pro housing and requires the AI Pro's 5V DC power connector and firmware support.
Q: What is the maximum detection range for persons vs. vehicles?
A: Persons are reliably detected to 20 m; vehicles to 35 m. Both use the same 110° horizontal radar beam. Detection accuracy improves with proximity and decreases with small or slow-moving targets.
Q: Can I disable the floodlight or radar independently?
A: Yes. UniFi Protect allows you to toggle the floodlight and radar motion settings separately, so you can enable IR + floodlight without radar, or radar alone, depending on your use case.
Q: Is the IR illumination safe for human eyes?
A: The infrared LED operates at 850 nm in the standard surveillance band. It is not visible to the human eye and poses no hazard under normal use. The floodlight is standard white light and should not be aimed directly at faces during extended exposure, but is safe for general outdoor illumination.
Q: What is the power draw during normal operation?
A: Maximum consumption is 15W (3A @ 5V). Actual draw varies depending on IR intensity, floodlight duty cycle, and radar active time. In typical deployments with intermittent floodlight use, average draw is lower.
Q: Does this accessory require a separate firmware license?
A: No. The accessory is recognized and managed within the standard UniFi Protect license scope of the AI Pro camera.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UACC-AI-PRO-ENHANCER is a solid retrofit option if you have AI Pro cameras already deployed and need to extend their reach into dark zones or add a non-visual motion trigger. The 40 m IR and 600 lumen floodlight are practical specifications — not marketing fiction — that translate to usable light at 3–5 m mounting heights on most commercial properties. The radar addition is where this accessory earns its place: independent of the camera's AI pipeline, it provides a reliable backup motion source that doesn't tax compute or storage bandwidth.
Technical Highlights:
- 40 m IR + 600 lm floodlight tandem: Covers the common scenario where you need both passive IR for night vision and active white light for forensic-grade video clarity. Most competing retrofit illuminators pick one or the other; this covers both.
- Radar to 35 m (vehicles) / 20 m (persons) with 0.5 m accuracy: Meaningful range for perimeter and parking lot deployments. The 0.5 m distance accuracy filters animal/debris noise without requiring AI processing — saves compute cycles on resource-constrained NVRs.
- 15W total draw via 5V DC: Modest enough that it won't force a camera power-supply upgrade in most installations. No PoE+ injection hassle, no separate 12VDC wiring runs. That's a real integration win on retrofit jobs.
- UniFi Protect native management: Floodlight and radar toggles sit in the same dashboard as the camera — no parallel management consoles, no API scripting to sync settings. This reduces operational friction on multi-camera estates.
Deployment Considerations:
- Radar is effective in open spaces (parking, fence lines, open grounds) but degrades in dense clutter or behind metal obstacles. If you are mounting this on a building with heavy structure nearby, test radar range before committing to alert rules based on detection alone.
- The 0–30° mounting tilt recommendation is strict. Beyond 30° tilt, both radar beam coverage and floodlight throw diminish. Don't improvise steep angles hoping for better long-range reach — the math doesn't work.
- NDAA compliance is real and documented — this accessory clears federal procurement gates. If your customer base includes government or sensitive-sector accounts, this is a genuine differentiator versus generic IR spotlights.
- The floodlight is 5700K (daylight), which is ideal for video but may create light trespass on adjacent properties. Consult the site layout and neighbor tolerance before lighting up a large area at night.
Position the UACC-AI-PRO-ENHANCER as a selective retrofit for existing AI Pro deployments that need night-vision depth, supplemental motion sensing, or regulated procurement compliance. It's not a catch-all accessory — it's a specific answer to "I have an AI Pro camera, but I need more reach and redundant motion detection in this particular zone." For new builds, evaluate whether an integrated camera with built-in floodlight/radar reduces cable and configuration overhead, but for retrofit and selective enhancement on existing UniFi Protect estates, this accessory is efficient and operationally straightforward.
