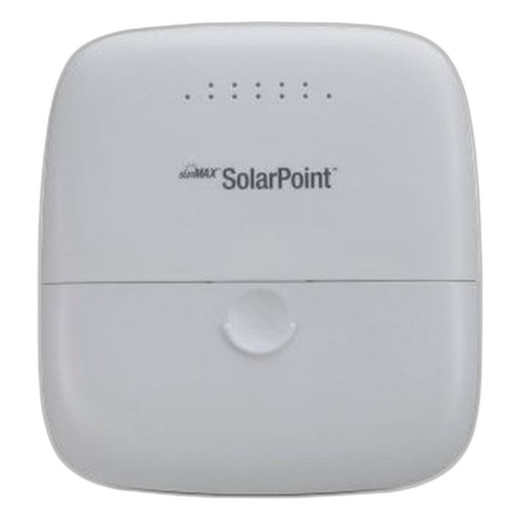

Ubiquiti SM-SP-40 MPPT Solar Charge Controller

Ubiquiti SM-SP-40 MPPT Solar Charge Controller

Overview

The Ubiquiti SM-SP-40 is a remotely managed Maximum Power Point Tracking (MPPT) solar charge controller purpose-built for distributed wireless infrastructure deployments where grid power is unavailable or unreliable. It accepts photovoltaic input across a wide voltage range (10–60V DC via H4 connectors) and regulates the output to a stable 24V at 7A maximum current, delivering clean, controlled power to wireless base stations, IP cameras, access points, and outdoor network devices. MPPT operation means the controller continuously adjusts its input impedance to extract maximum power from the solar panel array under varying light and temperature conditions — versus fixed-voltage regulators, this efficiency gain translates to real charging time savings and extends battery runtime in cloud cover or low-light scenarios.

Key Features

• 24V 7A regulated output: Sufficient to power a small wireless base station or multiple outdoor IP cameras without requiring oversized battery banks or additional regulators. Real-world benefit: simpler power architecture on remote tower sites.
• MPPT charging topology: Dynamically tracks the solar panel's optimal operating point, recovering 15–25% more energy per watt of installed solar capacity compared to PWM (pulse-width modulation) controllers. For a 200W panel array, that's the equivalent of 30–50W of recaptured charging capacity — material when your battery bank is undersized or you operate in marginal light conditions.
• 10–60V input range: Accepts most standard 24V, 48V, or hybrid panel configurations without derating or external boost converters. Flexibility to mix panel types or upgrade panels later without replacing the controller.
• Four 10/100 Mbps Ethernet ports: Connects directly to network infrastructure for management and monitoring. No serial port workarounds or clunky external gateways. Integration with network switches is straightforward — each port is independent and can segment traffic if needed.
• WiFi connectivity: Out-of-band management and status checks without tying up Ethernet bandwidth. Useful for initial commissioning and diagnostics when wired access is temporarily unavailable.
• UISP management platform integration (v2.0.0+): Centralized monitoring, firmware updates, and alerts for solar charge state, battery voltage, and controller temperature across hundreds of remote sites. Eliminates manual site visits for status checks and simplifies predictive maintenance when battery performance degrades.
• IPX4 weatherproofing with UV-stabilized enclosure: Resists splashing rain and direct sun exposure without corrosion or material degradation. Not rated for submersion (that would require IP67), but sufficient for rooftop or pole-mount installations where occasional heavy rain and wind-blown spray occur. Rated for 35–60 mm pole diameters, fitting standard tower mounting hardware.
• Operating range -20 to 50°C (-4 to 122°F): Handles cold overnight temperatures in northern climates and high-sun desert environments without thermal shutdown — a real consideration if your deployment spans seasonal extremes. At the cold end, charging efficiency drops slightly; at the hot end, the controller may reduce output current to protect the power stage, but it does not shut down entirely.
• SNMP and NTP client support: Pulls time from your network time server and reports metrics via SNMP — integrates into existing NOC workflows without custom API scripting or proprietary software.
• NDAA compliant: Meets U.S. Department of Defense supply chain security requirements. Relevant for government contractors and federal system integrators.
• FCC, IC, and CE certified: Approved for deployment in North America, Canada, and European markets. No additional testing or variance applications needed for these regions.

Integration and Deployment Considerations

The SM-SP-40 is designed to sit at the top of a power chain: solar panel array → SM-SP-40 → 24V battery bank (optional, depending on site duty cycle) → load equipment. The controller includes built-in reverse-polarity protection and overvoltage clamping on the input to guard against field wiring mistakes. On the output side, the 24V regulated bus is protected by an internal current limit set at 7A; exceeding this (via short circuit or overload) will trigger shutdown rather than equipment damage.

Network integration is straightforward. All four Ethernet ports are live by default; assign them to your management VLAN if traffic segregation is required, or bridge them for flat network access. WiFi is disabled by factory default — enable it only if your site has adequate coverage and you accept the minor RF footprint. UISP auto-discovery requires the controller and your management server to be on the same L2 broadcast domain during initial provisioning; once adopted, communication happens via unicast and will cross VLANs or WAN links if routing allows.

For pole mounting, ensure the mounting bracket can support the controller's weight and wind load, and leave clearance for the H4 input connector and Ethernet breakout. Cable strain relief is your responsibility — use conduit or clamps to prevent mechanical stress on the connectors, especially at remote unmanned sites where vibration and thermal cycling are constant.

When to Choose a Different Approach

If your site has grid power or a stable generator backup, a solar controller adds complexity without benefit — consider a standard 24VDC regulated power supply instead. If you need 48V output (common for some base station designs), the SM-SP-40 output voltage cannot be adjusted; you would need a higher-voltage variant or a separate DC-DC converter. If the site requires battery monitoring beyond simple voltage telemetry (e.g., state-of-charge inference, capacity trending), the SM-SP-40 has no integrated battery sensor interface — external monitoring equipment would be required.

The IPX4 rating also excludes direct water submersion; if the controller must be installed in a wet cabinet or below-grade enclosure with condensation risk, IPX7 or full IP67 equipment would be more appropriate.

Frequently Asked Questions

Q: Can the SM-SP-40 charge a 48V battery bank?

A: No. The SM-SP-40 output is fixed at 24V 7A. For 48V systems, you would need an external DC-DC converter (24V to 48V) or a different solar controller rated for 48V output.

Q: Does the SM-SP-40 work with Ubiquiti UISP without Internet connectivity?

A: Yes, provided your UISP management server is on the same local network as the SM-SP-40 or reachable via your WAN routing. UISP does not require Internet access to manage local devices, only network reachability.

Q: What happens if I exceed the 7A output current?

A: The SM-SP-40 has internal current limiting. If the total load exceeds 7A, the controller will reduce or cut output to prevent damage. This is a protection feature, not a fault condition — reduce the load and operation resumes.

Q: Is the SM-SP-40 suitable for marine or coastal environments?

A: IPX4 protection handles rain splash and wind-blown salt spray, but extended direct salt-water exposure (e.g., tide spray on a pier) will eventually corrode connectors and enclosure seams. For full coastal resilience, consider stainless steel accessories and enclosure drains, or specify a fully sealed IP67 variant if available.

Q: Can I daisy-chain multiple SM-SP-40 controllers on the same battery bank?

A: Not recommended without careful load balancing and reverse-flow protection. Each controller will attempt to regulate the output voltage independently, leading to potential conflicts. Consult the datasheet for guidance on parallel configurations, or use a single larger controller if capacity allows.

Q: Does the SM-SP-40 support PoE output to power network devices?

A: No. The SM-SP-40 is a solar charge controller, not a PoE injector. It provides 24V regulated output for powering the site's main loads (base station, batteries, etc.). To power PoE devices, connect a separate PoE injector or managed switch downstream of the 24V bus.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SM-SP-40 fills a specific niche: remote wireless sites where you need to maximize solar harvesting efficiency and have wired management infrastructure in place. MPPT topology is the key differentiator here — it's not just a marketing term. On a marginal solar installation (say, a single 100W panel in a site with frequent cloud cover), the difference between MPPT and a fixed regulator can mean the difference between a battery bank that fully charges by afternoon versus one that trickles along all day. The controller's integration with UISP gives you real-time visibility into charging performance and lets you catch battery degradation early, before an unexpected outage.

Technical Highlights:

• MPPT efficiency gain: 15–25% more energy extraction per watt of panel capacity versus PWM — translates directly to faster battery top-up and extended site uptime in low-light conditions.
• Wide input range (10–60V): Eliminates the need to match panel voltage exactly; you can scale the array up or swap panel types without replacing the controller.
• Integrated Ethernet + WiFi: No serial-only management bottleneck. Four independent 10/100 Mbps ports let you network the controller with site equipment, and WiFi provides out-of-band diagnostics without dedicated data lines.
• UISP adoption: Centralized alerting, firmware push, and state tracking across dozens of remote sites — eliminates manual site visits just to check battery voltage.
• Current limiting at 7A: Protects against load surges and field wiring faults without causing cascading equipment damage.

Deployment Considerations:

• UISP is a prerequisite for remote value: The SM-SP-40 without UISP is serviceable but you lose centralized monitoring. If you're not running UISP, the WiFi provides a fallback, but expect more manual site visits.
• IPX4 is splash-resistant, not submersion-proof: Pole-mount installations are fine; rooftop cabinets with standing water or below-grade conduit boxes are not. Plan your enclosure accordingly.
• No battery state-of-charge inference: The controller reports voltage only. If you need accurate SoC trending for predictive battery replacement, integrate an external DC power analyzer or MPPT controller with battery monitoring (different product line).
• 7A output is the hard limit: Do not oversize your load expecting the controller to step up. If you need more current, you need a larger controller or multiple units with careful isolation.

The SM-SP-40 is best deployed on managed wireless networks where the NOC has access to UISP and where battery-backed uptime is non-negotiable. It's overkill for temporary deployments or single-site hobby installations, and it's undersized for high-power base stations running on solar. For a distributed network of 50+ remote access points or backhaul radios, the centralized energy visibility and firmware update capability justify the investment in UISP integration.
