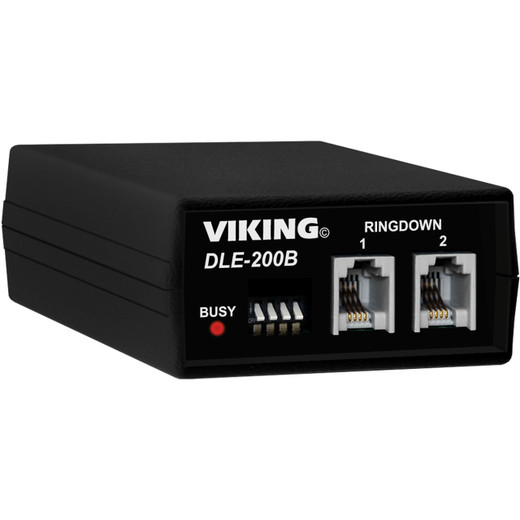

Viking Electronics DLE-200B Two-Way Phone Line Simulator

The Viking Electronics DLE-200B is a self-contained telephone line simulator that generates dial tone, DC talk battery, and standard or distinctive ringing — without requiring a live POTS line. If you're commissioning intercoms, testing fax machines, validating alarm dialers, or qualifying modems in a lab or field environment, the DLE-200B eliminates the dependency on active phone service entirely. It supports data speeds up to 28,800 bps, making it a practical tool for legacy modem and fax commissioning work that still appears in commercial security and building automation deployments.

Key Features

• Dial Tone at -20 dBm: Delivers a precisely calibrated dial tone signal so connected devices behave exactly as they would on a real central-office line — critical when commissioning alarm communicators that validate line presence before seizing it.
• 32V DC Talk Battery: Matches standard PSTN loop voltage, so phones, modems, and fax machines complete their handshake sequences without modification. No surprises during equipment qualification testing.
• 28,800 bps Maximum Data Rate: Adequate for legacy modem dialers, POTS-based alarm panels, and fax devices. If you're validating anything faster than V.34, you'll need a different solution — but for the installed base of traditional alarm communicators, 28.8k is exactly right.
• CPC Break Signal — 2-Second or 150 ms: Both standard and short-duration CPC (Calling Party Control) disconnect signals are supported, so you can test alarm panels and door-entry systems that rely on CPC for hang-up detection without engineering workarounds.
• 2.0 REN Ringer Load: Handles up to two standard REN devices simultaneously, letting you test multi-device ring configurations — useful when validating ring-down circuits or multi-extension intercom wiring.
• 2.6-Mile Loop Length: Simulates the electrical characteristics of a 2.6-mile local loop, which means distant-device behavior (impedance, attenuation) is faithfully reproduced. Lab results translate directly to field performance.
• Dual RJ11 Connections: Two RJ11 jacks support point-to-point two-way communication setups — connect a phone or modem to each port and run full end-to-end call simulation without a central office in the loop.
• UL-Listed 120VAC Adapter: Ships with a UL-listed 120VAC/13.8VAC 1.25A adapter drawing 600mA maximum — no sourcing a proprietary power supply, no guessing at voltage requirements.

Integration and Compatibility

The DLE-200B (often searched as DLE 200B) works with any equipment designed for standard PSTN loop conditions: telephone handsets, analog modems, fax machines, POTS-based alarm dialers, door-entry intercoms, and ring-down circuits. It is not a VoIP gateway or SIP adapter — it simulates physical loop conditions only. Pair it with Viking Electronics communications equipment for complete lab bench or field commissioning setups. Integrators deploying access control intercoms or traditional alarm panel dialers will find it directly applicable. For planning analog infrastructure alongside modern networks, the PoE planning guide covers the network side of hybrid deployments. Operating range is 32°F to 90°F at 5–95% non-condensing humidity — suitable for conditioned equipment rooms and most US interior environments, but not outdoor or unconditioned spaces.

Frequently Asked Questions

Q: Does the DLE-200B require an active phone line or SIP account to operate?

A: No. The DLE-200B generates its own dial tone, DC talk battery, and ring signals internally. It operates entirely without a live POTS line, SIP trunk, or internet connection.

Q: What is the maximum modem speed the DLE-200B supports?

A: The DLE-200B supports data speeds up to 28,800 bps (28.8 kbps), suitable for V.34 and earlier modem standards used in legacy alarm communicators and fax devices.

Q: Can the DLE-200B simulate both standard and distinctive ringing?

A: Yes. The unit supports both standard and distinctive ringing patterns, which is useful when testing devices that respond differently to ring cadence.

Q: How many devices can be connected to the DLE-200B at once?

A: The DLE-200B has two RJ11 jacks and supports a maximum ringer load of 2.0 REN, accommodating up to two standard analog devices simultaneously.

Q: What power supply does the DLE-200B use?

A: It ships with a UL-listed 120VAC/13.8VAC 1.25A adapter. Current draw is 600mA maximum. No third-party power sourcing is required.

Q: Is the DLE-200B suitable for outdoor installation?

A: No. The operating temperature range is 32°F to 90°F with 5–95% non-condensing humidity. It is designed for conditioned indoor environments only.

James Everett

The DLE-200B is the unit I reach for when a technician needs to bench-qualify a POTS alarm dialer or commission a ring-down intercom circuit without waiting on the telco. The 32V DC talk battery and -20 dBm dial tone are spec-accurate to central-office loop conditions — devices don't know they're on a simulator, which is exactly the point.

Technical Highlights:

• CPC Break Timing: Both 2-second and 150 ms CPC disconnect modes are supported — the 150 ms short-break is the one most alarm panels use for hang-up supervision, and missing it in a test environment means you'll miss hang-up failures in the field.
• 2.6-Mile Loop Simulation: The electrical loop length simulates real-world attenuation. That matters when you're qualifying a modem or dialer at 28,800 bps — a lab simulator that doesn't model line loss will give you a false pass on marginal equipment.
• 2.0 REN Ringer Load: Enough headroom for two standard REN-1.0 devices, so you can run a two-extension ring-down test in a single bench setup without splitting the test across separate sessions.

Deployment Considerations:

• The 120VAC wall adapter is UL-listed and included — confirm your equipment room has a standard outlet nearby; the compact 4.75″ x 2.75″ x 1.38″ footprint fits easily on a shelf or patch panel area, but it needs AC, not PoE or DC.
• Operating ceiling is 90°F — adequate for a conditioned IDF closet, but do not deploy in an unconditioned space during summer months. Above that threshold, reliability is not specified.

Best fit: commissioning desks for alarm integrators qualifying POTS-based communicators, intercom installers validating ring-down circuits, and field service kits where carrying a live phone line isn't practical. Not the right tool if your environment has moved entirely to VoIP — this unit simulates analog loop conditions only.
