Viking Electronics DLE-300 Advanced Phone Line Simulator with Dial Tone
Overview

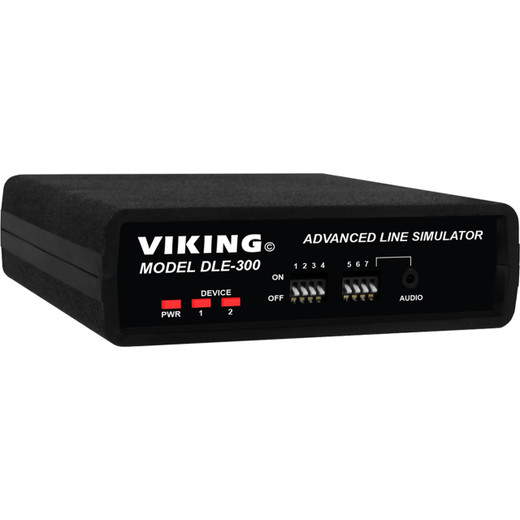

The Viking Electronics DLE-300 is a full-featured phone line simulator designed for technicians, integrators, and test engineers who need to replicate a live POTS line without relying on active carrier service. Whether you are commissioning a new analog PBX, validating a door-entry intercom, or stress-testing telephony gear on a bench, the DLE-300 delivers the complete electrical environment a real phone line provides — dial tone, ring voltage, talk battery, caller ID data, busy and reorder tones, SIT tones, ring back, and CPC disconnect — all from a single compact unit. It is the kind of tool that removes the carrier dependency from your test loop entirely, letting you reproduce failure conditions and edge cases on your schedule. For a broader look at the Viking Electronics telephony and entry product line, explore the Viking Electronics catalog.
Key Features
- Standard and Distinctive AC Ringing: The DLE-300 generates both standard and distinctive ring patterns, so you can validate ring-detection logic in analog phones, door phones, and ring-activated relays without waiting on a carrier test call. Distinctive ring support is critical for multi-line simulation scenarios where devices respond differently to ring cadence.
- 40V DC Talk Battery: Real analog phones and line-powered intercoms draw their operating voltage from the line itself. At 40V DC talk battery, the DLE-300 meets or exceeds the voltage level of most incumbent carrier loops, ensuring devices power up and behave exactly as they would on a live line — not a degraded lab approximation.
- 6.0 REN Ringer Output: REN (Ringer Equivalence Number) determines how many devices a single line can drive simultaneously. At 6.0 REN, the DLE-300 can power a realistic multi-device load — useful when testing installations with desk sets, fax machines, and analog entry panels all connected to the same simulated line.
- Caller ID Data Generation: Testing caller ID display, logging, and routing logic requires a line source that actually sends the data burst between rings. The DLE-300 delivers this, letting you validate caller ID behavior in analog gateways, door phones with display units, and legacy PBX trunks without coordinating with the carrier.
- Precise Dial Tone, Ring Back, Busy, SIT, and Reorder Tones: Accurate tone generation matters when you are testing auto-dialers, modems, fax machines, or voice processing systems that make go/no-go decisions based on tone detection. Off-spec tones from a cheap simulator produce false positives and wasted debug cycles — the DLE-300 generates each tone to standard.
- CPC Generation — 2-Second Disconnect Signal: Calling Party Control (CPC) is the brief open-loop signal carriers send to notify CPE that the far end has hung up. The DLE-300 generates a 2-second CPC pulse, which is essential for testing auto-attendants, analog modems, and any device that uses CPC to detect call termination and release resources.
- 2.6 Mile Maximum Loop Length Support: Analog loops degrade with distance. The DLE-300 supports loop lengths up to 2.6 miles (4.2 km) on 24 AWG wire, meaning it can drive test scenarios that simulate the electrical characteristics of long outside-plant runs — relevant when commissioning rural telephony infrastructure, long-haul intercom wiring, or distributed campus entry systems.
- Compact Form Factor — 4.75" x 2.75" x 1.38": At under five inches across and 1.59 lbs, the DLE-300 fits in a technician's bag without dedicated case space. It is built for field use: desk, rack shelf, or cable tray — wherever you need a stable reference line during commissioning or troubleshooting.
- 32°F to 90°F Operating Range: Covers typical indoor and conditioned-space environments. Not rated for unheated exterior enclosures — plan accordingly in cold-climate installations where equipment rooms may drop below freezing.
- 5% to 95% Non-Condensing Humidity Tolerance: Handles humid environments such as server closets in warm climates, but non-condensing is a hard limit — avoid environments where temperature swings cause moisture to collect on the unit.
Integration and Compatibility
The DLE-300 is compatible with any device or system expecting a standard analog POTS interface: analog single-line phones, multi-line key systems, analog PBX trunks, VoIP analog telephone adapters (ATAs), door entry intercoms with analog line interfaces, DACT (digital alarm communicator transmitters) used in fire and security panels, fax machines, modems, and auto-dialers. It is a particularly practical tool alongside analog door phone systems and entry control panels that require a live-line environment for acceptance testing. Integrators deploying Viking entry products — or any analog telephony peripheral — will find the DLE-300 (often searched as DLE 300) eliminates the single largest external dependency in the bench-test workflow. It also complements analog gateway commissioning where verifying FXO trunk behavior without carrier access is a routine requirement. When planning larger telephony test environments, pair it with the appropriate power conditioning equipment to maintain stable AC input.
Frequently Asked Questions
Q: What tones does the DLE-300 generate?
A: The DLE-300 generates standard dial tone, ring back tone, busy tone, SIT (Special Information Tone), and reorder tone, along with standard and distinctive AC ringing and caller ID data bursts.
Q: What is the CPC pulse duration on the DLE-300?
A: The DLE-300 generates a 2-second CPC (Calling Party Control) open-loop disconnect signal — the standard used by carriers to signal call termination to CPE devices.
Q: How many phones or analog devices can the DLE-300 drive simultaneously?
A: The DLE-300 provides 6.0 REN of ringer output, which is sufficient to drive multiple analog devices on a single simulated line. Most standard telephones are rated at 1.0 REN, so six typical devices can be driven simultaneously.
Q: What is the maximum loop length the DLE-300 supports?
A: The DLE-300 supports a maximum loop length of 2.6 miles (4.2 km) on 24 AWG wire, making it suitable for simulating long outside-plant or campus wiring runs.
Q: Can the DLE-300 be used to test a DACT (digital alarm communicator transmitter) on a fire or security panel?
A: Yes. DACTs require a standard analog POTS interface with dial tone, ring voltage, and talk battery — all of which the DLE-300 provides. It is a common tool for testing and certifying DACT operation without requiring active carrier service at the test location.
Q: What power does the DLE-300 require?
A: The DLE-300 operates on 120V AC input, producing 13.8V AC at 1.25A for its internal circuitry. Standard North American wall outlet — no special power infrastructure required.
The DLE-300 is the unit I reach for when a technician calls in because their DACT won't seize the line during a fire alarm panel test and the carrier won't provision a temporary test line on short notice. The 40V DC talk battery and 6.0 REN ring output mean every analog device on the bench sees a line environment it cannot distinguish from a real CO connection — and that 2-second CPC pulse is what separates it from cheaper simulators that skip disconnect signaling entirely.
Technical Highlights:
- 40V DC Talk Battery: Most CO lines run 48V nominal dropping to 30–40V under load. At 40V, the DLE-300 keeps line-powered devices in their normal operating range — critical for intercoms and analog modems that behave differently when battery voltage sags.
- 6.0 REN Output: Lets you wire a realistic multi-device load to the simulated line during commissioning acceptance tests — phones, fax, and entry panel simultaneously, just as they will be configured in the field.
- 2-Second CPC Pulse: Auto-dialers, modem pools, and auto-attendants that rely on CPC for hang-up detection will not release lines correctly if the simulator skips this signal. The DLE-300 generates it to spec, catching release-failure bugs before the system goes live.
Deployment Considerations:
- The DLE-300 operates on 120V AC — confirm a conditioned outlet is available at the test location. In field environments without nearby power, you will need a small UPS or inverter; there is no battery-only mode.
- Operating temperature tops out at 90°F. In unconditioned equipment rooms or vehicle trunks in summer, monitor ambient temperature — thermal shutdown is not a feature you want to discover mid-test.
This unit is the right call for security integrators performing DACT acceptance testing on fire and burglary panels, VoIP ATA deployment teams validating FXO port behavior before cutover, and telephony technicians commissioning analog door-entry systems in facilities where carrier provisioning timelines would otherwise hold up final inspection.
