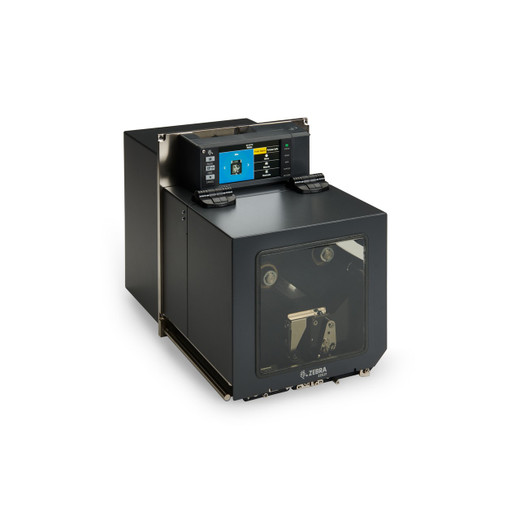

Zebra ZE52163-R010000Z 6-Inch 300dpi Right-Hand Thermal Transfer Print Engine

Overview

The Zebra ZE52163-R010000Z is a 6-inch-wide, 300dpi thermal transfer print engine built for OEM integration and inline print-and-apply systems where a standalone label printer simply won't fit the workflow. Right-hand orientation means the media path exits on the right side of the unit — a mechanical detail that dictates whether this engine physically integrates with your applicator or conveyor line, so confirm your applicator's feed direction before ordering.

Print engines like the ZE521 are the core of automated labeling rigs: they drop into custom enclosures or mount directly to applicators, letting manufacturers and system integrators build purpose-built print-and-apply stations without the footprint or cost of a full industrial printer chassis. If your operation requires high-volume, continuous label output embedded in a production or warehouse automation line, the ZE52163-R010000Z (often searched as ZE52163 R010000Z) is built for exactly that use case.

Key Features

• 6-Inch Print Width at 300dpi: A 6-inch print width at 300dpi handles wide-format labels — pallet compliance labels, carton shipping labels, and full-face product labels — without sacrificing resolution. At 300dpi, barcodes print with enough dot density to scan reliably at GS1 compliance thresholds, and human-readable text remains sharp down to 8-point fonts.
• Thermal Transfer Print Method: Thermal transfer uses a ribbon to bond pigment to the label substrate, producing an image that resists heat, moisture, and abrasion far better than direct thermal output. For labels that must survive a cold chain, outdoor transit, or a chemical warehouse environment, thermal transfer is the operationally correct choice.
• Right-Hand Engine Orientation: The right-hand designation defines the physical path of media through the engine. In print-and-apply configurations, this determines which side of the applicator the engine mounts on and how the label exits for application. Selecting the wrong orientation creates a mechanical conflict with the applicator arm — verify your applicator's specification sheet before committing.
• Quad Connectivity — USB, RS-232, Ethernet, Bluetooth: Four simultaneous interface options let this engine fit into nearly any host architecture. Ethernet is the standard choice for networked print servers and WMS-driven label dispatch; USB handles direct-connect workstation scenarios; RS-232 covers legacy PLC integration; Bluetooth enables occasional wireless pairing for configuration or low-volume bursts without running cable to the mounting location.
• 64MB Flash Memory: 64MB of onboard flash stores label formats, fonts, and graphics locally on the engine — eliminating round-trip latency to a print server for each label. In high-throughput lines where the applicator cycle time is measured in fractions of a second, local format storage removes a potential bottleneck and keeps the engine printing even during brief network interruptions.
• Industrial-Grade Construction: Print engines in the ZE521 class are built to OEM and industrial durability standards — designed for continuous-duty operation in environments where a desktop-class printer would fail from vibration, dust, or temperature swings. This translates directly to lower replacement frequency and fewer maintenance windows on a running production line.

Integration and Compatibility

The ZE52163-R010000Z integrates with print-and-apply applicators, custom OEM enclosures, and automated labeling systems that require a Zebra print engine as the core output component. Zebra's ZPL (Zebra Programming Language) is supported across the Zebra industrial printer line, meaning label formats developed for any ZPL-compatible Zebra printer — including the ZT411, ZT421, and ZT610 families — will translate to this engine without reformatting.

For enterprise environments running WMS or ERP-driven label dispatch, Ethernet connectivity allows this engine to appear as a networked print node addressable by Zebra's ZebraNet print server architecture or third-party label software platforms. RS-232 support covers integration with older PLCs and embedded controllers common in manufacturing environments where upgrading the host system isn't on the roadmap.

If you're building a new print-and-apply line and need guidance on applicator compatibility or format migration from an existing industrial label printer, confirm the applicator vendor's supported print engine list — not all applicators are mechanically compatible with the ZE521 form factor. A barcode printer selection guide can help clarify whether a standalone industrial unit or an embedded engine better fits your throughput model.

Media selection matters more on a print engine than on a standalone printer: because the engine ships without a full enclosure, media tension and web handling are managed by the host applicator or enclosure. Use Zebra-certified thermal transfer ribbons and labels matched to the substrate and environment — mismatched ribbon chemistry is the leading cause of printhead wear and barcode non-conformance in print-and-apply deployments.

Frequently Asked Questions

Q: What does the right-hand orientation mean on the ZE52163-R010000Z?

A: Right-hand orientation describes the direction the media exits the print engine. In print-and-apply systems, this determines which side of the applicator the engine physically mounts to. If your applicator is designed for a left-hand engine, the ZE52163-R010000Z will not mechanically fit the intended configuration. Always confirm the applicator's required engine orientation before purchasing.

Q: Can the ZE52163-R010000Z be used as a standalone label printer?

A: No. The ZE521 is a print engine intended for OEM integration into applicators, custom enclosures, or automated labeling systems. It does not include a full printer chassis, display, or operator controls. If you need a standalone industrial printer with a 6-inch print width, look at the ZT600 series in Zebra's industrial printer lineup.

Q: What connectivity interfaces does the ZE52163-R010000Z support?

A: The ZE52163-R010000Z supports USB, RS-232 serial, Ethernet, and Bluetooth. Ethernet is standard for networked WMS-driven environments; RS-232 supports legacy PLC integration; Bluetooth enables wireless configuration or low-volume wireless print scenarios.

Q: Does the ZE52163-R010000Z support ZPL label formats?

A: Yes, the ZE521 print engine uses Zebra's ZPL programming language, which is compatible with label formats developed for other ZPL-capable Zebra industrial printers. This means existing label templates from ZT411, ZT421, or ZT610 deployments can transfer to this engine without redesign.

Q: What print resolution does the ZE52163-R010000Z produce?

A: The ZE52163-R010000Z prints at 300dpi. At this resolution, GS1-compliant barcodes print with sufficient dot density for reliable scanning, and human-readable text remains legible at standard label font sizes. For applications requiring finer detail (e.g., very small barcodes or high-density 2D codes), a 600dpi variant would be appropriate.

Q: What is stored in the 64MB flash memory on the ZE52163-R010000Z?

A: The 64MB onboard flash stores label formats, fonts, and graphics locally on the engine. Local storage allows the engine to print without a round-trip to a print server for each job, reducing latency in high-throughput applications and maintaining operation during brief network interruptions.

Jerry Tildsen

The ZE52163-R010000Z is Zebra's 6-inch, 300dpi right-hand thermal transfer print engine — and the detail that determines whether this unit belongs in your project is the right-hand orientation, not the resolution or connectivity. I've seen integrators order the wrong-hand engine and discover the conflict only when the applicator arm is already mounted. Confirm your applicator's required orientation spec first; everything else on this engine is configurable.

Technical Highlights:

• 6-Inch / 300dpi Output: The 6-inch print width covers full-face carton labels and GS1-128 pallet compliance labels in a single pass. At 300dpi, narrow-bar barcodes and 2D matrix codes hold their quiet zones and bar width tolerances well within GS1 grading thresholds — meaningful in retail compliance programs where a failed scan means a chargeback.
• 64MB Onboard Flash: 64MB of local format storage is enough to cache dozens of label templates and custom fonts on the engine itself. In a line running at 30+ labels per minute where each label triggers a format lookup, eliminating the server round-trip keeps the applicator cycle time tight and the line moving during transient network events.
• Quad Interface Stack: USB + RS-232 + Ethernet + Bluetooth on a single engine is unusually flexible for an OEM component. In practice, Ethernet handles the production dispatch path, RS-232 stays wired to the PLC for status signals, and Bluetooth gets used exactly once — during commissioning — for wireless configuration. Having all four built in means you're not buying an interface card when the host system changes.

Deployment Considerations:

• The thermal transfer print method requires ribbon — confirm your ribbon chemistry (wax, wax-resin, or resin) matches both the label substrate and the temperature/abrasion requirements of the end environment. A wax ribbon on a polyester label in a freezer application will produce failing barcodes within weeks.
• Print engines ship without an enclosure, operator panel, or media guides integrated into a chassis — media tension, web routing, and environmental protection are entirely the responsibility of the host applicator or OEM enclosure. Don't spec this unit for open-air deployment expecting the same media handling you'd get from a full ZT600 chassis.

The ZE52163-R010000Z fits best in high-throughput print-and-apply stations on manufacturing or distribution lines where a 6-inch label footprint is required, the applicator is confirmed right-hand compatible, and the host system has an Ethernet or RS-232 interface ready to drive print dispatch.
