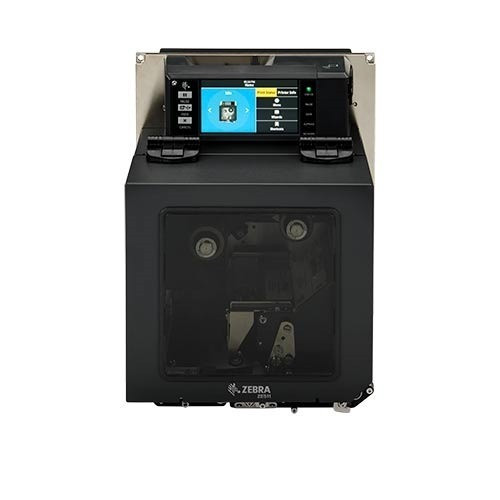

Zebra ZE51142-L010000Z 4-Inch 203dpi Left-Hand Industrial Print Engine
Overview
The Zebra ZE51142-L010000Z is a 203dpi, 4-inch left-hand print engine built for OEM integration and inline printing applications where a standalone industrial printer won't fit. Print engines like the ZE511 drop into custom kiosks, packaging lines, and automated dispensing systems — environments where you need Zebra's industrial-grade print mechanism without the full enclosure. The left-hand (LH) orientation means the media path exits from the left side when facing the unit, which matters for tight mechanical fits inside host equipment. If you're spec'ing a built-in labeling station for a conveyor, dispenser, or kiosk platform, the ZE51142-L010000Z (often searched as ZE51142 L010000Z) belongs on your evaluation shortlist.
Key Features
- 203dpi Resolution: Standard warehouse-grade print density — sharp enough for GS1-128, Code 128, and most 2D barcodes at typical label sizes. If you're printing very small labels (under 1 inch tall) or high-density 2D codes that need scan reliability at distance, step up to the 300dpi variant; for most logistics and manufacturing label formats, 203dpi is the correct choice and runs faster.
- 4-Inch Print Width: Handles the full range of standard shipping, compliance, and product labels up to 4 inches wide — covers GS1 logistics labels, 4x6 shipping labels, and most warehouse rack tags without any media restriction.
- Dual Thermal Transfer and Direct Thermal Print Method: Supports both modes in a single engine. Run thermal transfer with wax, wax-resin, or resin ribbon when you need smear, chemical, or outdoor durability; switch to direct thermal for short-life labels where ribbon cost matters. One engine handles both lines without a swap.
- Left-Hand Orientation: The LH designation governs which side the printhead assembly, media path, and connectors are positioned relative to the host enclosure. Specify this carefully against your mechanical drawing — ordering the wrong hand orientation means the unit won't fit your OEM chassis without significant rework.
- USB, RS-232, Ethernet, and Bluetooth 4.1 Connectivity: Four simultaneous interface options. Ethernet enables network-addressed printing directly from WMS or MES systems without a print server. Bluetooth 4.1 opens mobile trigger scenarios. RS-232 handles legacy PLC or embedded controller integration where modern bus options aren't available. USB covers direct host connections during configuration or testing.
- 64MB Flash Memory: Onboard storage retains downloaded label formats, fonts, and graphics without a host connection — critical for inline applications where the print engine may operate in burst mode or with intermittent network contact. Pre-load your label templates at commission time and the engine runs autonomously.
- Industrial-Grade Build: The ZE511 print engine shares the same industrial mechanism DNA as Zebra's ZT-series standalone printers. That means metal frame construction, a durable printhead mount, and the duty-cycle tolerance expected in 24/7 manufacturing and distribution environments — not the lighter-duty mechanisms in desktop-class engines.
Integration and Compatibility
The ZE51142-L010000Z integrates with host systems via standard Zebra Programming Language (ZPL) — the same command set used across the ZT411, ZT610, and ZD-series printers, so any ZPL label format you've already built transfers without rewrite. Ethernet connectivity allows direct integration with warehouse management systems (WMS), manufacturing execution systems (MES), and print servers. Bluetooth 4.1 supports mobile host integration for trigger-based or proximity-triggered print scenarios common in pick-to-light and mobile workstation setups. For label design and format management, the engine is compatible with Zebra Designer and third-party label software that outputs ZPL. The industrial label printer category includes the full range of Zebra standalone and OEM print solutions if you're evaluating whether a print engine or a standalone unit better fits your application. For media and ribbon pairing, the ZE511's 4-inch platen accommodates standard 1-inch and 3-inch core media — confirm your media supplier's roll diameter and core spec before commissioning. If you're designing an inline Zebra printing solution and need help selecting between the ZE511 and ZE521 (wider 6-inch) or between 203dpi and 300dpi variants, the resolution and media width are the two axes that drive the decision. Review the print engines category for side-by-side model comparisons within the ZE500 family.
When This Is the Correct Choice
Choose the ZE51142-L010000Z when you're building a custom enclosure or integrating a print mechanism into OEM equipment — ticket dispensers, label applicators, automated kiosks, and inline packaging stations are the primary use cases. The left-hand orientation, 4-inch width, and 203dpi resolution cover the majority of logistics, compliance, and product identification label formats. The four-interface stack (USB + Ethernet + RS-232 + Bluetooth 4.1) gives you flexibility to match your host controller's available bus without adding an interface adapter.
When to Choose a Different Model
If your label format uses small text, dense 2D barcodes, or fine-pitch graphics at sub-inch label heights, evaluate the 300dpi variant in the ZE511 family — the additional dot density becomes measurable in scan reliability at those sizes. If your media is wider than 4 inches, the ZE521 (6-inch) is the correct platform. If your OEM chassis requires right-hand media exit, the right-hand (RH) variant of the ZE511 is the correct SKU — confirm your mechanical drawing before ordering. If your application is a standalone industrial printing station rather than an embedded print mechanism, a Zebra ZT-series industrial printer with full enclosure is a better fit and significantly easier to service in the field.
Frequently Asked Questions
Q: What is the difference between the left-hand (LH) and right-hand (RH) ZE511 print engine?
A: The hand orientation determines which side the printhead, media path, and output exit from relative to the front face of the engine. The ZE51142-L010000Z is a left-hand unit — media exits from the left side when facing the engine. This directly affects how the engine mounts inside an OEM enclosure or kiosk chassis. Ordering the wrong hand will prevent mechanical fit without significant chassis rework, so confirm against your mechanical drawing before purchasing.
Q: Does the ZE51142-L010000Z support ZPL label formats from existing Zebra printers?
A: Yes. The ZE511 print engine uses Zebra Programming Language (ZPL), the same command set used across Zebra's ZT-series and ZD-series printers. Label formats designed for other ZPL-compatible Zebra printers are generally transferable without rewriting, which simplifies integration if you're already running Zebra printers elsewhere in your facility.
Q: Can the ZE51142-L010000Z print both thermal transfer and direct thermal labels?
A: Yes. The ZE511 supports both print methods in one engine. Use thermal transfer with wax, wax-resin, or resin ribbon for durable labels that need to resist smearing, chemicals, or outdoor exposure. Switch to direct thermal for short-life labels where eliminating ribbon cost is a priority. No mechanical change is needed to switch between modes.
Q: What connectivity interfaces does the ZE51142-L010000Z provide?
A: The ZE51142-L010000Z includes USB, RS-232 serial, Ethernet, and Bluetooth 4.1. Ethernet enables direct network printing from WMS or MES platforms. RS-232 supports legacy PLC and embedded controller integration. Bluetooth 4.1 handles mobile host and proximity-triggered print scenarios. USB is available for direct host connection during setup and configuration.
Q: Is the ZE51142-L010000Z suitable for 24/7 continuous-duty environments?
A: The ZE511 print engine uses an industrial-grade mechanism built for high-duty-cycle operation consistent with Zebra's ZT-series industrial printer line. It is engineered for continuous-run manufacturing, distribution, and logistics environments. For specific duty-cycle ratings and maximum print volumes, consult the Zebra ZE511 product datasheet.
Q: What label width can the ZE51142-L010000Z handle?
A: The ZE511 handles media up to 4 inches wide, covering standard GS1 logistics labels, 4x6 shipping labels, warehouse rack tags, and most compliance labeling formats used in distribution and manufacturing. For media wider than 4 inches, the ZE521 6-inch print engine is the correct platform.
The ZE51142-L010000Z is a print engine, not a printer — and that distinction matters more than it sounds. I spec this unit specifically for OEM integration work where an enclosure, keypad, and display would be wasted cost and wasted space. The left-hand media orientation is the most critical ordering variable: get it wrong and the chassis won't close, full stop. Every ZE511 deployment I've been involved with starts with a mechanical drawing review before the PO goes out.
Technical Highlights:
- 203dpi at 4-inch width: Covers every standard logistics and compliance label format — GS1-128, Code 128, QR, Data Matrix — without the scan-reliability risk you'd see at 203dpi on very small or high-density 2D codes. If your label inventory skews small or dense, the 300dpi ZE511 variant is worth the price delta.
- 64MB onboard flash: Pre-load your ZPL format library at commissioning. In inline automation, the print engine frequently operates in burst mode with intermittent host contact — having formats resident in flash eliminates the host-dependency risk during high-throughput windows.
- Bluetooth 4.1 + Ethernet + RS-232 + USB: Four interfaces in a single engine means you're not buying an adapter to match your host controller. RS-232 is the sleeper spec here — legacy PLCs in a lot of older production lines don't speak Ethernet, and having native RS-232 onboard removes a conversion layer that's one more failure point.
Deployment Considerations:
- Confirm left-hand vs. right-hand orientation against your chassis drawing before ordering — this is the single most common ordering error on print engine integrations and it's not correctable in the field without a full engine swap.
- The ZE511 uses ZPL natively, but if your host system generates EPL or another language, you'll need a translation layer at the application level — there is no onboard language switching between ZPL and EPL in this engine family.
The ZE51142-L010000Z is the right engine for inline label applicator builds, custom kiosk installations, and automated dispensing systems in distribution centers and manufacturing lines where a 4-inch 203dpi print mechanism needs to fit a fixed mechanical envelope and speak to a mix of modern and legacy host controllers simultaneously.
