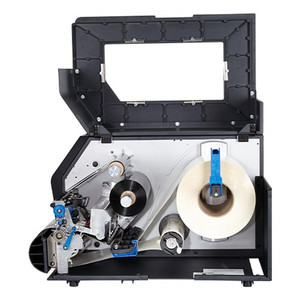

TSC T83X6-1100-3 Thermal Transfer Label Printer
Overview
The TSC T83X6-1100-3 is a mid-format thermal label printer purpose-built for warehouse, logistics, and light manufacturing environments where label throughput and media flexibility matter. This unit combines direct thermal and thermal transfer printing in a single chassis, meaning you can run coated label stock without heat-sensitive backing (direct thermal) or use ribbon-and-label combinations (thermal transfer) — no hardware reconfiguration required between media types. Print speed of 10 inches per second at 203 dpi resolution delivers adequate barcode legibility for standard shipping, picking, and inventory labels without the cost and complexity of industrial-scale systems. The 6-inch color LCD touchscreen handles local job configuration, eliminating the need to tether the printer to an external PC during setup or media changes. Wi-Fi connectivity simplifies network integration in warehouse layouts where Ethernet runs are impractical or where mobile printing from handheld devices is part of your workflow.
Key Features
- Dual Print Method (Direct Thermal + Thermal Transfer): Support for both technologies on a single printer means you can switch between label types without hardware swaps. This is valuable when migrating label stock or when different warehouse zones require different media — no need to buy and maintain two separate printers.
- 10 ips Print Speed: Delivers approximately 600 labels per hour at full width, matching typical mid-volume warehouse workflows (500–5,000 labels per day). Sufficient for receiving, picking, and shipping operations; not designed for ultra-high-speed production lines requiring 14+ ips.
- 203 dpi Resolution: Produces clear barcode output for GS1-128, Code 128, and QR codes used in standard retail and logistics workflows. Adequate for scanning at typical warehouse distances (12–24 inches); barcode clarity is not a limiting factor in most deployments.
- 8.5-inch Maximum Print Width: Handles label widths from 1 inch to 8.5 inches, accommodating standard shipping label formats (4x6), multi-label roll stock, and custom die-cut media. Print length supports both short labels and continuous roll applications up to practical media roll diameter limits.
- 6-inch Color LCD Touchscreen: Graphical interface allows label preview, print job queuing, and real-time printer status without requiring a connected computer. Reduces deployment friction in environments with limited IT support or where printer relocation is frequent.
- Wi-Fi Connectivity (802.11b/g/n): Wireless network access removes dependency on fixed Ethernet infrastructure, useful in temporary sorting areas, mobile receiving stations, or facilities where cable routing is expensive. Standard network protocols (LPR, IPP, SNMPv1/v2c) support integration with warehouse management systems and enterprise print servers.
- Label Media Support: Qualified for die-cut labels, roll stock, and continuous media with standard thermal-transfer adhesive backings. Ribbon cartridge design minimizes media waste and allows quick ribbon changes without tool removal.
- Network-Ready Architecture: Direct integration with ERP, WMS, and e-commerce order fulfillment platforms via standard print drivers (Windows, Linux, Mac) and SNMP-based configuration. No proprietary middleware required.
Integration & Compatibility
The T83X6-1100-3 supports industry-standard label design software (ZPL command emulation via driver, as well as TSPL native scripting) and integrates into existing print-server environments. Wi-Fi deployment simplifies network layout in warehouses where hardwiring every station is costly or impractical. The touchscreen interface provides local configuration without reliance on external computers, reducing setup time for multi-station rollouts and allowing operators to manage media changes independently.
Typical Applications
This printer suits shipping and receiving operations, warehouse picking and put-away, inventory management, retail back-office labeling, and light manufacturing work-in-progress tracking. The flexible thermal transfer and direct thermal capability ensures compatibility with existing label stock investments while supporting future media transitions without hardware upgrades.
When to Choose a Different Model
If your facility requires print speeds above 12 ips, higher resolution (300+ dpi for dense barcode packing), or IP-based remote firmware updates with enhanced security, evaluate higher-specification models in the TSC industrial line. If you need integrated scales, RFID encoding, or advanced analytics, those capabilities require purpose-built multifunction devices. For ultra-high-volume operations (10,000+ labels per shift), consider line-speed systems with larger media rolls and continuous duty cycles.
Frequently Asked Questions
Q: Does the T83X6-1100-3 support both thermal transfer and direct thermal printing without changing hardware?
A: Yes. The printer accommodates both methods. Direct thermal uses chemically reactive label stock (no ribbon); thermal transfer uses a ribbon and standard label stock. Media type is selected in the print driver or via the touchscreen interface.
Q: What's the typical ribbon and label cost per unit for the T83X6-1100-3?
A: Costs depend on label material and ribbon type. Standard thermal transfer ribbon and 4x6 label rolls are commodity items available from multiple suppliers. Direct thermal label stock is typically 15–25% more expensive per roll than thermal transfer labels. Consumable sourcing is not proprietary to TSC.
Q: Can I integrate the T83X6-1100-3 directly into my WMS or ERP?
A: Yes. The printer supports standard network print protocols (LPR, IPP, RAW port 9100) and SNMP configuration. Your WMS or ERP's print module can send jobs directly to the printer's IP address. No special middleware is required.
Q: Is the T83X6-1100-3 suitable for outdoor or high-temperature warehouse environments?
A: The printer is rated for standard indoor warehouse conditions (5–40°C). Extended exposure to high heat, direct sunlight, or humidity extremes (above 85% RH) may affect print head life and mechanical performance. If your facility exceeds these ranges, consult the manufacturer on environmental mitigation or alternative models.
Q: What's the print head life, and what is the cost of replacement?
A: Print head life depends on media type and usage. Direct thermal typically yields longer head life than thermal transfer due to reduced mechanical stress from ribbon interaction. Replacement heads are available as service parts; costs and availability should be confirmed with your supplier.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the TSC T83X6-1100-3 in several mid-sized warehouse and logistics operations. This printer hits a practical middle ground for organizations that need flexible label output without overcomplicating their label infrastructure or consumable supply chain. The dual print method capability—direct thermal and thermal transfer on the same unit—is particularly valuable when you're supporting mixed label stock across different warehouse zones or migrating away from direct thermal to thermal transfer media.
Technical Highlights:
- 10 ips Print Speed at 203 dpi: Delivers approximately 600 4x6 labels per hour, which aligns with typical mid-volume receiving and picking operations (500–5,000 labels per shift). Speed is not a bottleneck in most warehouse workflows; it's the printer's 6-inch touchscreen and Wi-Fi integration that typically save the most operational friction.
- 8.5-inch Print Width: Accommodates standard 4x6 shipping labels and custom die-cut formats without requiring media-specific hardware swaps. The ability to switch between label widths on the fly (via driver or touchscreen) reduces the need to maintain separate printers for different label types.
- Wi-Fi Connectivity (802.11b/g/n): Eliminates Ethernet runs to fixed stations, useful in temporary receiving areas or facilities where cable infrastructure is limited. Standard SNMP and LPR protocols mean integration with existing print servers and WMS platforms is straightforward.
Deployment Considerations:
- The T83X6-1100-3 is rated for standard indoor warehouse environments (5–40°C). If your facility includes high-heat zones (dock staging in summer climates, for example), position the printer away from direct sun exposure or thermal sources; heat affects print head longevity and ribbon feed consistency.
- Thermal transfer ribbon and label sourcing is competitive and non-proprietary. Direct thermal label costs typically run 15–25% higher per roll than thermal transfer equivalents; factor consumable costs into your choice of print method if you're considering a mode change.
- The 6-inch color LCD is a genuine operational advantage for multi-station deployments—operators can preview labels and manage media changes without IT intervention, reducing help-desk load in large warehouses.
Position this printer for receiving, order fulfillment, and light manufacturing labeling in facilities with 500–5,000 daily label volumes and multi-user stations. It's not the choice for ultra-high-speed production lines or specialty applications requiring 300+ dpi or RFID integration, but for straightforward warehouse and logistics work, the T83X6-1100-3 delivers solid reliability and operational simplicity.
