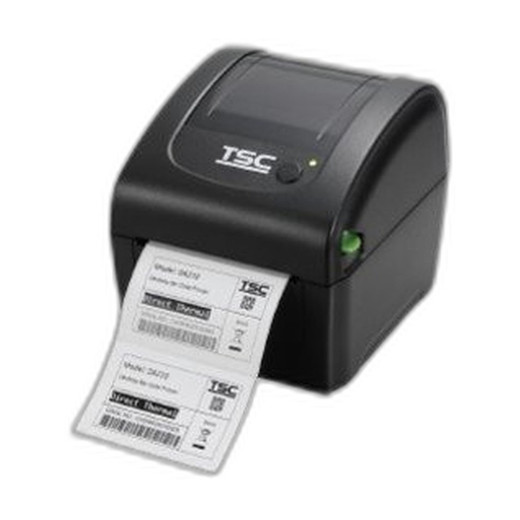

TSC PH-DA210-0001 Direct Thermal Printhead Assembly

TSC PH-DA210-0001 Direct Thermal Printhead Assembly

Overview

The TSC PH-DA210-0001 is an OEM replacement printhead assembly engineered for TSC DA210 and DA220 direct thermal label printers. This component is a critical wear item in direct thermal printing systems and is designed to restore print quality and reliability when existing printheads show signs of degradation or mechanical failure. Direct thermal printing eliminates the need for ribbons, making consumable costs lower over the printer lifecycle. The PH-DA210-0001 maintains the 203 dpi print resolution standard across TSC's DA-series platform, ensuring consistent barcode clarity and label readability in warehouse, logistics, and shipping environments.

Key Features

• Direct Thermal Technology: Eliminates ribbon waste and reduces consumable overhead compared to thermal transfer alternatives
• 203 DPI Print Resolution: Produces sharp, scannable barcodes and crisp text on label stock
• OEM Compatibility: Purpose-built for TSC DA210 and DA220 label printer platforms
• Drop-in Replacement: Engineered to match factory specifications for seamless printer restoration
• Wear Item Replacement: Intended for scheduled maintenance or emergency repair when printhead output degrades
• Extended Print Life: Designed to restore full printing capability in mature printer units

Specifications

The PH-DA210-0001 is rated for direct thermal printing at 203 dpi resolution, matching the native output specification of DA210 and DA220 printers. This resolution is the industry standard for retail compliance labeling, shipping labels, and inventory management applications. The component is engineered to the OEM mechanical and thermal specifications, ensuring proper thermal element alignment and consistent print density across the full print width.

Integration & Compatibility

This printhead assembly is compatible exclusively with TSC DA210 and DA220 direct thermal label printers. Installers and maintenance technicians should verify printer model before ordering. The assembly includes the thermal element stack and mounting hardware necessary for field installation. Proper alignment and thermal calibration may be required after installation depending on printer firmware version and prior maintenance history. Consult the printer service manual for detailed installation procedures and calibration requirements specific to your unit.

Typical Applications

The PH-DA210-0001 is specified for high-volume label production environments including distribution centers, parcel sorting facilities, retail receiving, healthcare inventory management, and manufacturing floor labeling. Direct thermal technology is preferred where ribbon supply chain complexity must be minimized and per-label consumable cost is a primary concern. The 203 dpi resolution supports GS1, UPC, and Code 128 barcode densities required for retail and logistics compliance.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TSC PH-DA210-0001 is a straightforward wear component replacement for DA210 and DA220 operators managing high-volume label output. Direct thermal printheads have a defined lifespan measured in print volume, and field replacement is a normal maintenance event. The PH-DA210-0001 restores factory print quality when thermal degradation or mechanical wear becomes visible in barcode clarity or label edge quality.

Technical Highlights:

• Direct Thermal 203 DPI: Maintains native resolution specification of DA-series printers for retail and logistics compliance labeling
• OEM Specification Engineering: Thermal element stack and mounting designed for exact compatibility with DA210 and DA220 mechanical architecture

Deployment Considerations:

• Schedule replacement during planned maintenance windows to avoid production interruption; printhead degradation is typically progressive, allowing advance planning
• Confirm printer firmware version before ordering; some DA210/DA220 variants may require calibration adjustment post-installation
• Direct thermal eliminates ribbon complexity, reducing consumable SKU count and supply chain management overhead compared to thermal transfer alternatives

Order the PH-DA210-0001 as part of preventive maintenance for DA210 and DA220 installations approaching expected printhead lifespan, or as an emergency repair component for units showing visible print quality degradation.
