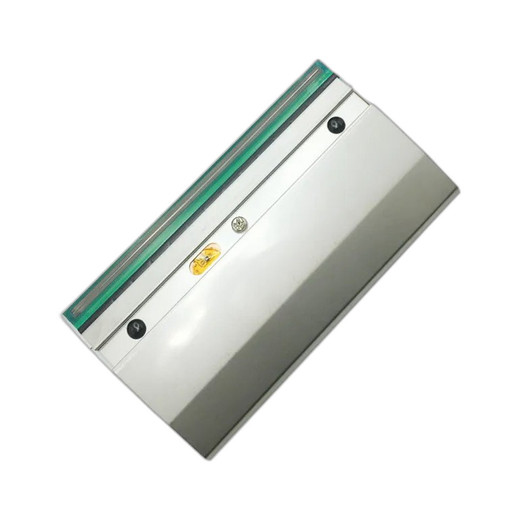

TSC 98-0530014-12LF Print Head Module 300DPI

TSC 98-0530014-12LF Print Head Module

Overview

The TSC 98-0530014-12LF is a dedicated print head module engineered for the TSC TX300PT thermal transfer printer. This component delivers 300 DPI print resolution, enabling high-fidelity label and receipt output suitable for retail, healthcare, logistics, and industrial labeling applications. As an original manufacturer component, the 98-0530014-12LF ensures compatibility and reliable performance in multi-shift warehouse and production environments.

Key Features

• 300 DPI Resolution: Produces crisp, legible text and graphics at 300 dots per inch, ideal for small label formats and barcode density requirements
• Original Equipment Manufacturer Component: Genuine TSC part designed to OEM specifications for the TX300PT printer
• Thermal Transfer Compatibility: Engineered for ribbon-based thermal transfer printing applications
• Drop-In Replacement: Direct fit for TX300PT models requiring print head service or replacement
• Wired Connectivity: Integrates with printer control electronics via standard interface
• LCD Display Integration: Works with TX300PT printer's LCD interface for operational feedback and diagnostics
• Field-Serviceable Design: Supports in-place maintenance and module swap without requiring factory recalibration
• Durable Construction: Precision-manufactured heating elements rated for high-volume production cycles

Integration & Compatibility

The TSC 98-0530014-12LF (often searched as 98 0530014 12LF) is a direct replacement component for TSC TX300PT thermal transfer printers. The module mounts directly into the printer carriage assembly and connects via the integrated ribbon cable interface. This print head module operates in conjunction with the TX300PT's control board, LCD operator panel, and thermal transfer ribbon supply. Technicians and integrators should verify printer firmware version and perform standard head gap calibration following module installation.

Specifications

Print Resolution: 300 DPI
Print Method: Thermal Transfer
Connectivity: Wired (integrated ribbon cable)
Display: LCD (TX300PT host printer)
Part Number: 98-0530014-12LF

Typical Applications

The 98-0530014-12LF excels in high-resolution labeling environments including shipping and logistics (4x6 address labels), pharmaceutical and healthcare labeling (compliance and tracking), retail point-of-sale (product labels and tags), and industrial manufacturing (asset tracking and equipment identification). The 300 DPI output accommodates dense barcodes, QR codes, and fine text on compact label formats.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the TSC 98-0530014-12LF as a replacement component during TX300PT deployment planning. This print head module is a straightforward, field-replaceable part that maintains consistent 300 DPI output quality across production runs. For integrators managing multi-printer fleets, having OEM replacement modules on hand minimizes downtime during routine head maintenance cycles.

Technical Highlights:

• 300 DPI Resolution: Meets barcode and text clarity requirements for compliant labeling in regulated industries
• Thermal Transfer Design: Operates with standard ribbon cartridges; no special media or cooling requirements beyond standard printer operation
• Direct Fit Compatibility: Part 98-0530014-12LF requires no firmware updates or electronics modifications; installs directly into TX300PT carriage

Deployment Considerations:

• Verify TX300PT printer model and serial number before ordering to confirm hardware revision compatibility
• Standard head gap calibration (typically 0.10–0.15 mm) should be performed post-installation using TX300PT control panel settings
• Maintain spare module inventory if running 24/7 label production; replacement cycle typically extends 12–18 months under standard use

For logistics and retail environments running high-volume label operations, the 98-0530014-12LF delivers reliable performance as a core replacement component. Order this part as preventive maintenance stock or as an immediate replacement when print quality degradation occurs.
