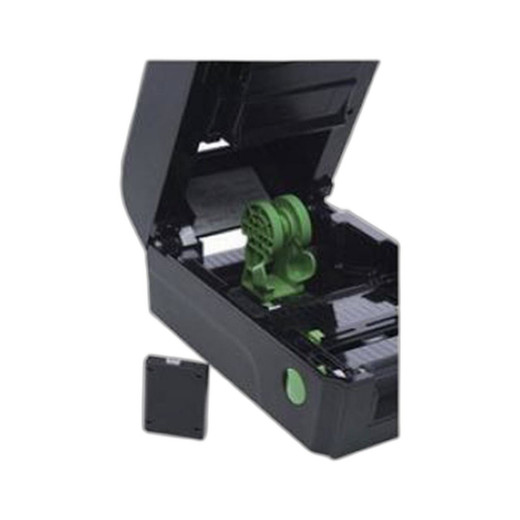

TSC 98-0530007-00LF LED Module Assembly TX200PT

TSC 98-0530007-00LF LED Module Assembly

Overview

The TSC 98-0530007-00LF is a replacement LED module assembly designed for the TSC TX200PT thermal transfer printer. This component serves as the illumination module within the TX200PT printer system, integrating with the printer's wired connectivity architecture and LCD display interface. As a direct OEM part, the 98-0530007-00LF ensures compatibility and performance consistency with TX200PT deployments across warehousing, logistics, healthcare, and retail label printing environments.

Key Features

• OEM Part Specification: Direct replacement component for TSC TX200PT thermal transfer printer systems
• LED Module Design: Provides illumination for label printing verification and internal optical functions
• Wired Connectivity Integration: Fully compatible with TX200PT's wired network and interface architecture
• LCD Display Compatibility: Integrates seamlessly with TX200PT's LCD control panel for operator feedback
• Thermal Transfer Printer Application: Engineered for use within TSC's TX200PT wide-format thermal transfer printing system
• Drop-In Replacement: Designed for technician-level maintenance and field replacement without firmware modifications

Integration & Compatibility

The TSC 98-0530007-00LF LED module assembly (also referenced as 98 0530007 00LF in some documentation systems) is a precision OEM component explicitly designed for TX200PT integration. The module connects through the printer's internal wired interface architecture, ensuring electrical and mechanical alignment with TX200PT's optical and illumination subsystems. Installation requires standard technician tools and follows TSC's documented field replacement procedures. The component maintains full compatibility with TX200PT's LCD-based operator control interface, allowing real-time status monitoring and diagnostic feedback during label production.

Replacement of the 98-0530007-00LF LED module does not require reconfiguration of printer settings, network parameters, or thermal transfer driver software. The module is a passive component within the TX200PT's overall system architecture and does not contain firmware or programmable elements.

Printer System Context

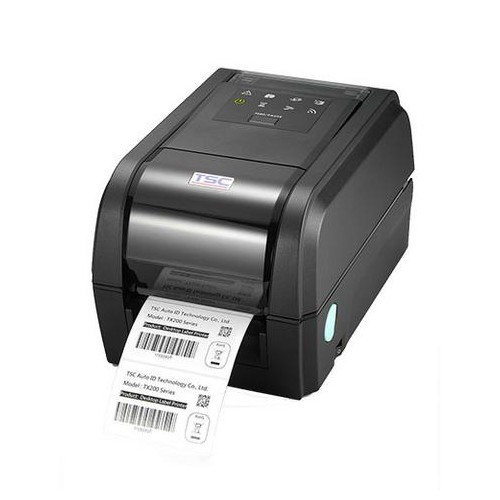

The TX200PT is a wired-connectivity thermal transfer printer commonly deployed in high-volume label and tag printing operations. The LED module assembly supports operational visibility and print verification functions integral to the printer's daily workflow. Replacement of worn or failed LED modules is a routine maintenance item in printer fleet management, particularly in 24/7 or multi-shift environments where extended operational hours accelerate component wear.

Technicians and IT asset managers should verify TX200PT model revision before ordering to ensure hardware generation compatibility. The 98-0530007-00LF is a standard consumable/wear component and should be stocked as part of planned maintenance supplies for TX200PT installations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the TSC 98-0530007-00LF LED module assembly during a TX200PT printer refresh cycle at a large regional distribution center. This is a straightforward OEM replacement component that addresses illumination and optical feedback functions within the TX200PT's print mechanism.

Technical Highlights:

• Direct OEM Part: Engineered explicitly for TX200PT thermal transfer printers—no cross-compatibility adjustments or adapter plates required
• Wired Integration: Connects via TX200PT's internal wired interface; no network configuration needed
• LCD Display Support: Works within TX200PT's existing LCD feedback system for operator diagnostics

Deployment Considerations:

• Verify printer model revision before replacement to confirm hardware compatibility
• Standard technician tools and basic training are sufficient for field installation
• Stock as a planned consumable item in printer maintenance supplies, especially for multi-shift operations

For TX200PT fleets running continuous label production, the 98-0530007-00LF should be maintained in inventory as part of routine preventive maintenance. This is a cost-effective wear component that maintains print visibility and operational feedback for end users.
