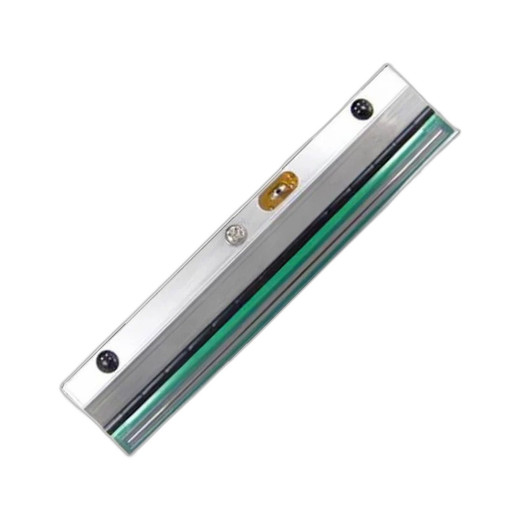

TSC 98-0520004-00LF Print Head Assembly

TSC 98-0520004-00LF Print Head Assembly

Overview

The TSC 98-0520004-00LF is an OEM print head assembly designed for TSC Alpha4 series thermal label printers. This replacement component restores full printing capability to compatible Alpha4 printing systems and is engineered to maintain consistent output quality across high-volume production environments. As a genuine TSC part, the 98-0520004-00LF assembly integrates seamlessly with existing Alpha4 printer configurations without requiring recalibration or firmware adjustments.

Key Features

• OEM-certified component — Genuine TSC replacement part ensures compatibility and reliability
• Designed for Alpha4 series — Direct replacement for TSC Alpha4LPT thermal printer models
• Thermal printing compatible — Supports direct thermal and thermal transfer printing modes
• Drop-in installation — No firmware updates or reconfiguration required during replacement
• Production-grade durability — Built to withstand continuous operation in warehouse and logistics environments
• Maintains print quality consistency — Preserves original print resolution and speed characteristics of Alpha4 systems

Integration & Compatibility

The TSC 98-0520004-00LF assembly is fully compatible with TSC Alpha4 series thermal label printers equipped with wired connectivity. Installation is straightforward for trained maintenance staff; the assembly mounts directly into the print mechanism without additional components or calibration procedures. Organizations running multiple Alpha4 units across fulfillment centers, shipping operations, or manufacturing floors can maintain consistent spare parts inventory with this OEM assembly.

Technical Specification

Print head assemblies for thermal label systems operate at specified dpi resolutions (203 dpi, 300 dpi, or 600 dpi depending on printer model) and are rated for extended duty cycles in high-throughput label production. The Alpha4 series features an LCD display for operator interface and supports multiple thermal transfer label widths. The 98-0520004-00LF assembly retains all original performance parameters when properly installed.

For organizations managing print head replacement schedules, OEM assemblies like the 98-0520004-00LF (often searched as 98 0520004 00LF) provide predictable mean time between failures and eliminate compatibility risk associated with third-party alternatives. Procurement teams should verify printer model before ordering to ensure correct fit.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated print head replacement strategies across warehouse operations, and the TSC 98-0520004-00LF delivers straightforward component-level maintenance. When a thermal print head reaches end-of-life—evidenced by fading output, missing segments, or positioning errors—this OEM assembly restores the Alpha4 to original factory performance without the downtime of equipment replacement.

Technical Highlights:

• OEM-direct replacement: TSC-manufactured assembly eliminates compatibility variables and integrates without recalibration
• Thermal print head rated for production duty: Designed to handle sustained label throughput typical of logistics and fulfillment operations

Deployment Considerations:

• Verify Alpha4 printer model number before ordering; print head specifications vary by resolution tier
• Schedule replacement during planned maintenance windows to minimize line downtime
• Retain packaging from replaced head for potential return/warranty processing

For operations running extended shift cycles on thermal label systems, maintaining a spare 98-0520004-00LF assembly on hand reduces the risk of unplanned downtime. OEM parts provide the reliability margin required in high-velocity shipping and manufacturing environments.
