TSC 98-0510076-00LF 203 DPI Print Mechanism Assembly MX240P

TSC 98-0510076-00LF 203 DPI Print Mechanism Assembly

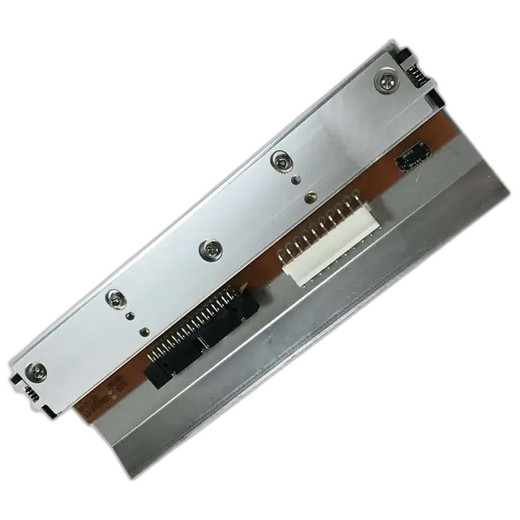

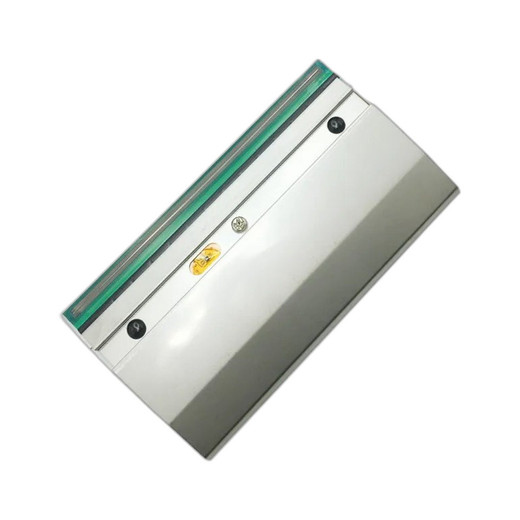

The TSC 98-0510076-00LF is a replacement print mechanism assembly designed for the TSC MX240P thermal label printer. This component delivers 203 dpi print resolution, supporting mid-range thermal printing operations in logistics, warehouse, and retail environments. The assembly is engineered as a direct replacement part for MX240P printer models requiring maintenance or component refresh.

Overview

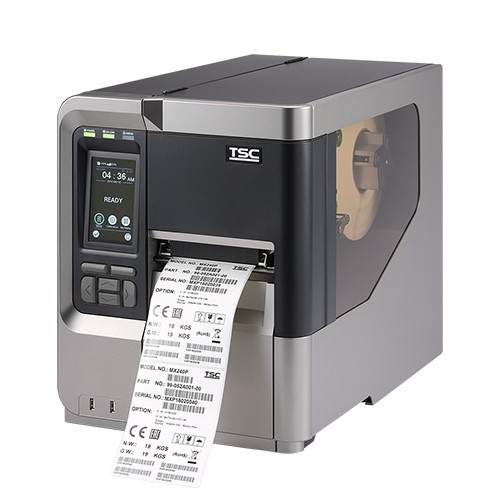

As a print mechanism assembly, the 98-0510076-00LF serves as the core printing engine within the MX240P printer platform. This wired-based component operates with an LCD display interface for status monitoring and operational feedback. The 203 dpi resolution specification delivers legible output suitable for standard shipping labels, GS1-128 barcodes, receipt printing, and general-purpose thermal label applications across supply chain and point-of-sale environments.

Key Features

• 203 DPI Print Resolution: Produces clear, scannable output on thermal media without requiring high-resolution capabilities; ideal for barcode, text, and graphics printing in warehouse and logistics settings
• MX240P Compatibility: Direct replacement assembly for TSC MX240P printer systems, ensuring seamless integration within existing printer platforms
• Wired Connectivity: Connects via hardwired interface to the printer host, eliminating wireless configuration complexity and ensuring reliable data transmission
• LCD Display Interface: Built-in display provides real-time operational status, error reporting, and print job confirmation
• Thermal Print Technology: Supports both direct thermal and thermal transfer printing methods depending on printer firmware and media configuration
• Durable Print Head Design: Industrial-grade print mechanism rated for continuous-duty label production in high-volume distribution centers and manufacturing facilities

Integration and Deployment

The 98-0510076-00LF is a field-replaceable component designed for technicians and maintenance personnel. Installation requires disconnecting the existing mechanism from the MX240P printer chassis and attaching the replacement assembly, followed by firmware re-initialization. No external drivers or software installation is required beyond standard MX240P printer management utilities. The mechanism supports standard thermal label media widths compatible with the MX240P printer frame, and print speed performance is determined by the host printer controller and thermal transfer ribbon or direct thermal media selected.

This component is commonly ordered as part of preventive maintenance programs, warranty replacement scenarios, or when upgrading existing MX240P units to restore print quality after extended service cycles. Integrators should verify firmware version compatibility with TSC technical documentation before ordering replacement assemblies.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the TSC 98-0510076-00LF print mechanism during a warehouse label printer refresh project. This replacement assembly is a straightforward spare part designed for MX240P users who need to restore print quality or replace a worn mechanism. The 203 dpi specification is well-suited for standard barcode and shipping label applications where ultra-high resolution is not required.

Technical Highlights:

• 203 DPI Print Resolution: Produces output quality appropriate for GS1-128, Code 128, QR codes, and text-heavy labels without over-engineering the print engine for applications that do not require 300+ dpi
• Wired Integration: Direct electrical connection to the MX240P printer controller eliminates configuration overhead and simplifies field replacement procedures

Deployment Considerations:

• This is a replacement component—not a standalone printer. Ensure MX240P printer frame and controller are functional before ordering this assembly
• Coordinate with TSC technical support to confirm firmware compatibility and obtain calibration procedures specific to your printer serial number and production date

The 98-0510076-00LF is a reliable spare part for ongoing MX240P operations. For distributors managing fleet inventory or warranty stock, I recommend maintaining one or two units per 10–15 active MX240P printers to support 3–5 year service cycles.
