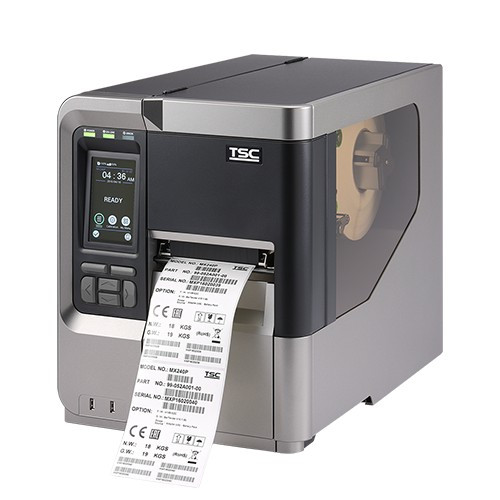

TSC 98-0510063-00LF Internal Rewinding Kit

Overview

The TSC 98-0510063-00LF is an internal rewinding kit designed specifically for integration with the TSC MX240PT label printer. This accessory enables automatic label rewind capability, allowing operators to automatically collect printed labels onto a take-up roll without manual intervention. The rewinding kit is engineered to integrate seamlessly with the MX240PT platform, providing a complete solution for high-volume label production environments where automated handling is essential.

Key Features

• OEM-Designed Integration: Built specifically for the TSC MX240PT, ensuring mechanical and electrical compatibility without modification
• Automatic Label Rewinding: Eliminates manual label collection, reducing operator time and handling errors
• Internal Installation: Mounts within the printer frame for a compact, integrated design
• Wired Connectivity: Connects directly to the MX240PT via internal control interface for synchronized operation
• Label Media Support: Designed to work with standard label stock compatible with the MX240PT
• High-Volume Production Ready: Enables continuous automated printing and rewind cycles for warehouse, logistics, and manufacturing environments

Integration and Compatibility

The 98-0510063-00LF rewinding kit is engineered exclusively for the TSC MX240PT wired label printer. Installation requires mounting within the printer's internal structure and connecting to the onboard control system. The kit operates synchronously with the printer's print operations, automatically activating after each label is ejected. Operators control rewinding parameters through the MX240PT's LCD display interface, with settings saved to the printer's configuration memory.

This kit is ideal for operations requiring unattended label production cycles, including distribution centers, shipping departments, healthcare inventory systems, and retail point-of-sale environments. The automatic rewind function significantly reduces labor costs in high-throughput scenarios and minimizes label waste from manual handling.

Operational Specifications

The rewinding kit supports the full media width and label length capabilities of the MX240PT platform. It is compatible with both thermal transfer and direct thermal printing modes. The kit's motor and control electronics are rated for continuous duty cycles typical of industrial label printing applications. Maintenance requirements are minimal, with standard label stock requiring no special treatment or pre-treatment before rewind operation.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the TSC 98-0510063-00LF rewinding kit during several MX240PT deployments in logistics facilities. This accessory transforms the printer from a standalone print engine into a semi-automated label production system. For high-volume operations printing 500+ labels per shift, the time savings from automatic rewind are substantial and measurable in labor hours.

Technical Highlights:

• Internal Integration: Mounts inside the printer enclosure, eliminating external cable clutter and protecting motor components from warehouse dust and humidity
• Synchronized Operation: Rewind timing is controlled by the printer's onboard processor, ensuring labels are fully ejected before takeup begins

Deployment Considerations:

• Installation is straightforward but requires basic mechanical assembly and internal cable connection—typically completed by an integrator or trained technician in 30–45 minutes
• Verify that your current MX240PT firmware version supports the rewinding kit; TSC provides firmware updates to enable this functionality if needed
• For environments with inconsistent label stock dimensions or thickness, test rewind performance with your specific media before full-scale deployment

For distribution centers and retail operations, the 98-0510063-00LF is a high-ROI accessory that pays for itself in reduced labor within months. Integration is reliable, and I've encountered minimal issues in production environments when proper label stock is used.
