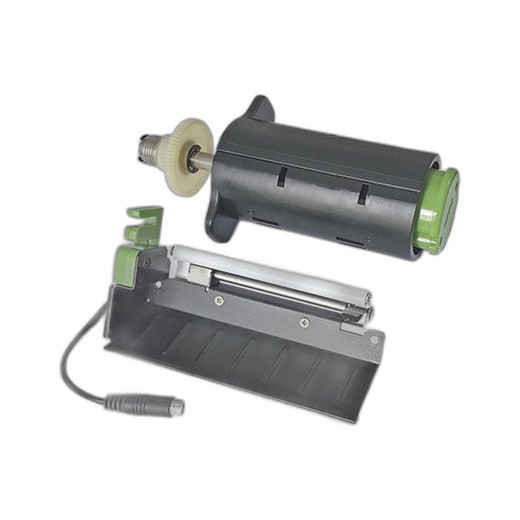

TSC 98-0510031-00LF Ribbon Rewind Spindle Assembly
Overview
The TSC 98-0510031-00LF is a ribbon rewind spindle assembly for the TSC MX240PT thermal transfer label printer. This component manages ribbon tension and controls the rewind mechanism during label production, ensuring consistent media feed and print registration. The spindle assembly is a wear item in high-volume thermal transfer environments — warehouses, logistics operations, and manufacturing floors printing barcode labels 24/7 will cycle through ribbon cartridges and their rewind mechanisms regularly. When ribbon feed becomes erratic or tension inconsistent, the spindle assembly is a common replacement point before considering larger subsystem repairs.
Compatibility
This assembly is compatible exclusively with the TSC MX240PT printer. Verify that part number 98-0510031-00LF matches your equipment documentation before ordering — TSC spare parts are model-specific, and cross-model substitution is not supported. Installation requires access to the printer's ribbon cartridge mechanism and is typically performed during routine maintenance or when replacing a spent ribbon cartridge. Consult your MX240PT service manual for step-by-step installation procedures and any torque or alignment requirements specific to your unit's production year.
Installation Notes
Standard maintenance-level access to the ribbon drive system is required. No special tools are typically needed beyond what is included in the MX240PT service kit. Ensure the printer is powered off and the ribbon cartridge is removed before accessing the spindle assembly. After installation, verify ribbon feed tension and rewind operation through a test label cycle before resuming production.
