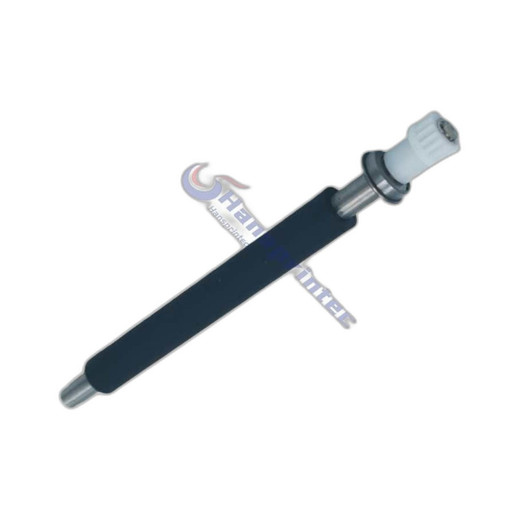

TSC 98-0510010-00LF MX Platen Roller Assembly
The TSC 98-0510010-00LF is a replacement platen roller assembly designed for TSC MX series thermal label printers. This component is essential for maintaining consistent label output quality and reliable media advancement in high-volume label printing environments. The platen roller works in conjunction with the printer's feed mechanism to ensure precise media positioning and uniform print contact across the full print width.
Overview
As a critical consumable component, the platen roller assembly (98-0510010-00LF) requires periodic replacement to sustain print quality and prevent media jams or misfeeds. The MX series supports both direct thermal and thermal transfer printing modes, making this assembly compatible with a wide range of label materials and ribbon configurations. The roller's design accommodates the printer's label media handling system, allowing seamless integration during routine maintenance cycles.
Key Features
- OEM replacement part for TSC MX series label printers
- Compatible with direct thermal and thermal transfer printing
- Supports label media processing with consistent feed accuracy
- Designed for high-volume printing environments
- Drop-in replacement — no firmware or configuration changes required
- Maintains print registration and media advancement reliability
Application & Compatibility
The 98-0510010-00LF platen roller assembly is engineered for TSC MX series thermal printers commonly deployed in logistics, warehouse management, retail label operations, and shipping/fulfillment environments. The assembly ensures reliable media feed across standard label widths and is compatible with continuous roll and fanfold label stock. Replacement intervals depend on print volume and media type; facilities printing more than 500,000 labels monthly should maintain spare assemblies on hand to minimize downtime.
Media Handling
This platen roller assembly accommodates the mechanical requirements of the MX printer's media path. It works with the printer's feed motor and advance mechanism to deliver precise label spacing and registration. The roller surface is engineered to provide adequate grip and wear resistance across typical label stock materials, including coated and uncoated papers, synthetic films, and specialty media used in demanding environments.
Proper platen roller maintenance extends overall printer reliability. Operators should inspect the assembly during routine cleanings and replace it when visible wear, flat spots, or reduced grip are observed. Installation is straightforward — no specialized tools or technical expertise beyond basic printer disassembly is required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the TSC 98-0510010-00LF platen roller assembly during multiple MX series printer deployments in high-volume fulfillment operations. This is a straightforward but mission-critical component — when it wears, print quality and feed reliability degrade rapidly. Keeping spares on hand is standard practice for any facility running more than a few MX printers continuously.
Technical Highlights:
- OEM Design: Direct replacement part engineered to TSC specifications; ensures no compatibility guesswork.
- Media Compatibility: Works reliably across direct thermal, thermal transfer, standard labels, and specialty stocks common in warehouse and logistics environments.
- Feed Reliability: Proper roller condition is essential for preventing label jams and maintaining registration in multi-label print jobs.
Deployment Considerations:
- Monitor for wear during routine cleaning cycles — flat spots or hardening reduce grip and cause feed misalignment.
- Replacement is a 10–15 minute procedure requiring only basic disassembly; no recalibration needed after installation.
- High-volume sites should maintain at least one spare to avoid unplanned downtime during shift operations.
The 98-0510010-00LF is a consumable part — budgeting for periodic replacement is part of total cost of ownership for MX series deployments. Stock it alongside your standard ribbon and cleaning supply inventory.
