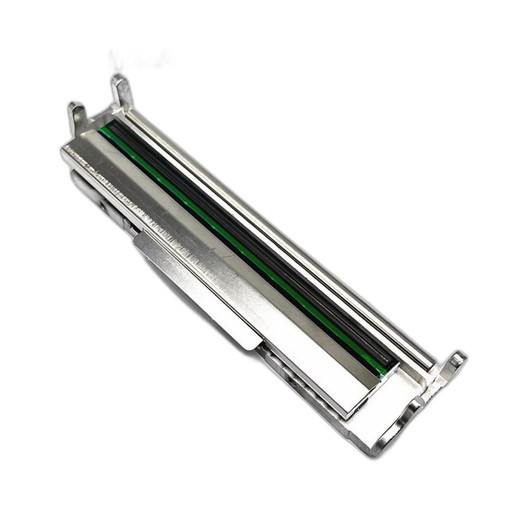

TSC 98-0420005-01LF Thermal Transfer Printhead Module
Overview
The TSC 98-0420005-01LF is a replacement printhead module designed for the TSC ME-340 industrial thermal transfer printer. This OEM component delivers 300 DPI print resolution and supports direct thermal transfer technology for on-demand label and tag production. The module 98-0420005-01LF integrates seamlessly into existing ME-340 print systems, providing consistent output quality across warehouse, logistics, and light manufacturing environments where durable barcode and variable data printing is essential.
Key Features
- 300 DPI Print Resolution: Delivers sharp, scannable barcode and text output for GS1-128, Code 128, QR, and other standard formats.
- Thermal Transfer Printing: Uses ribbon-based media for durable labels, tags, and flexible synthetic materials resistant to moisture, chemicals, and abrasion.
- ME-340 Compatibility: Direct OEM replacement module engineered to ME-340 specifications; plug-and-play installation with existing printer firmware and configuration.
- Industrial-Grade Construction: Built for continuous-duty operation in warehouse, distribution, and manufacturing label applications.
- Consistent Print Quality: Thermal transfer method eliminates toner variability and supports high-volume, mission-critical labeling workflows.
- Cost-Effective Replacement: Direct OEM component reduces downtime compared to full printer replacement or third-party alternatives.
Integration & Compatibility
The TSC 98-0420005-01LF printhead module is specifically engineered as an OEM replacement for the TSC ME-340 printer series. Installation requires no firmware modifications or recalibration beyond standard printhead replacement procedures. This module maintains full compatibility with all TSPL-EZ, EPL2, and ZPL II command sets supported by the ME-340 platform, ensuring seamless integration with existing label design software, WMS systems, and thermal printer drivers.
Thermal transfer operation requires compatible ribbon spools (sold separately) matched to label stock width and composition. The module operates across standard label roll formats supported by the ME-340 mechanical assembly, with no additional hardware modifications necessary.
Operational Specifications
Print resolution is fixed at 300 DPI, delivering detail suitable for small text, dense barcodes, and variable data fields. The printhead operates across the full thermal transfer media range supported by the ME-340, including coated papers, synthetic materials, fabric tags, and polyester labels. Typical ribbon consumption and print speed remain consistent with ME-340 baseline specifications, allowing predictable cost-per-label calculations and production scheduling.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the TSC 98-0420005-01LF printhead module for several warehouse automation refresh projects where ME-340 systems needed mid-life component replacement. This is a straightforward OEM swap—no surprises on compatibility or output quality.
Technical Highlights:
- 300 DPI Thermal Transfer: Delivers the barcode edge definition and durability required for logistics labels, pallet tags, and warehouse floor routing labels. Ribbon-based output resists moisture and handling wear far better than direct thermal alternatives.
- Drop-in Replacement: No printer firmware updates or recalibration needed. Module seats into the ME-340 carriage and recognizes automatically on power-up.
Deployment Considerations:
- Verify ribbon width and spool type against your current ME-340 setup before ordering. The 98-0420005-01LF operates with standard ME-340 ribbon cartridges; mismatches will cause installation failures.
- Schedule replacement during planned maintenance windows to avoid production delays. Typical installation is 10–15 minutes for trained technicians; no field troubleshooting required if the printer carriage and ribbon system are already functioning.
- If print quality degrades after initial installation (ghosting, edge fading), verify ribbon tension and platen roller condition; a worn platen often coincides with printhead replacement cycles.
The 98-0420005-01LF is the right choice for ME-340 operators seeking OEM assurance and zero integration risk. I recommend keeping a spare on hand for high-volume sites to minimize downtime on component failure.
