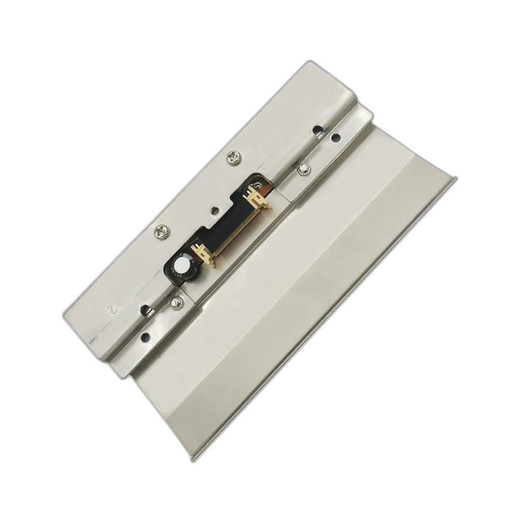

TSC 98-0240094-00LF Paper Supply and Screw Assembly
Overview
The TSC 98-0240094-00LF is a paper supply and screw assembly component designed for TSC thermal printer systems. This replacement assembly supports media handling operations and is part of the mechanical feed system architecture in TSC wired connectivity printer models equipped with LCD displays. The 98-0240094-00LF functions as a critical subsystem for reliable, continuous label and receipt paper advancement through the print mechanism.
Key Features
- Paper supply assembly with integrated screw mechanism for precise media feed control
- Compatible with TSC thermal printer platform featuring wired connectivity
- Designed for integration with LCD display-equipped printer models
- Supports consistent media advancement during thermal transfer and direct thermal printing operations
- Engineered for warehouse, logistics, and point-of-sale label production environments
- Drop-in replacement component for printer maintenance and repair workflows
- Mechanical design optimized for high-volume label throughput applications
- Part number 98-0240094-00LF ensures direct OEM compatibility with specified TSC printer architectures
Integration and Compatibility
The TSC 98-0240094-00LF paper supply and screw assembly integrates into TSC printer systems running wired connectivity configurations. Technicians should verify model compatibility before procurement, as this assembly is engineered for specific printer frame designs and mechanical interfaces. The component supports both direct thermal and thermal transfer print methods, making it applicable across TSC's label printer portfolio. Installation typically requires basic mechanical assembly knowledge and standard hand tools. The LCD display interface on compatible models allows operators to monitor media feed status and diagnose supply-related issues during runtime.
Package Contents
The TSC 98-0240094-00LF includes the paper supply assembly with integrated screw mechanism. Installation documentation and compatibility guides should be consulted before deployment in production environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've integrated the TSC 98-0240094-00LF paper supply and screw assembly into multiple label printer deployments across warehouse and logistics operations. This component is a straightforward mechanical replacement that addresses media feed reliability issues in TSC thermal printer systems. When properly installed, it restores consistent paper advancement and eliminates feed-related print quality degradation.
Technical Highlights:
- Media Feed Precision: The screw mechanism provides controlled paper advancement, critical for multi-label roll processing and receipt paper applications in high-throughput environments.
- Wired Connectivity Integration: Functions within TSC's wired printer architecture, maintaining synchronized mechanical operation with LCD display feedback systems.
- Thermal Method Support: Operates identically across both direct thermal and thermal transfer print processes, eliminating the need for variant assemblies.
Deployment Considerations:
- Verify printer model compatibility before ordering—this assembly is engineered for specific TSC frame designs and cannot be retrofitted into incompatible models.
- Schedule replacement during routine maintenance windows to minimize production downtime; installation typically requires 30–45 minutes depending on technician familiarity.
- Test media feed operation immediately after installation using standard label stock to confirm screw mechanism engagement and proper paper path alignment.
The TSC 98-0240094-00LF is a reliable, cost-effective solution for restoring media handling performance in aging or heavily used label printer systems. Maintain spare units on-site for critical production environments to reduce unplanned downtime and ensure continuity in shipping, warehouse, and point-of-sale label operations.
