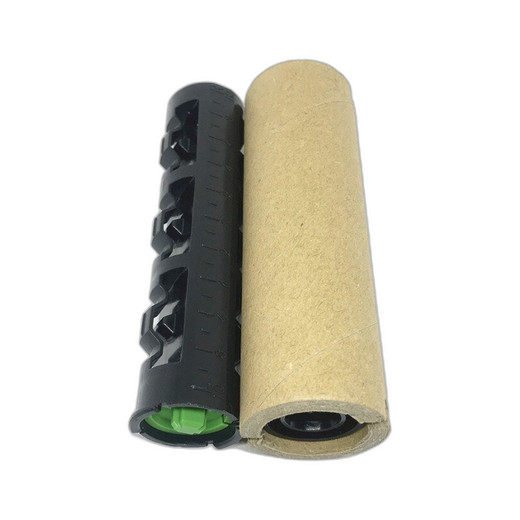

TSC 98-0240023-10LF Ribbon Supply Spindle Assembly
Overview
The TSC 98-0240023-10LF is a ribbon supply spindle assembly engineered for the TSC TTP-2410M thermal transfer printer. This component manages ribbon feed, maintains consistent tension during print cycles, and ensures proper ribbon tracking across the print head. Install this assembly when the original spindle shows wear, misalignment, or ribbon slack that degrades print quality or causes ribbon wrinkles. The 2410M spindle is a field-replaceable item in routine maintenance schedules for high-volume label operations.
Compatibility
This spindle assembly is designed exclusively for the TSC TTP-2410M thermal transfer printer. The TTP-2410M is a desktop-class thermal transfer system commonly deployed in warehouse, logistics, and manufacturing environments for label production at speeds up to 10 inches per second. Verify your printer model matches TTP-2410M before ordering — incompatible spindle assemblies will not seat correctly in the ribbon mechanism and cannot be forced.
Installation Notes
Replacement requires access to the ribbon supply housing on the printer's left side. Disengage the current spindle by releasing the spindle shaft clips, remove the exhausted ribbon core, and slide the new 98-0240023-10LF spindle assembly onto the shaft until it clicks into place. Ensure the spindle rotates freely and the ribbon feeds straight across the print head without edge contact. No tools beyond hand pressure are required. Allow the printer to run a short test cycle to confirm ribbon tension and alignment before returning to production.
