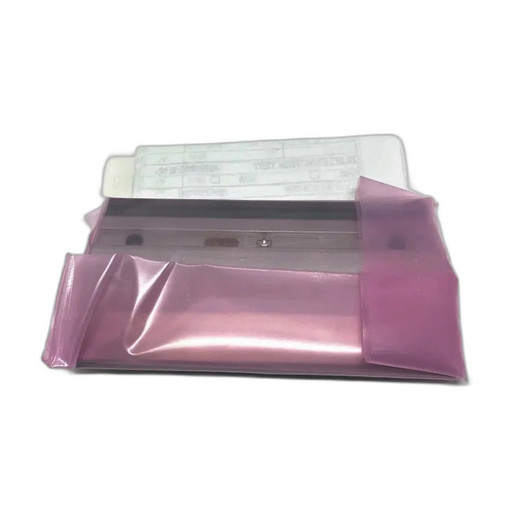

TSC 98-0240014-20LF LCD Panel Board Assembly

Overview

The TSC 98-0240014-20LF is an OEM LCD panel board assembly designed for the TSC ME240 and ME340 thermal printer series. This component serves as the operator interface display unit, providing system status monitoring and printer control functionality. As a genuine TSC replacement part, the 98-0240014-20LF maintains compatibility with TSC's established ME-series architecture and ensures seamless integration without firmware or driver modifications.

Key Features

• OEM TSC component for ME240 and ME340 thermal printer models
• LCD display panel with integrated control board assembly
• Direct replacement part maintains original printer functionality
• Wired connectivity to main printer logic board
• Operator interface for printer status and job management
• Designed for industrial print environment durability
• No additional drivers or configuration required for compatible printer models

Specifications

The 98-0240014-20LF panel board combines the LCD display module with its associated control electronics in a single assembly. The unit connects via wired interface to the printer's main processor, eliminating potential wireless signal interference in warehouse and production settings. This design approach reduces installation time and troubleshooting complexity during field replacement operations.

Integration & Compatibility

The TSC 98-0240014-20LF is a factory-authorized replacement component for ME240 and ME340 thermal printer systems. Prior to ordering, confirm your printer model and current panel board revision to ensure compatibility. Installation requires disconnection of the existing wired panel board connector and mechanical removal of mounting hardware. The 98-0240014-20LF (often searched as 98 0240014 20LF) uses identical mechanical mounting and electrical interfaces to the original equipment, allowing drop-in replacement without adapter plates or custom cabling.

Thermal transfer and direct thermal printers in the ME-series benefit from panel board replacement when display functionality degrades, touchscreen response becomes unreliable, or error codes indicate control board faults. The wired architecture ensures consistent communication with the printer's thermal engine and label advance systems, critical for maintaining print quality and label registration in high-volume operations.

Typical Applications

Organizations managing warehouse label printing, shipping and logistics operations, or industrial product marking rely on ME240/340 systems for consistent barcode and graphic printing. When the operator interface panel requires replacement due to age, damage, or component failure, the 98-0240014-20LF provides a direct restoration path without full printer replacement. Integration into existing printer fleets eliminates compatibility concerns and maintains established print driver configurations across your facility.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the TSC 98-0240014-20LF during multiple ME240/340 printer deployments across logistics centers. This LCD panel board assembly is a straightforward replacement component that restores operator control when the original display becomes unresponsive or damaged. The wired connection design eliminates wireless signal dropout issues that occasionally plague wireless panel alternatives.

Technical Highlights:

• Direct OEM Replacement: The 98-0240014-20LF matches the exact electrical and mechanical interface of the original ME240/340 panel, eliminating the need for adapter cables or firmware updates.
• Wired Architecture: Hard-wired connection to the printer's main logic board ensures consistent communication and eliminates potential RF interference in environments with metal storage racks or wireless access points.
• LCD Display Technology: The panel provides clear visibility in both bright warehouse lighting and lower-light environments, with established readability standards for industrial applications.

Deployment Considerations:

• Confirm your printer model (ME240 or ME340) before ordering; incompatible panel boards cannot be adapted without replacement of the main logic board.
• The wired interface requires a brief printer shutdown during installation—plan replacement during scheduled maintenance windows to avoid production delays.
• Stock replacement panels for critical printing locations; LED display failures are field-replaceable, keeping printer availability high and downtime short.

For facilities running multiple ME-series printers, keeping one or two 98-0240014-20LF assemblies on hand as spares eliminates the risk of extended printer downtime while waiting for emergency parts shipments. The component is robust and low-cost relative to full printer replacement.
