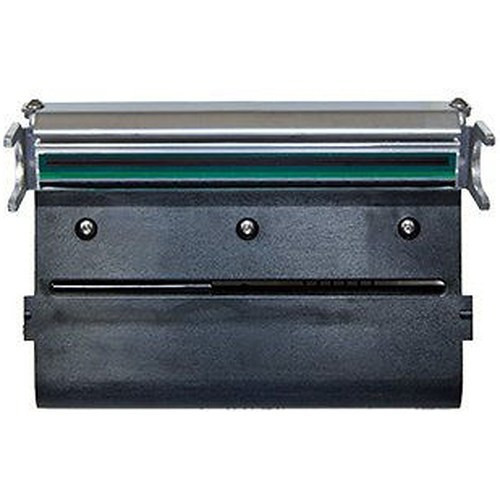

TSC 258704-002 300 DPI Printhead Assembly for T8304
Overview
The TSC 258704-002 is a 300 DPI thermal printhead assembly engineered as a direct replacement component for the TSC T8304 industrial label printer. This is a thermal printhead element—not a full printer—and it handles the core print function: transferring heat-activated ink from ribbon to label stock. At 300 DPI (dots per inch), it delivers the print density required for legible barcodes, readable text, and consistent image reproduction across warehouse, logistics, and supply-chain labeling operations. When thermal printheads wear out (typically after 1–3 million inches of print), print quality degrades: banding, missing dots, or uneven darkness. The 258704-002 restores that output. This is a label printer spare part, not an accessory—it's consumable maintenance that extends equipment life and keeps label production moving.
Key Features
- 300 DPI Resolution: Prints at 300 dots per inch, the standard for industrial barcode and label work. Higher than 203 DPI (common on entry-level units), 300 DPI ensures barcodes scan reliably and text remains crisp even on small labels—critical when a misread label means a shipping delay or inventory error.
- Direct T8304 Compatibility: Designed specifically for the TSC T8304 label printer. Integrates into the existing print mechanism without adapter plates or firmware changes. If you run a T8304 fleet, you know the form factor and mounting—no guesswork on install.
- Thermal Printhead Type: Thermal-transfer technology (as opposed to direct thermal) works with ribbon media, giving you flexibility on label materials—glossy, matte, synthetic, polyester—because the ribbon carries the ink, not the label stock itself. This matters if you print variable-data labels or need archival durability.
- OEM-Sourced Component: This is the genuine TSC part number 258704-002 (often searched as 258704 002). Not a clone or third-party rebuild. OEM parts typically carry a performance guarantee and are tested to the original spec.
- Standard Maintenance Installation: Replacement requires standard maintenance access to the T8304's print mechanism—typically a matter of opening the top cover, disengaging the old printhead, and sliding the new one into the carriage. Most warehouse technicians can swap this in 10–15 minutes with minimal downtime. No special tools required beyond what your facility likely has on hand.
- Extends Equipment Life: A new printhead costs far less than a new printer. If your T8304 is otherwise healthy, a 258704-002 printhead refresh keeps it in service another 1–3 million inches of printing. For high-volume shipping or manufacturing environments, that translates to real cost savings and predictable maintenance cycles.
Integration & Compatibility
This printhead integrates with the TSC T8304 label printer system only. Installation is straightforward: the 258704-002 slides into the T8304's print carriage and locks in place. No firmware updates, driver changes, or recalibration are needed—the printer recognizes the new printhead immediately. Typical deployment involves keeping one spare 258704-002 on hand so that when the active printhead wears out, you can swap it without waiting for delivery. Warehouses and fulfillment centers often maintain a stock of 1–2 spares per 3–5 printers to guarantee uptime during peak seasons.
When to Choose a Different Component
If your T8304 has suffered physical damage to the carriage or heating elements (not the printhead itself), a new printhead alone won't restore function—you'll need to inspect the underlying print mechanism or contact TSC service. Conversely, if you're evaluating a new label printer purchase and want higher resolution, TSC manufactures 600 DPI printhead options for some models in their industrial line, though those require a compatible printer frame. Stick with the 258704-002 only if you operate a T8304; cross-family compatibility is not supported.
Deployment Context
The 258704-002 is essential spare inventory for any organization running TSC T8304 printers at scale—shipping centers, distribution hubs, manufacturing floors with barcode-intensive workflows. Thermal printheads degrade predictably. By stocking this part, you avoid the scenario where a single worn printhead brings label production to a halt for 2–3 days while waiting for delivery. A proactive maintenance program (track print volume, swap at 2.5–3 million inches) keeps downtime minimal and label quality consistent.
Frequently Asked Questions
Q: How do I know when the 258704-002 printhead needs replacement?
A: Watch for banding (vertical lines), missing dots in barcodes or text, uneven darkness across the label, or streaks. If cleaning the existing printhead doesn't restore quality, replacement is the next step. Most operators replace every 1–3 million inches of print, depending on label material and environment.
Q: Is the TSC 258704-002 compatible with any printer other than the T8304?
A: No. This printhead is engineered specifically for the T8304. Attempting to install it in a different TSC model or non-TSC printer will result in mechanical misalignment and failure to operate.
Q: What's the typical warranty or guarantee on this printhead?
A: The 258704-002 comes as a genuine OEM part and carries standard manufacturer warranty. Consult the product datasheet or your supplier's terms for specific warranty duration.
Q: Does installation require special tools or factory service?
A: No. Replacement is a standard maintenance task requiring only basic hand tools and access to the printer's top cover. Your internal warehouse or IT team can perform the swap. No factory reset or firmware update is needed.
Q: How many printheads should I keep in stock?
A: As a rule, maintain 1 spare printhead per 3–5 printers in your fleet. For high-volume operations, 1 spare per 2–3 printers ensures you always have a backup during swaps or unexpected wear-out.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TSC 258704-002 is exactly what you need if you're running T8304 printers at production speed. Thermal printheads have a finite lifespan—typically 1–3 million inches depending on label stock and environment. When yours starts showing banding or missing dots at 300 DPI, a new printhead is the straightforward fix. OEM parts like the 258704-002 are your safest bet: no compatibility guesswork, no return surprises, and they integrate immediately without firmware or mechanical adjustments.
Technical Highlights:
- 300 DPI Density: At this resolution, barcodes remain scannable even on small labels (think 2×3" shipping stickers). You won't need to reprint because a barcode scanner couldn't read soft or misaligned dots.
- Direct T8304 Integration: The 258704-002 is engineered for this specific printer model. The carriage, heat-press pressure, and timing are all matched to the T8304 frame. Plug-and-play—no adapter plates or calibration workarounds.
- Thermal-Transfer Ribbon Compatibility: Works with ribbon media, not direct-thermal stock. This gives you material flexibility: glossy labels, synthetic polyester, even high-temperature resistant media for industrial use. Direct-thermal printers are locked to heat-sensitive label stock only.
Deployment Considerations:
- Plan your replacement cycle: track print volume and swap at roughly 2.5–3 million inches to catch wear before quality crashes. Waiting until banding is obvious means reprinting a backlog of already-shipped labels.
- Stock spares strategically. One printhead per 3–5 printers keeps you covered during maintenance windows. A worn-out printhead with no spare on hand can halt shipping operations for 48+ hours.
The 258704-002 is the right call for any operation using TSC T8304 equipment—warehouses, fulfillment centers, distribution hubs. It's not a features upgrade; it's preventive maintenance that costs far less than a new printer and takes 15 minutes to install.
