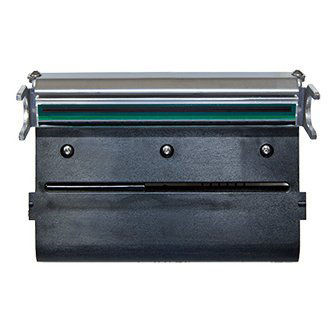

TSC 251243-001 Printhead 4" 203DPI Thermal Transfer
The TSC 251243-001 is a replacement printhead assembly engineered for the TSC T5204e thermal transfer label printer. This component delivers 203 DPI resolution across a 4-inch print width, making it the correct choice for high-volume warehouse, logistics, and manufacturing label operations where print durability and barcode scannability are non-negotiable.
Overview
Thermal transfer printing—where the printhead transfers heat-activated ink from ribbon to label stock—produces labels resistant to fading, smudging, moisture, oils, and abrasion. Unlike direct thermal printing, thermal transfer output survives exposure to sunlight, temperature swings, and chemical handling, which is why it remains standard in cold-chain logistics, hazmat labeling, and outdoor asset tracking. The 251243-001 works in tandem with thermal transfer ribbon and integrates directly into the T5204e carriage assembly without firmware updates or recalibration.
Key Features
- 203 DPI Print Resolution: Produces sharp, scannable barcodes and readable small text on label surfaces—a sweet spot for standard barcode symbologies (Code 128, UPC, QR) where higher resolution (300+ DPI) adds cost and complexity without real scanning benefit in most warehouse applications.
- 4-Inch Print Width: Matches the vast majority of label stock used in 3PL, e-commerce fulfillment, and retail distribution centers. Wider formats exist (6-inch), but 4-inch eliminates label waste and reduces ribbon consumption per label.
- Thermal Transfer Technology: Ink-on-ribbon method ensures labels withstand moisture, temperature extremes, and chemical exposure far longer than direct thermal alternatives—critical for multi-month shelf life or outdoor asset labels.
- T5204e Direct Compatibility: Designed as a drop-in replacement for TSC T5204e printers. Installation requires powering down, accessing the printhead carriage, and following TSC's standard swap procedure—no proprietary tools needed.
- Industrial-Grade Construction: Built for continuous operation in high-volume production cycles. Organizations running 1000+ labels per shift should maintain spare printheads in inventory to minimize downtime during routine maintenance or unexpected component failure.
- Wired Network and USB Support: The 251243-001 integrates with the T5204e's native connectivity options—Ethernet or USB—requiring no adapter or special cabling configuration.
Integration & Compatibility
The 251243-001 functions as a direct replacement for the OEM printhead in TSC T5204e systems. Upon installation, the printhead automatically recognizes the T5204e's firmware and label sensor calibration—no driver updates, firmware flashing, or recalibration steps are required. The component maintains full compatibility with standard thermal transfer ribbon (wax, wax-resin, or resin formulations) and all label stock certified for the T5204e platform.
Organizations standardized on thermal label printers should verify that the T5204e is the correct platform before ordering the 251243-001. If your deployment uses a different TSC model (MA, MA2, or TE series), this printhead will not fit and a different part number is required.
When to Choose a Different Model
If your labels require 300+ DPI resolution for very small fonts, QR codes smaller than 0.5 inches, or microscopic barcodes, a higher-resolution printhead variant in the same T5204e family may be necessary. Conversely, if you are still operating direct thermal printers (no ribbon), the 251243-001 is not applicable—direct thermal printheads use a different assembly. For multi-function printing or RFID encoding, TSC offers alternative printer models not in the T5204e line.
Thermal Transfer Label Longevity
Thermal transfer labels produced by the 251243-001 resist scratching, moisture, temperature swings (-10°C to +50°C typical warehouse range), and mild chemical exposure—important for cold-chain shipments, outdoor asset tags, or labels subjected to handling in wet or dusty environments. The 203 DPI output balances barcode quality against throughput; scanning success rates at 203 DPI exceed 99% for standard 1D symbologies when label stock is clean and printer maintenance is routine.
Maintenance and Spare Parts Planning
Printheads are consumable components with typical duty cycles of 1–3 million thermal images before gradual output degradation (fading or missing pixels). In high-volume operations (500+ labels per 8-hour shift), plan for printhead replacement every 12–18 months. TSC recommends cleaning the printhead every 500,000 labels using isopropyl alcohol and lint-free wipes—a five-minute procedure that extends component life and prevents ribbon debris accumulation. Stock the 251243-001 (often searched as 251243 001) alongside thermal transfer ribbon to avoid single-point outages during scheduled maintenance windows.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the TSC 251243-001 printhead across multiple 3PL and cold-chain operations where label durability and barcode scannability determine whether shipments move or get held at the dock. The 203 DPI thermal transfer output from this component consistently meets industry scanning standards without over-engineering resolution at the cost of ribbon and maintenance.
Technical Highlights:
- 203 DPI Thermal Transfer Resolution: Produces barcode output scannable at 12+ inches without degradation—sufficient for standard 1D/2D codes on 4-inch label formats without the cost and throughput penalty of 300 DPI.
- 4-Inch Print Width Standardization: Matches 90% of label stock in logistics and e-commerce use. Switching to 6-inch width requires different label blanks and ribbon widths, adding supply-chain complexity.
- Thermal Transfer Ink-on-Ribbon Durability: Labels survive moisture, temperature cycling, and abrasion far better than direct thermal output—a real factor when labels sit in freezer trucks or outdoor storage for weeks.
- T5204e Platform Compatibility: Drop-in replacement with zero firmware or configuration overhead. If your printer is a different TSC model, verify the part number before ordering.
Deployment Considerations:
- Maintenance Schedule: Plan printhead cleaning every 500,000 labels and replacement every 12–18 months in high-volume operations. Dust accumulation from label backing or ribbon fibers is the primary failure mode.
- Spare Parts Inventory: Keep at least one spare 251243-001 in stock alongside thermal transfer ribbon. Printhead failure halts all label production on that printer—no graceful degradation.
- Ribbon Formulation Compatibility: The 251243-001 works with wax, wax-resin, and resin ribbon. Verify your ribbon matches the label stock hardness (wax for paper, resin for synthetic) to avoid printhead build-up.
Deploy the 251243-001 in warehouses, fulfillment centers, and manufacturing environments running T5204e printers where labels must survive multi-week shelf life, cold-chain exposure, or outdoor asset tracking. If labels are scanned immediately and discarded (e.g., internal pick slips), direct thermal printers may be more cost-effective—but for any label that travels beyond the warehouse, thermal transfer is the only practical choice.
Frequently Asked Questions
Q: Is the TSC 251243-001 compatible with printers other than the T5204e?
A: No. The 251243-001 is engineered specifically for the T5204e thermal transfer printer. Other TSC models (MA, MA2, TE series) use different printhead assemblies. Verify your printer model before ordering.
Q: How long does a replacement printhead typically last?
A: In high-volume operations (500+ labels per shift), the 251243-001 delivers approximately 1–3 million thermal images before gradual output degradation becomes visible. Plan for replacement every 12–18 months depending on usage intensity.
Q: Can I clean the printhead to extend its life?
A: Yes. TSC recommends cleaning the printhead every 500,000 labels using isopropyl alcohol and lint-free wipes. This removes ribbon debris and label backing dust, preventing build-up that degrades output quality and reduces component lifespan.
Q: Does the 251243-001 require driver installation or firmware updates?
A: No. The printhead is a direct replacement that integrates with the T5204e's existing firmware and label sensor calibration. Installation is purely mechanical—no software configuration is needed.
Q: What thermal transfer ribbon types work with the 251243-001?
A: The printhead supports wax, wax-resin, and resin ribbon formulations. Match the ribbon type to your label stock (wax for paper labels, wax-resin or resin for synthetic materials) to avoid build-up on the printhead.
Q: Is the 203 DPI resolution sufficient for small barcodes or QR codes?
A: 203 DPI is the industry standard for barcode labels and produces sharp, scannable output at sizes commonly used in logistics (1D Code 128 barcodes, standard 2D QR codes). For very small fonts or microscopic codes, higher-resolution variants may be required.
