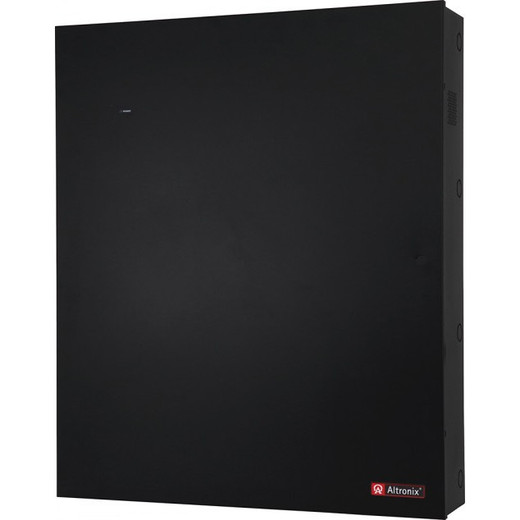

Altronix T3SSK75F28V Power Distribution Cabinet
Overview
The Altronix T3SSK75F28V is a 220VAC input power distribution cabinet designed to provide reliable, fused power to surveillance systems. It offers dual 24VDC and 12VDC outputs, each rated for 10A total, with integrated battery backup supporting a 12VDC/12AH battery. This unit is suitable for installations requiring centralized power management and backup for multiple devices, such as in commercial security deployments or warehouse automation systems. The T3SSK75F28V provides a robust power solution for demanding environments.
Compatibility
This power distribution cabinet is designed to power a wide range of low-voltage DC surveillance equipment. It is compatible with devices requiring 24VDC or 12VDC input, provided the total current draw does not exceed the 10A limit for each output rail. The integrated battery backup ensures continuous operation during power outages, making it suitable for critical infrastructure and applications where uptime is paramount. It is designed for use with standard 12VDC/12AH sealed lead-acid batteries.
Installation Notes
The unit requires a 220VAC input supply. It features individual fused outputs for each 24VDC and 12VDC rail, allowing for circuit protection and isolation. The enclosure dimensions are 36.12" x 30.125" x 7.06", requiring significant mounting space. Operating temperature range is 0ºC to 49ºC, with storage temperatures from -20ºC to 70ºC. Relative humidity should not exceed 85% non-condensing. The unit is CE European Conformity listed.
What's in the Box
- 1x Altronix T3SSK75F28V Power Distribution Cabinet
- 1x Mounting Hardware Kit
- 1x Installation Manual
